Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration.

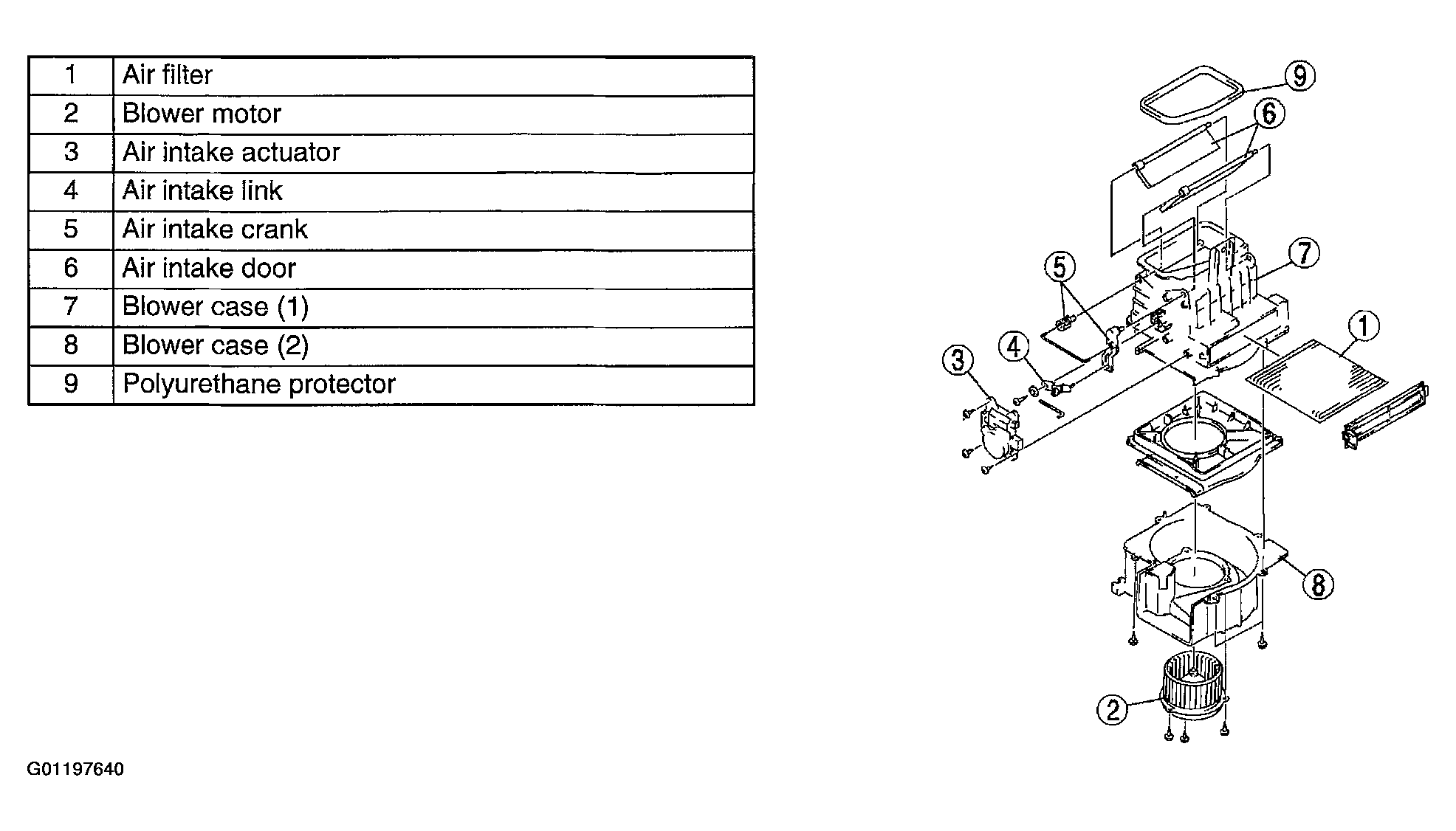

Fig 1: Disassembling/Assembling Blower Unit
Courtesy of MAZDA MOTORS CORP.
Dissemble in the reverse order of disassembly.
