Airflow Mode Actuator Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear side trim (RH). See REAR SIDE TRIM REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the illustration.

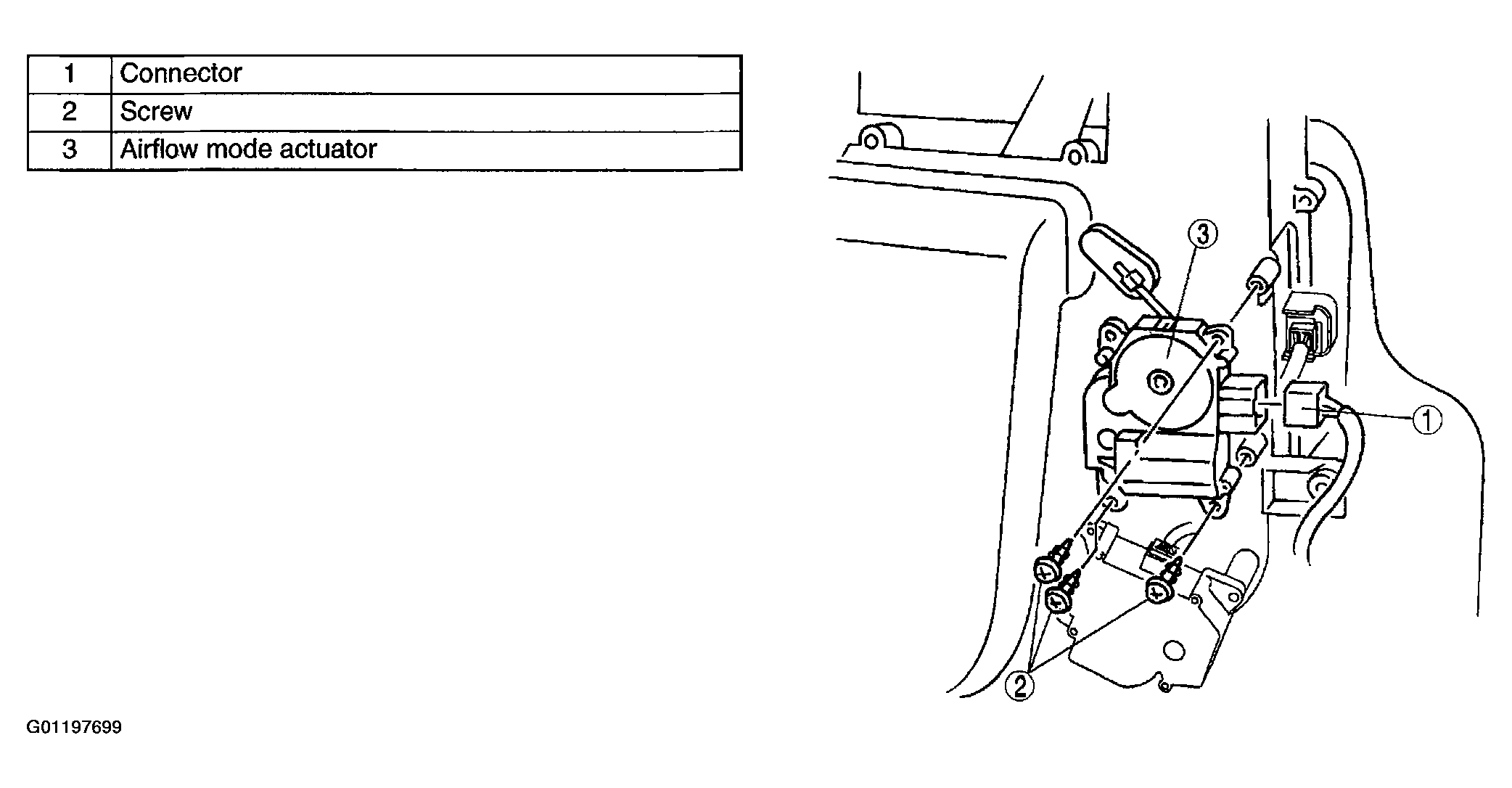

    Fig 1: Removing/Installing Airflow Mode Actuator
    G01197699Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
