A/C Compressor Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Evacuate the refrigerant from the system. See REFRIGERANT RECOVERY  . See REFRIGERANT CHARGING  .
  3. Remove the splash shield (RH).
  4. Loosen the drive belt and remove it. See SPECIFICATIONS & DRIVE BELT ROUTING .
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
    • Do not allow A/C compressor oil to spill. Operating the A/C compressor without sufficient A/C compressor oil can lead to abnormal noise and cause the A/C compressor to seize.
  5. Remove in the order indicated in the illustration.

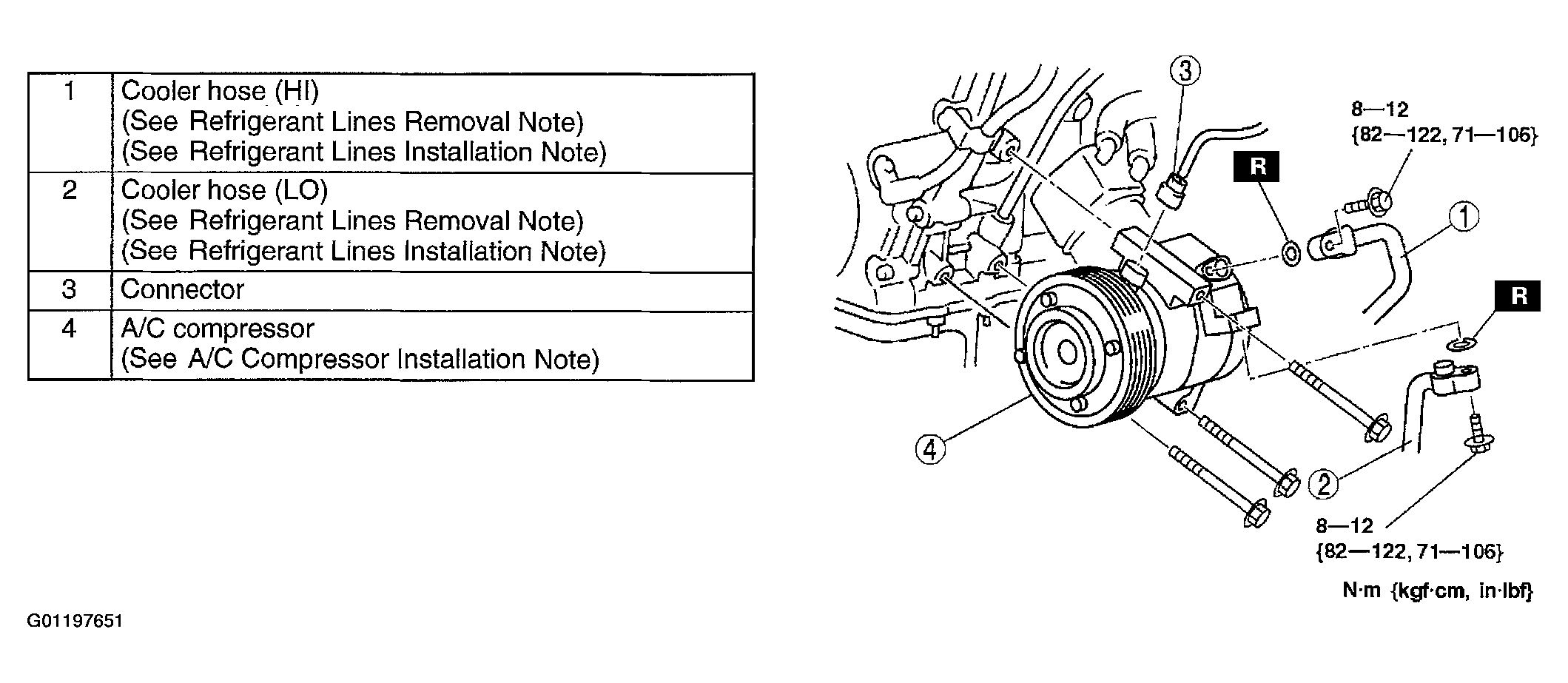

    Fig 1: Removing/Installing A/C Compressor
    G01197651Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Adjust the drive belt. See SPECIFICATIONS & DRIVE BELT ROUTING .
  8. Perform the refrigerant system performance test. See REFRIGERANT SYSTEM PERFORMANCE TEST  .
