Front A/C-Heater System
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

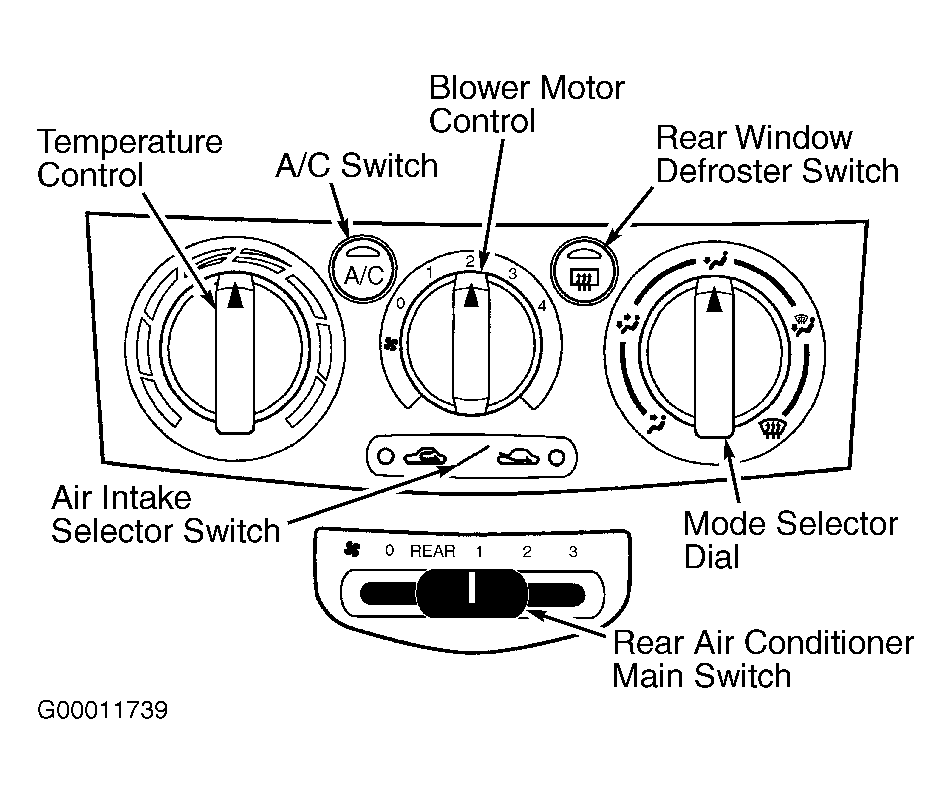

All vehicles use the same front A/C-heater systems. Some models are equipped with optional rear A/C system. Front A/C-heater control panel operates front blower motor and A/C compressor. Mode, temperature and air inlet mode doors are cable operated from A/C-heater control panel. If equipped with a rear A/C system, a rear main A/C switch is located in control panel just below A/C-heater controls.
