- Slide out the rear climate control unit with the connectors still connected. See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION .
- Turn the ignition switch to ON position.

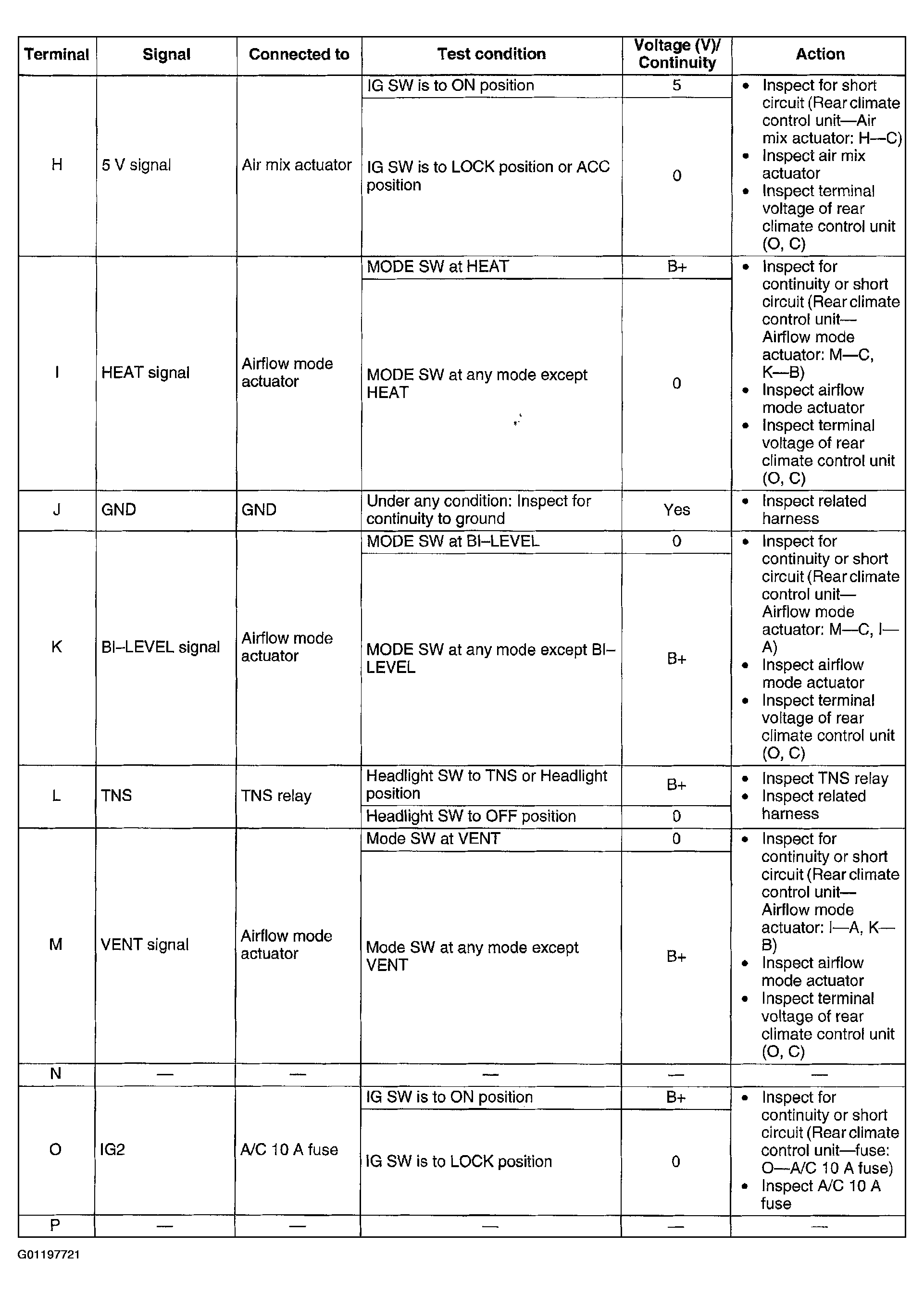

- Measure the voltage at each rear climate control unit terminal and refer to terminal voltage list. See Figure
-Figure
.
- If not as specified, inspect the appropriate area.
- If the inspection area is okay, replace the rear climate control unit.
- If not as specified, inspect the appropriate area.
- Disconnect the rear climate control unit connector before inspecting for continuity at terminals C, E and J.
