Magnetic Clutch Inspection: Operation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the magnetic clutch connector.
Connect battery positive voltage to terminal A and ground to terminal B of the magnetic clutch.

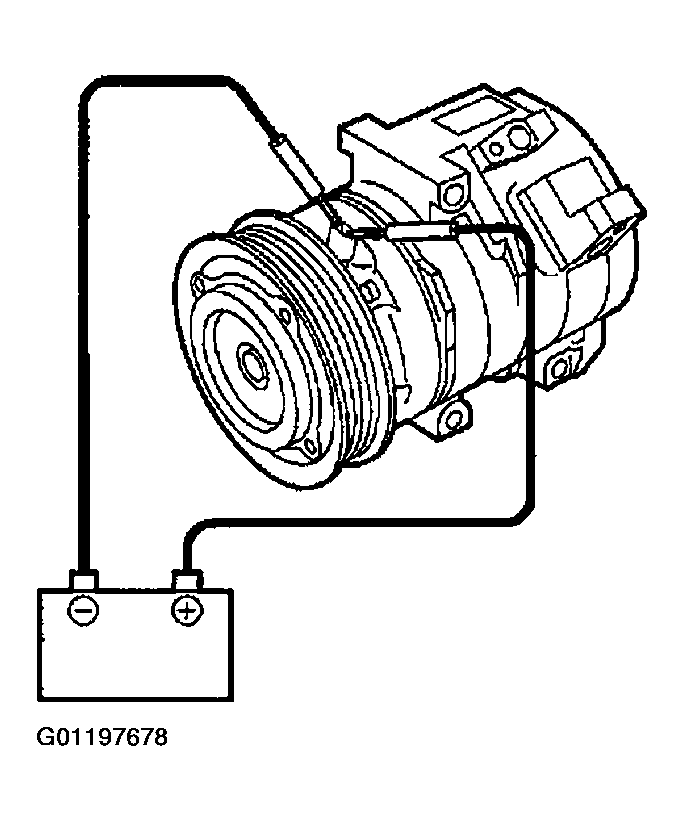

Fig 1: Testing Magnetic Clutch Operation
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If not as specified, replace the stator.

Fig 2: Identifying Magnetic Clutch Terminals & Circuit

Courtesy of MAZDA MOTORS CORP.
