Basic System Location Index

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

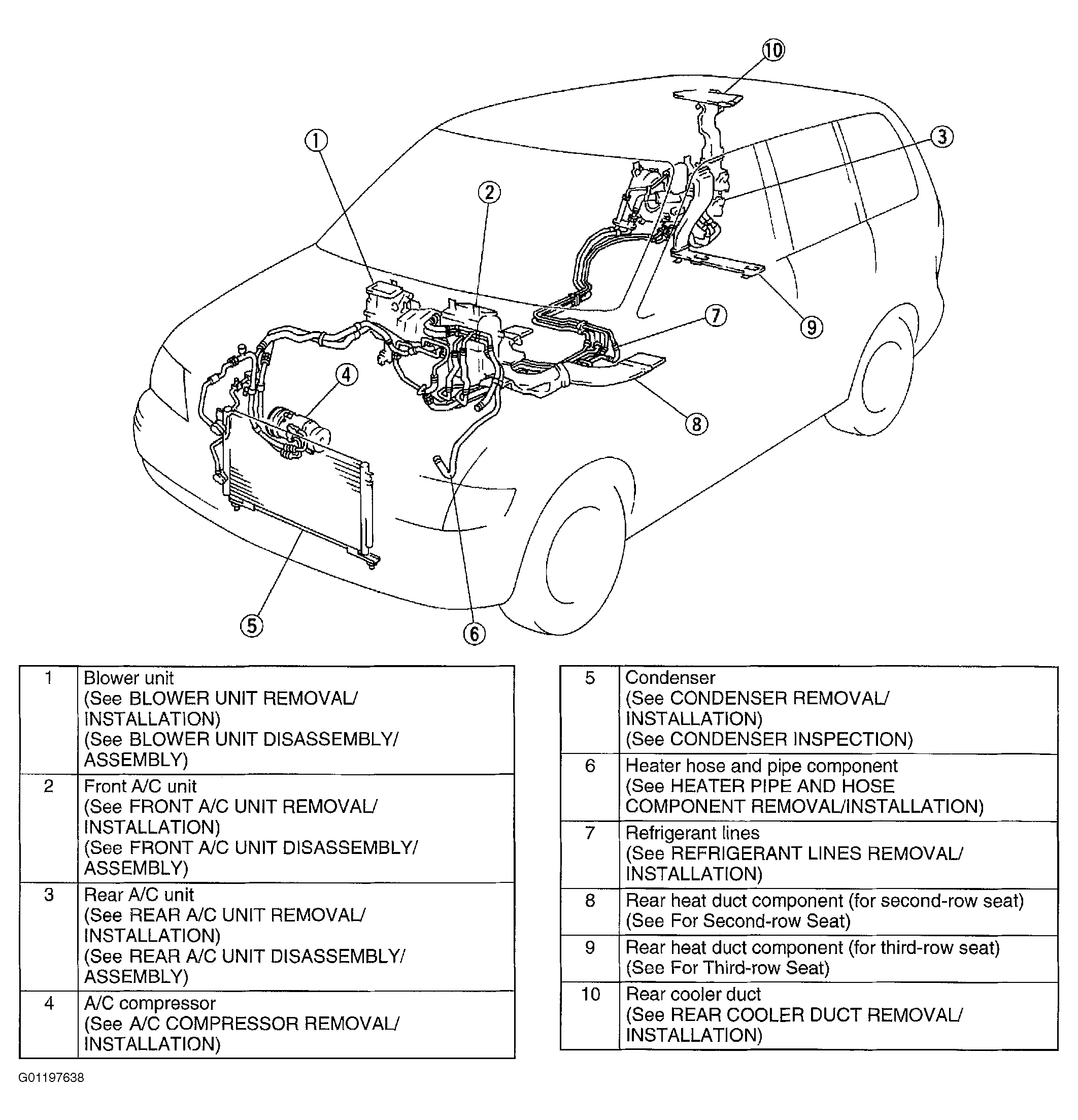

Fig 1: Locating Basic A/C System Components
G01197638Courtesy of MAZDA MOTORS CORP.

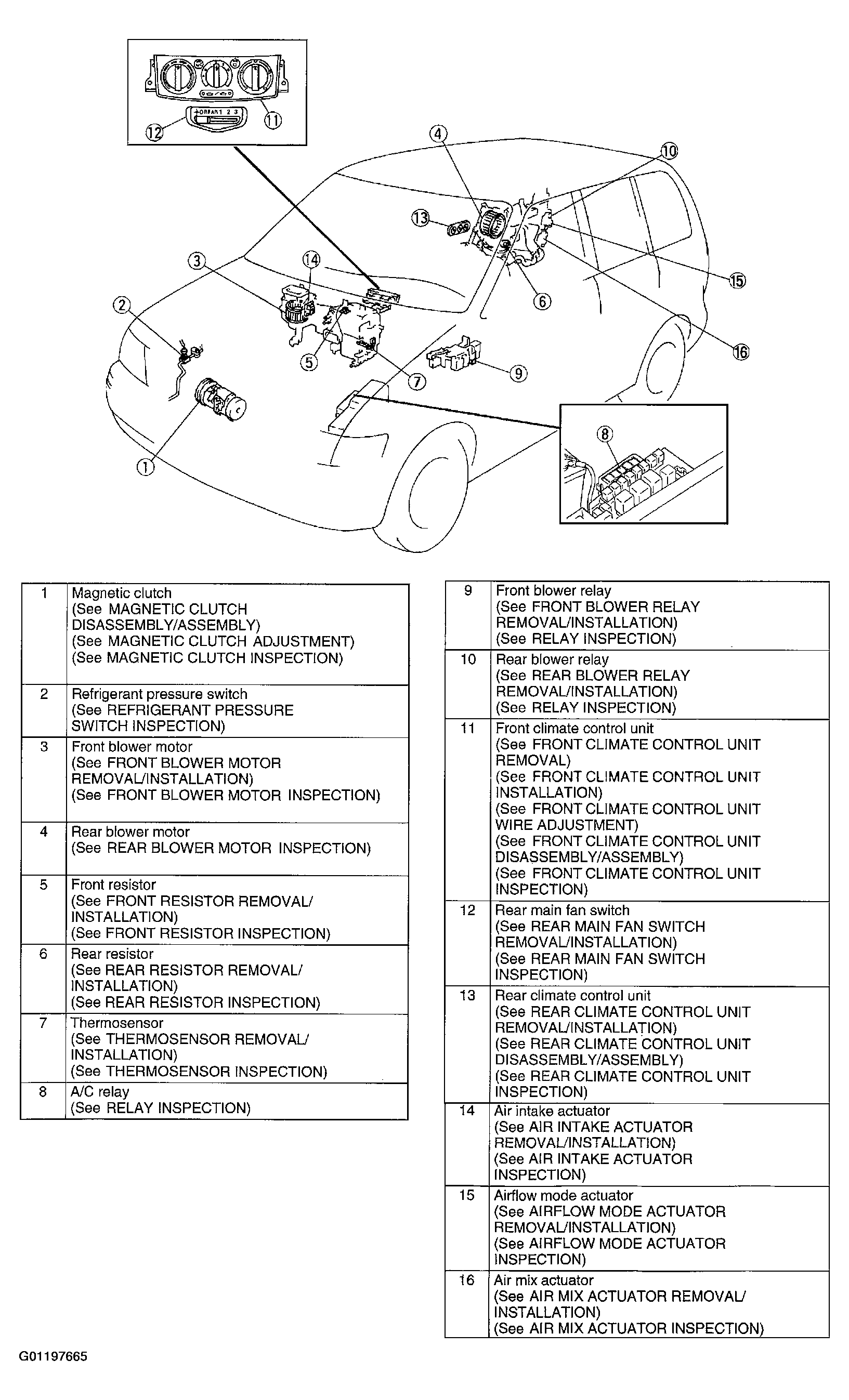

Fig 2: Locating A/C System Control Components
G01197665Courtesy of MAZDA MOTORS CORP.
