Airflow Mode Wire

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the airflow mode control dial at VENT.
  2. Set the airflow mode link to VENT in the direction shown by the arrow and insert a screwdriver at the set hole.

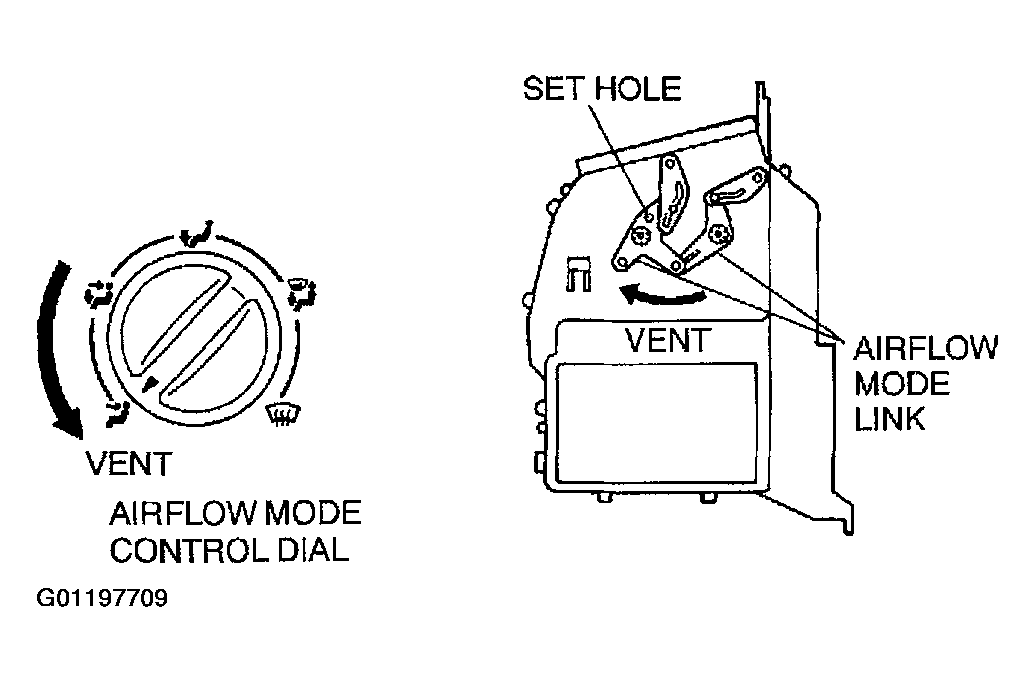

    Fig 1: Identifying Airflow Mode Link Set Hole
    G01197709Courtesy of MAZDA MOTORS CORP.
  3. Connect the airflow mode wire to airflow mode link.
  4. Clamp the airflow mode wire to wire clamp.
  5. Verify that the airflow mode control dial moves its full stroke.
