Unique Idle Concern

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Unique Idle Concern Diagnostic Procedure
G01898622Courtesy of FORD MOTOR CO.

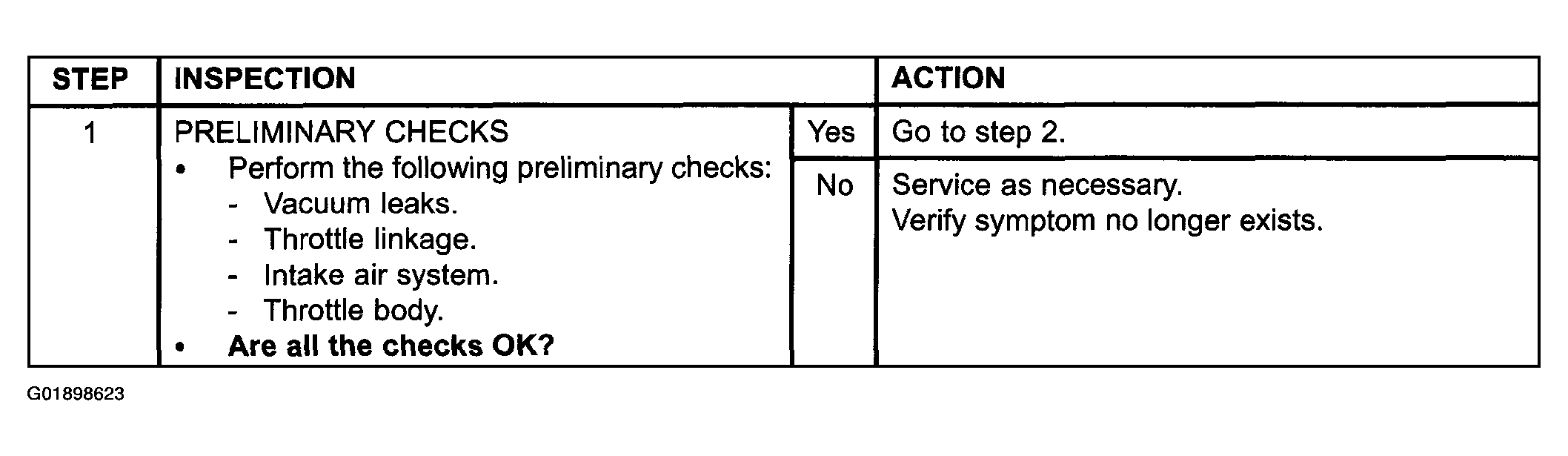

Fig 2: Unique Idle Concern Inspection Procedure (1 Of 2)
G01898623Courtesy of FORD MOTOR CO.

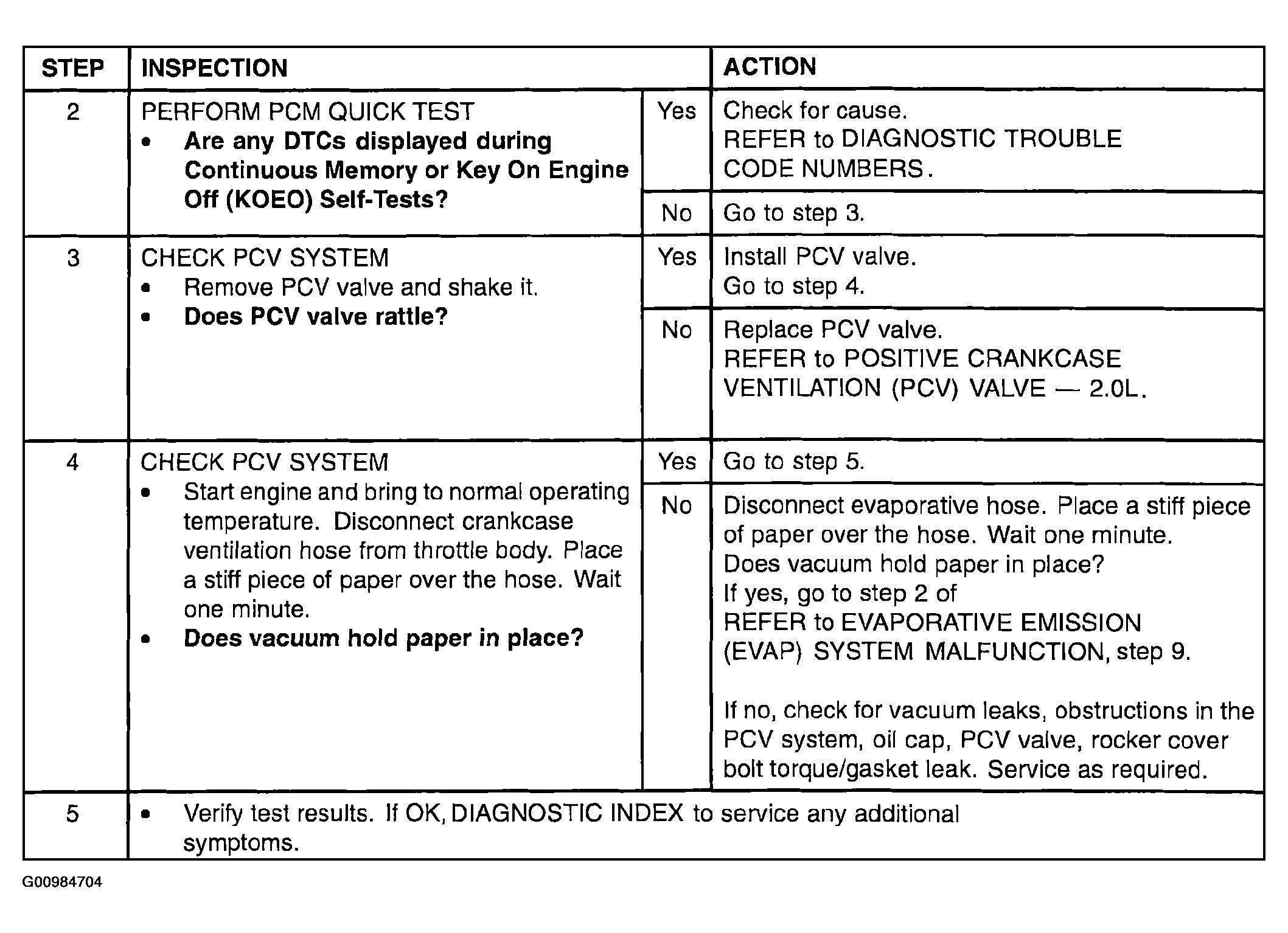

Fig 3: Unique Idle Concern Inspection Procedure (2 Of 2)
G00984704Courtesy of FORD MOTOR CO.
