Test 9: Fuel Line/Fuel Pressure Hold Inspection

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

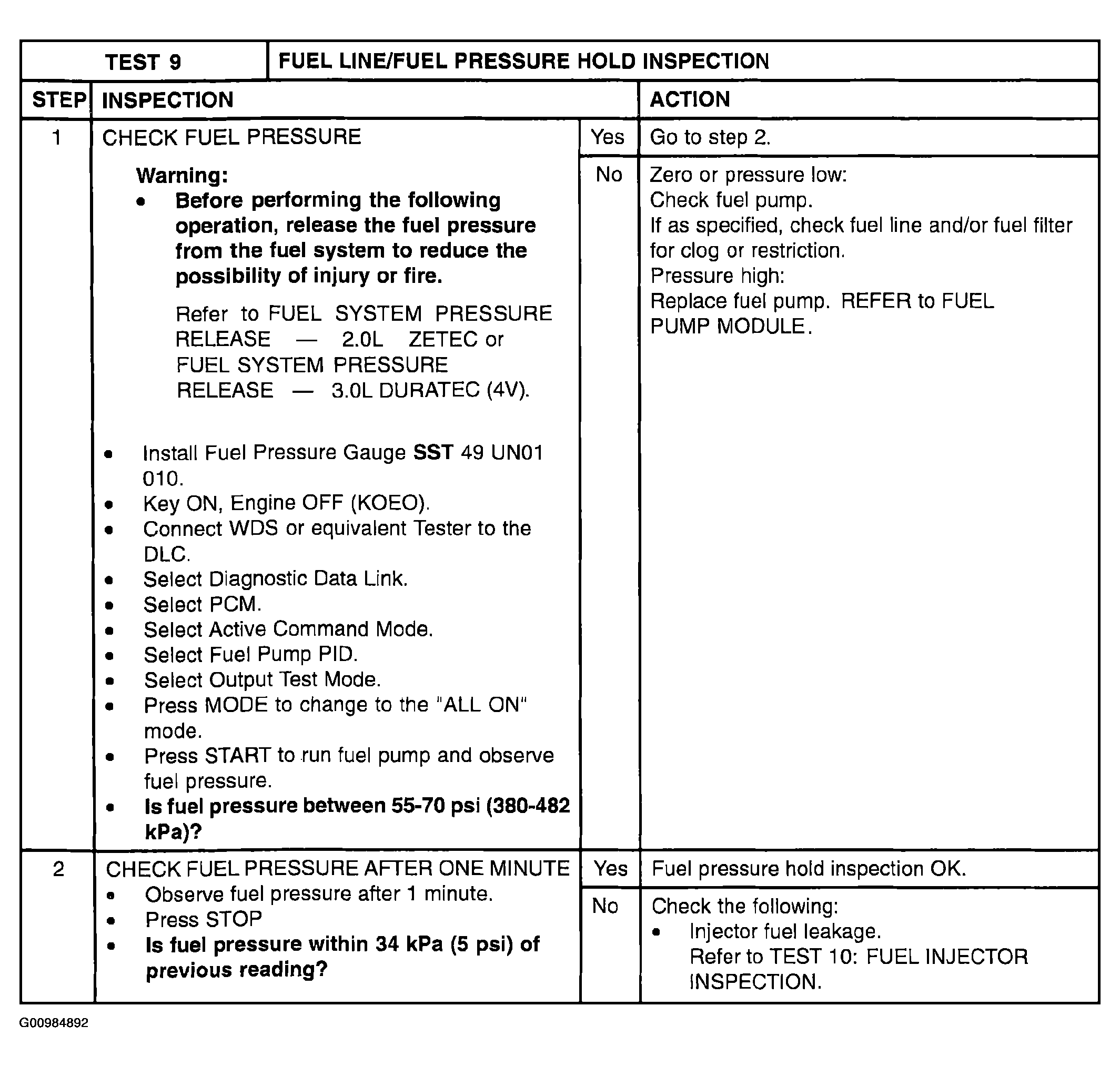

Fig 1: Fuel Line/Fuel Pressure Hold Inspection Procedure
G00984892Courtesy of FORD MOTOR CO.
