Test 13: Differential Pressure Feedback EGR (DPFE) Sensor

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

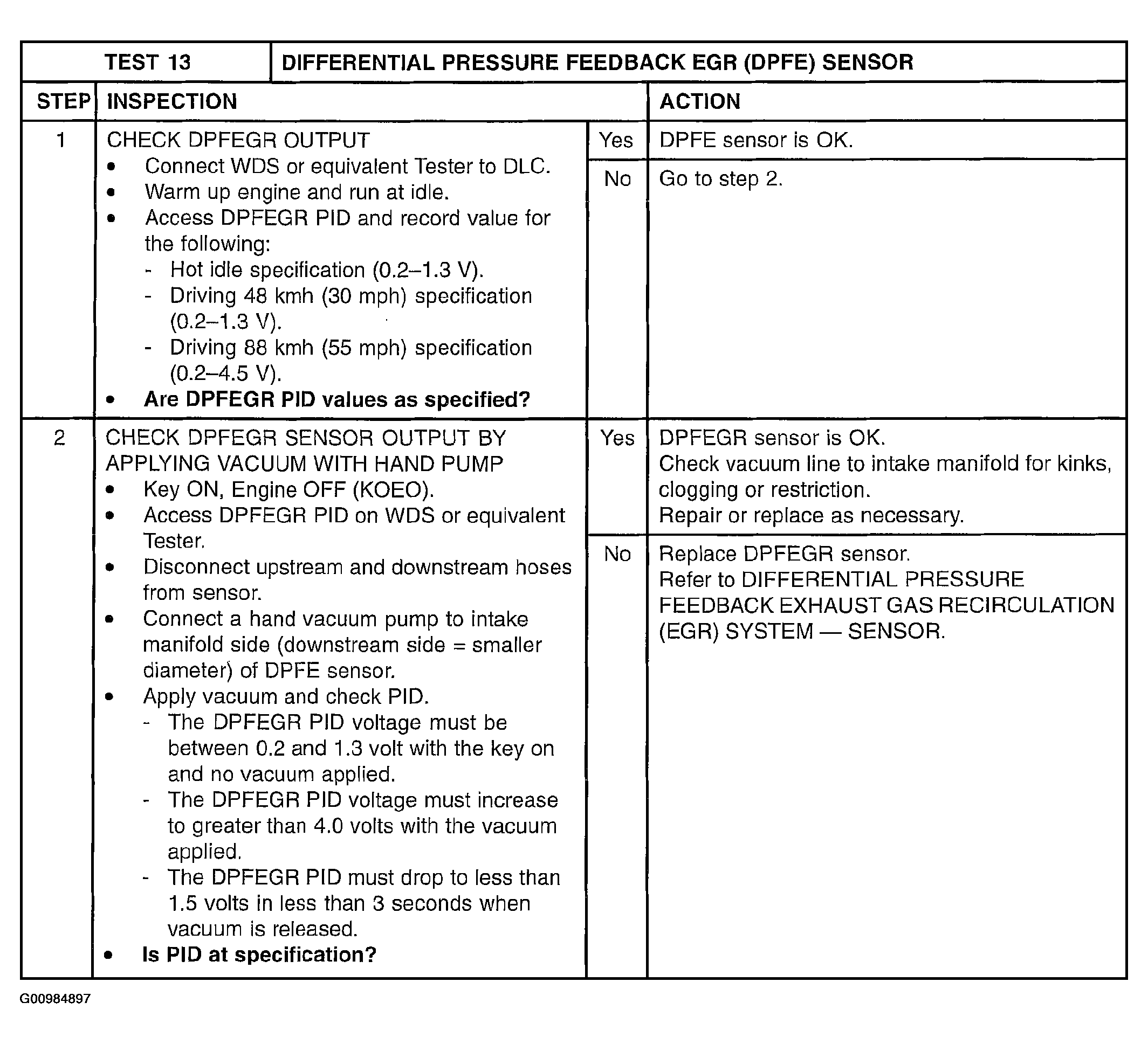

Fig 1: Differential Pressure Feedback EGR Sensor Inspection Procedure
G00984897Courtesy of FORD MOTOR CO.
