Test 11: EGR Valve

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

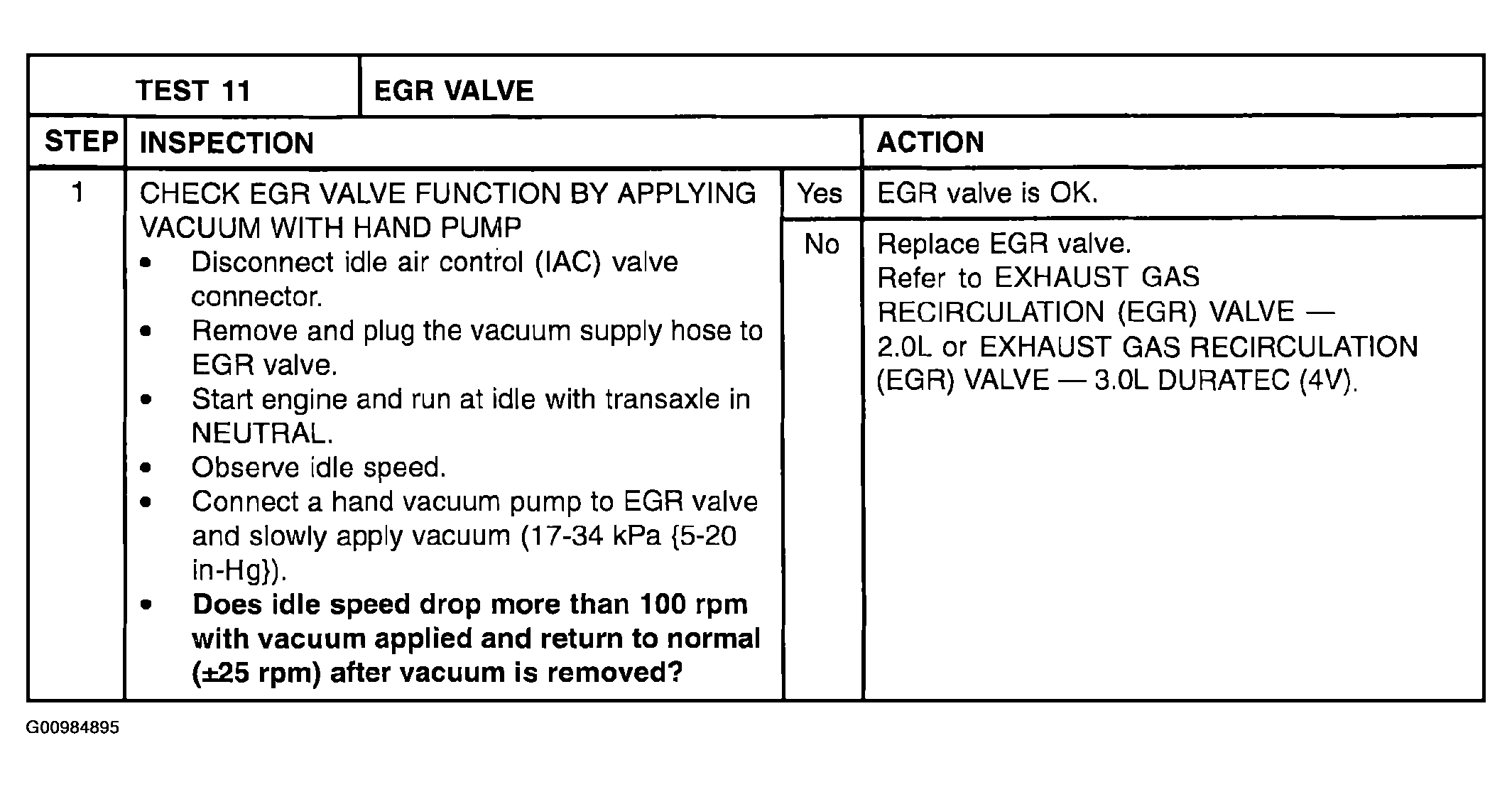

Fig 1: EGR Valve Inspection Procedure
G00984895Courtesy of FORD MOTOR CO.
