Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

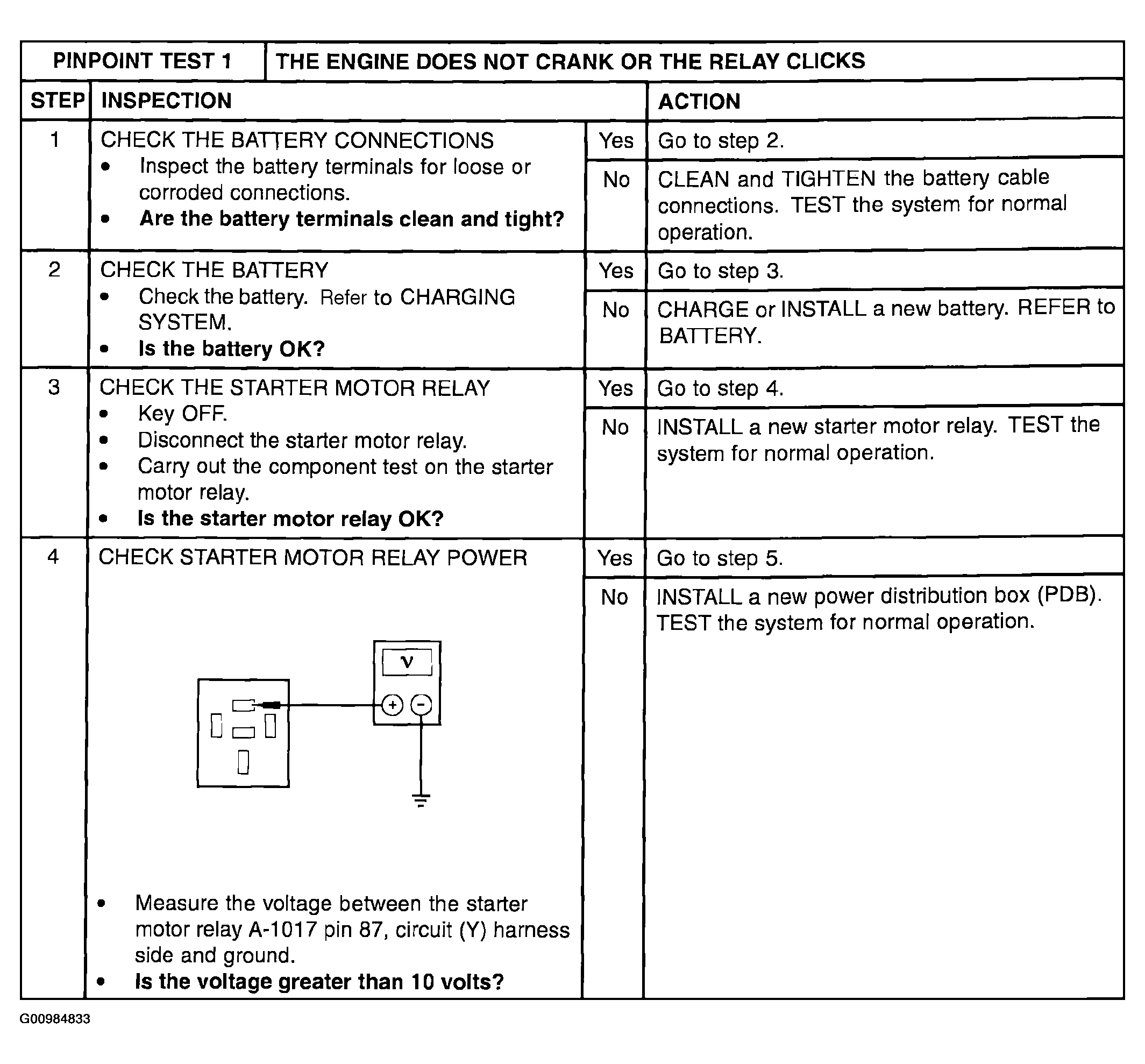

Fig 1: Engine Does Not Crank Or Relay Clicks Inspection Procedure (1 Of 5)
Courtesy of FORD MOTOR CO.

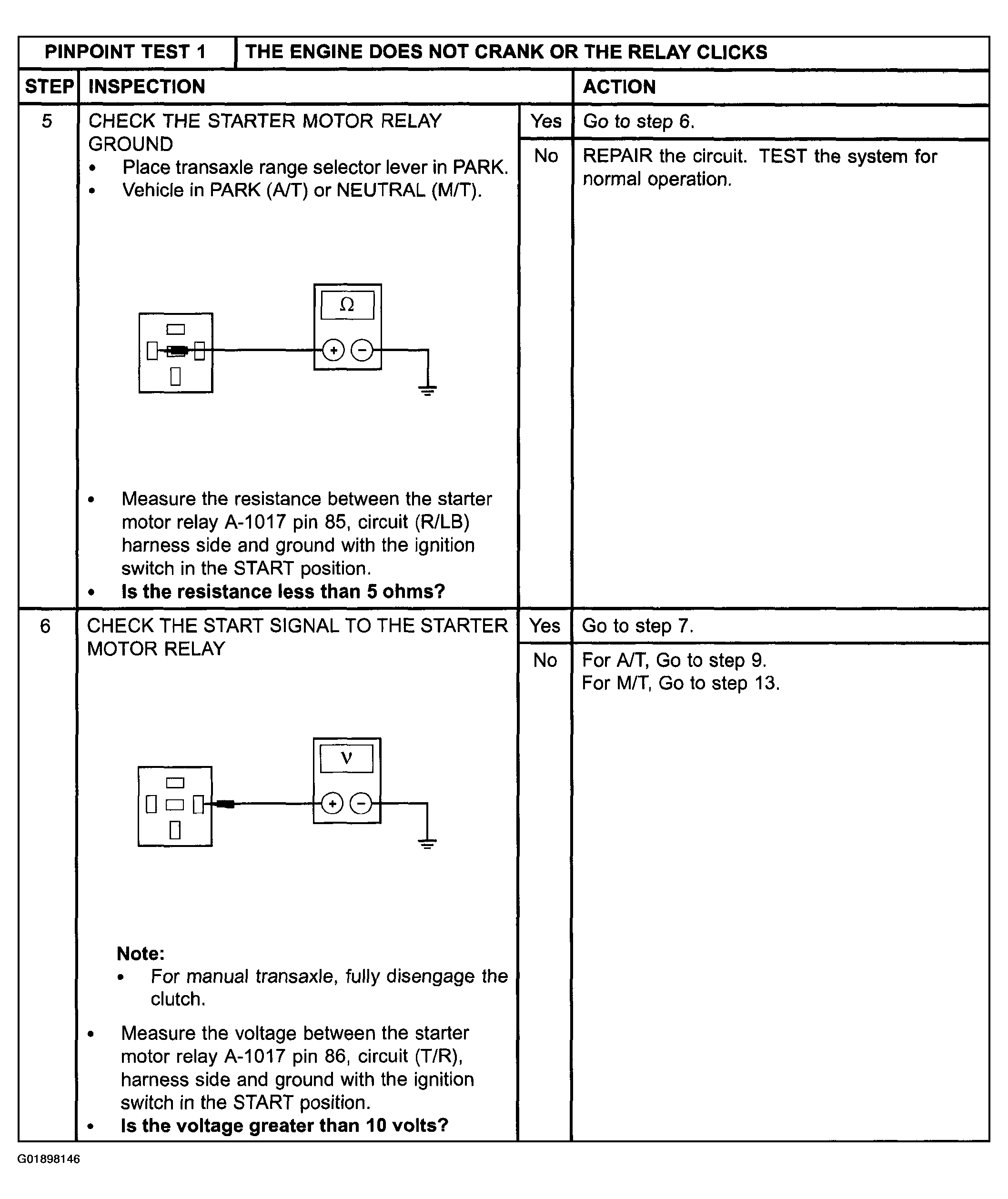

Fig 2: Engine Does Not Crank Or Relay Clicks Inspection Procedure (2 Of 5)
Courtesy of FORD MOTOR CO.

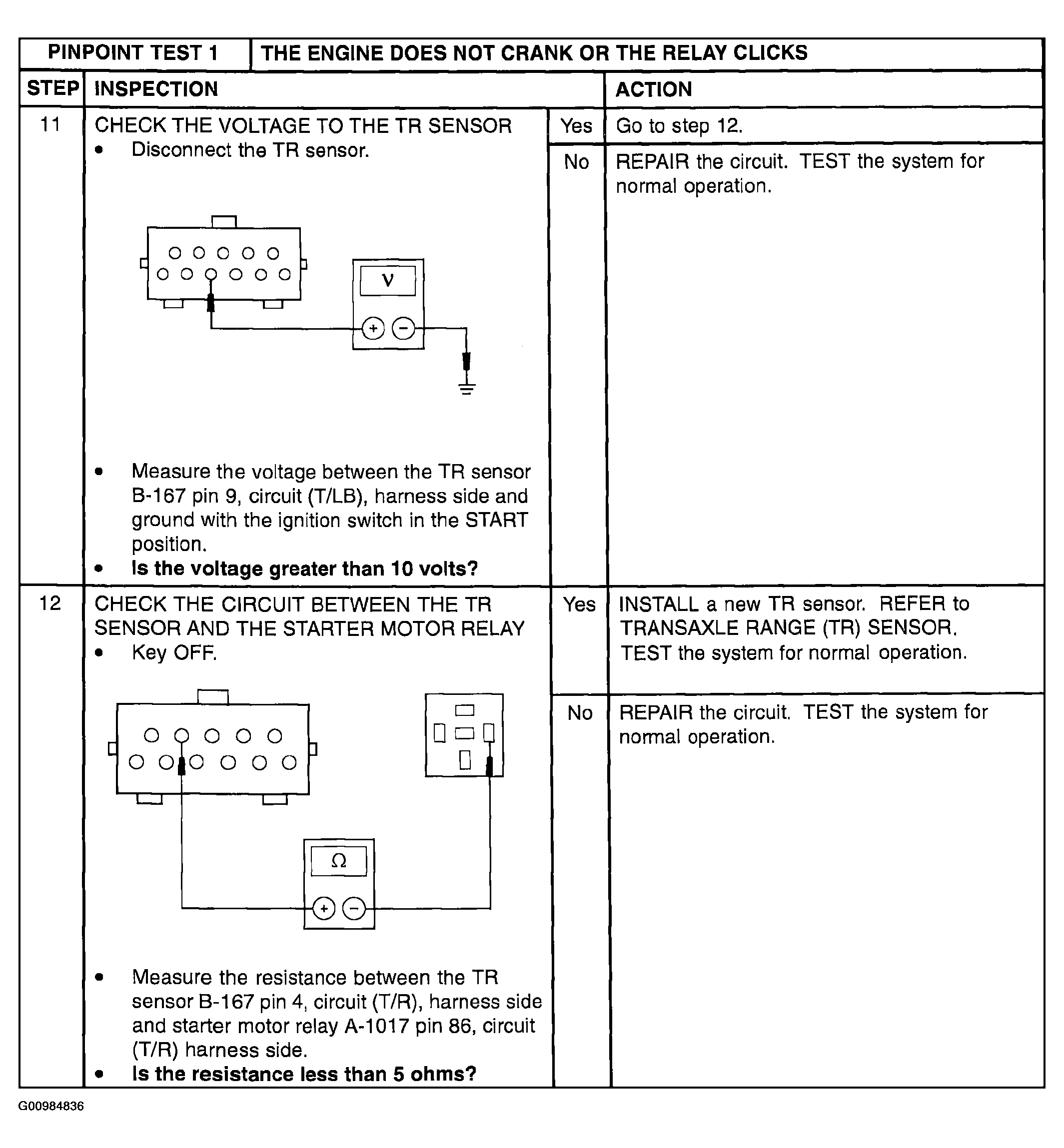

Fig 3: Engine Does Not Crank Or Relay Clicks Inspection Procedure (3 Of 5)
Courtesy of FORD MOTOR CO.

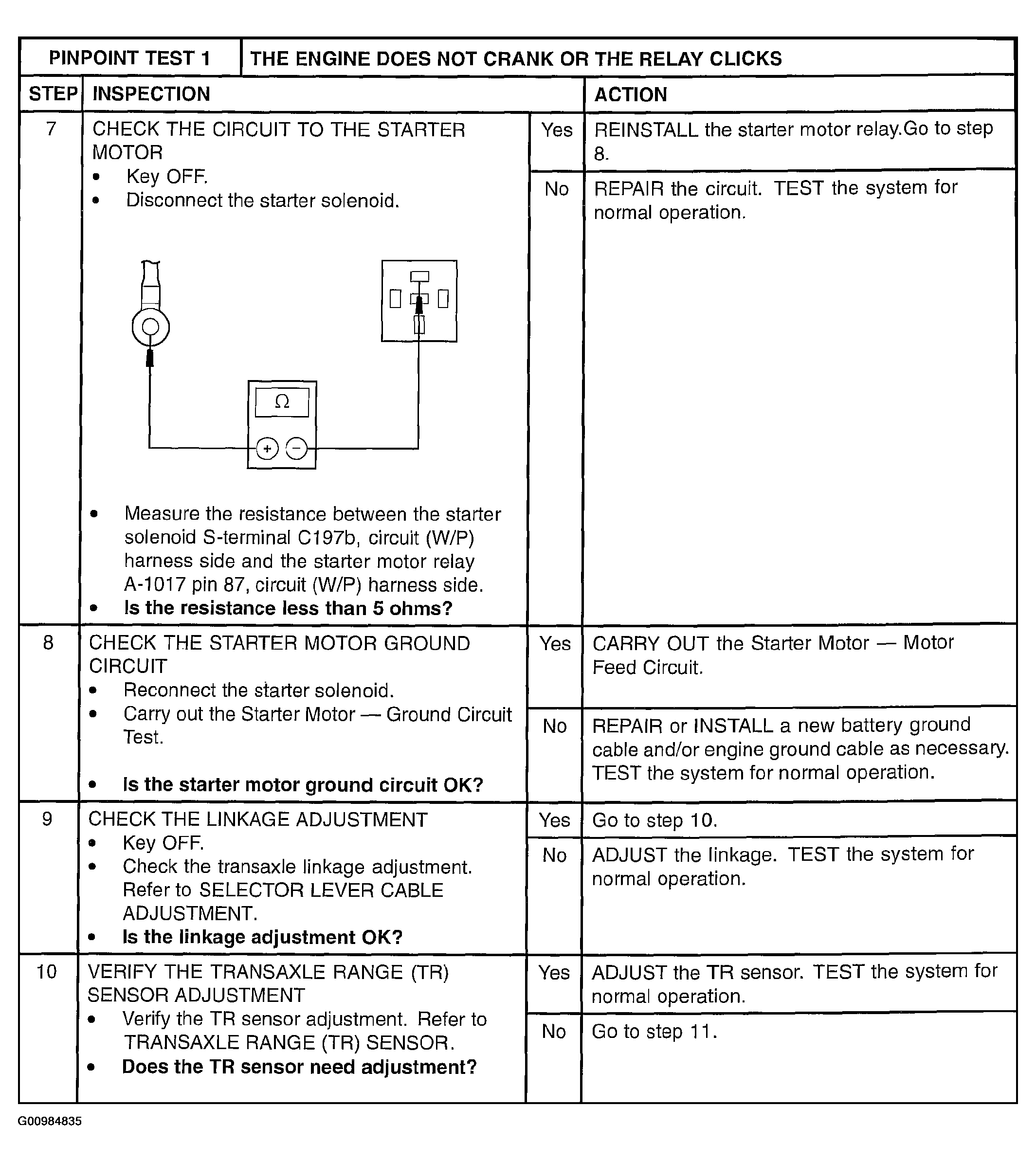

Fig 4: Engine Does Not Crank Or Relay Clicks Inspection Procedure (4 Of 5)
Courtesy of FORD MOTOR CO.

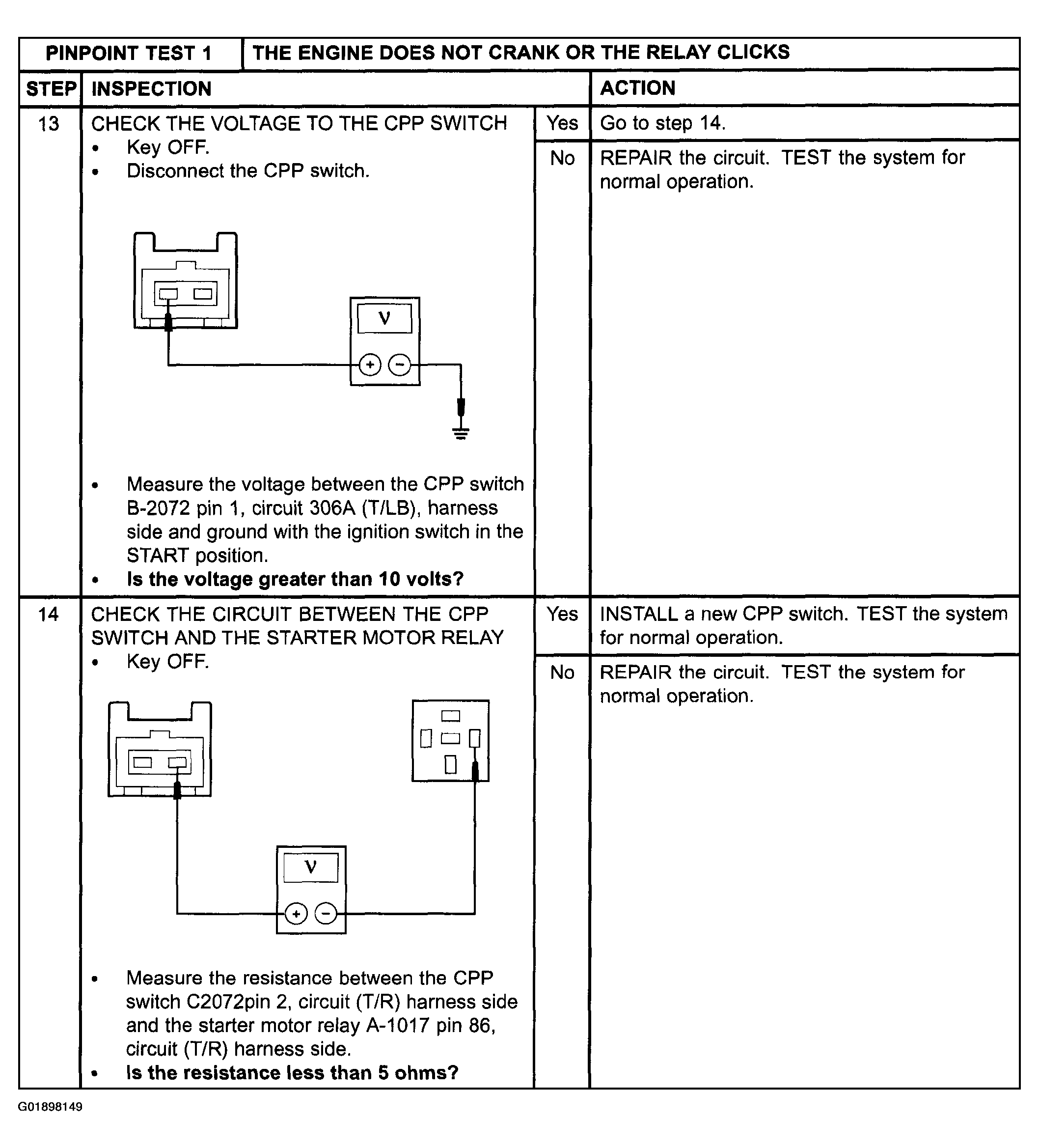

Fig 5: Engine Does Not Crank Or Relay Clicks Inspection Procedure (5 Of 5)
