Symptom Troubleshooting Chart - Starting System: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

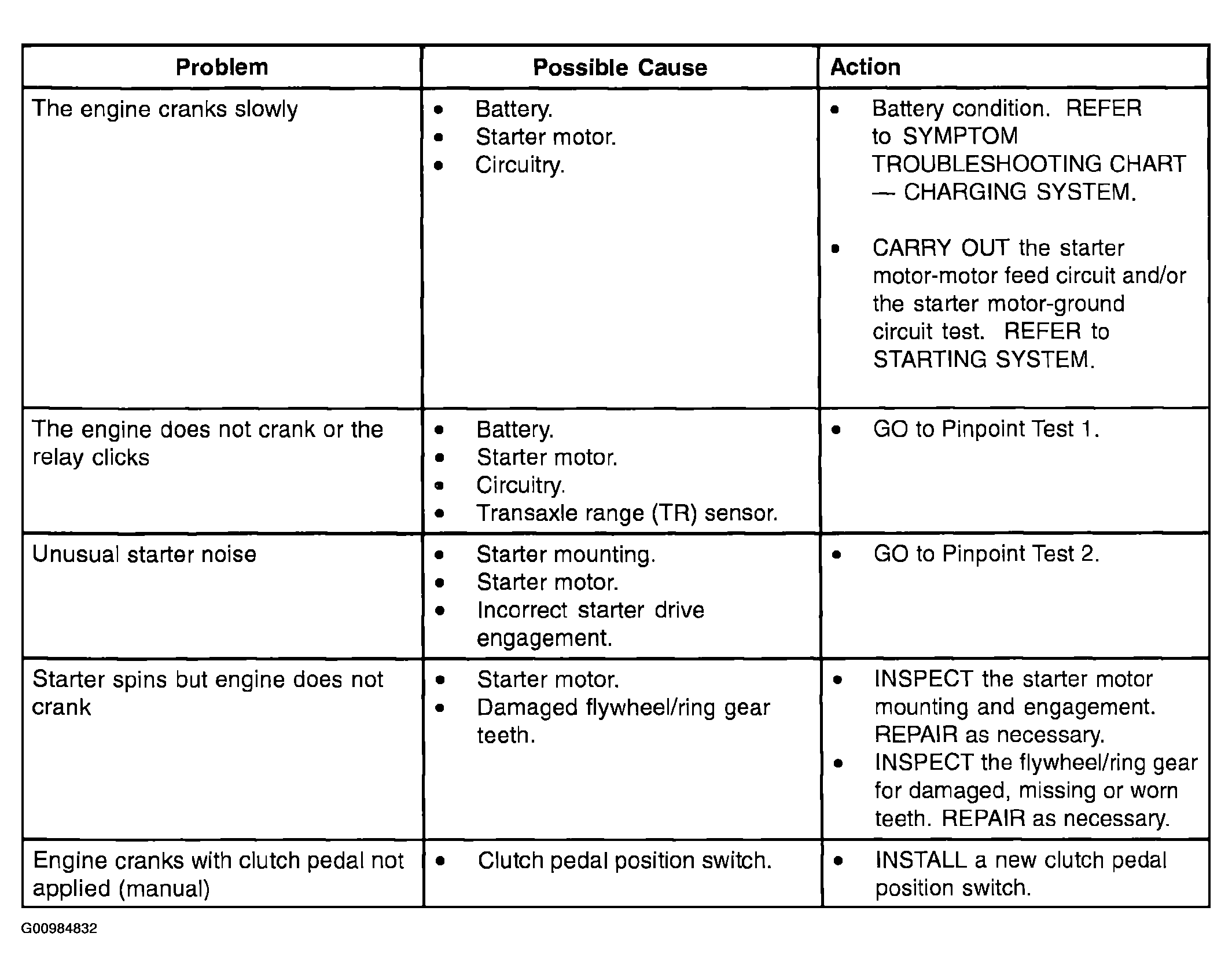

Fig 1: Symptom Troubleshooting Procedure - Starting System
G00984832Courtesy of FORD MOTOR CO.
