WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

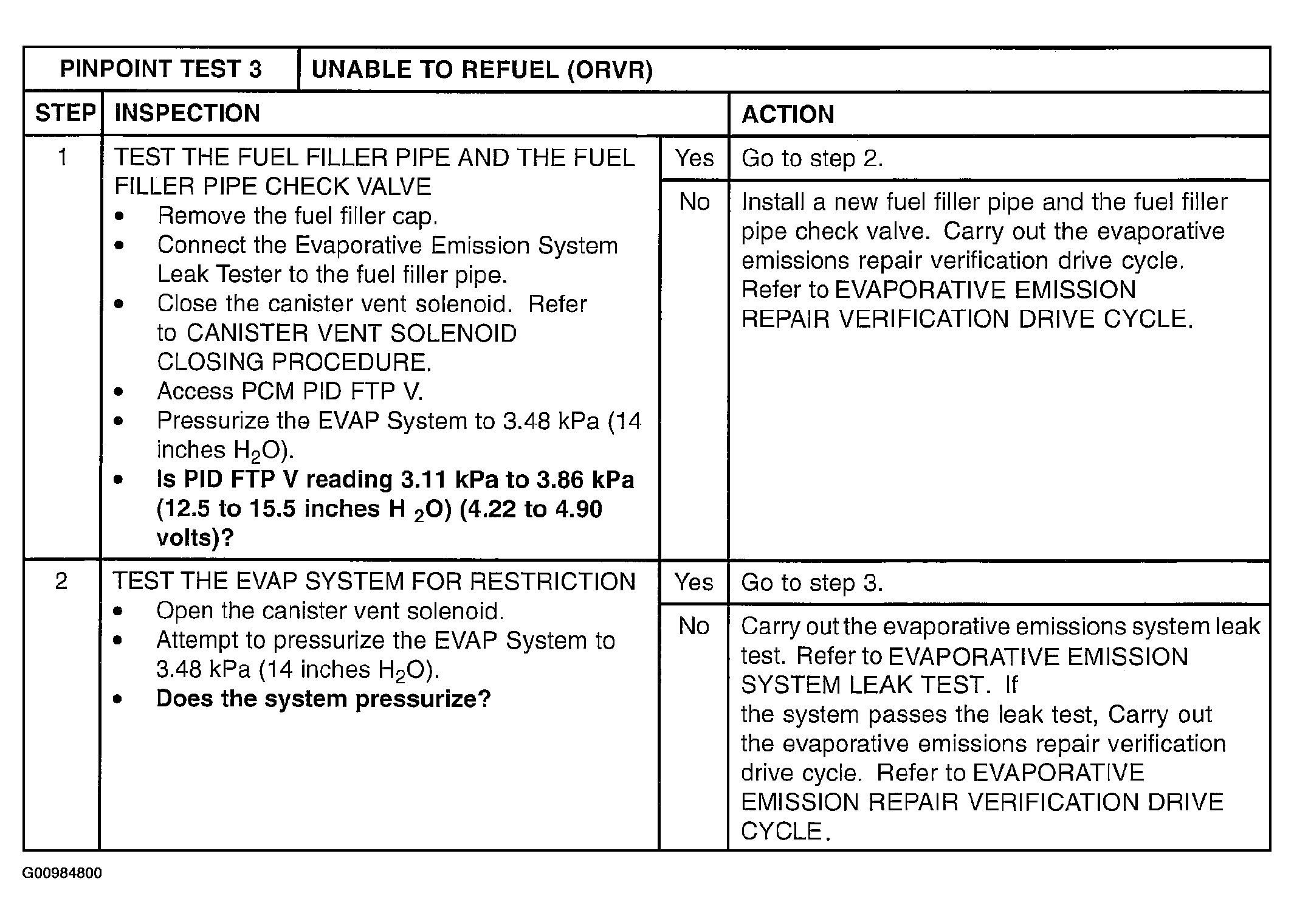

Fig 1: Unable To Refuel (ORVR) Inspection Procedure (1 Of4)
Courtesy of FORD MOTOR CO.

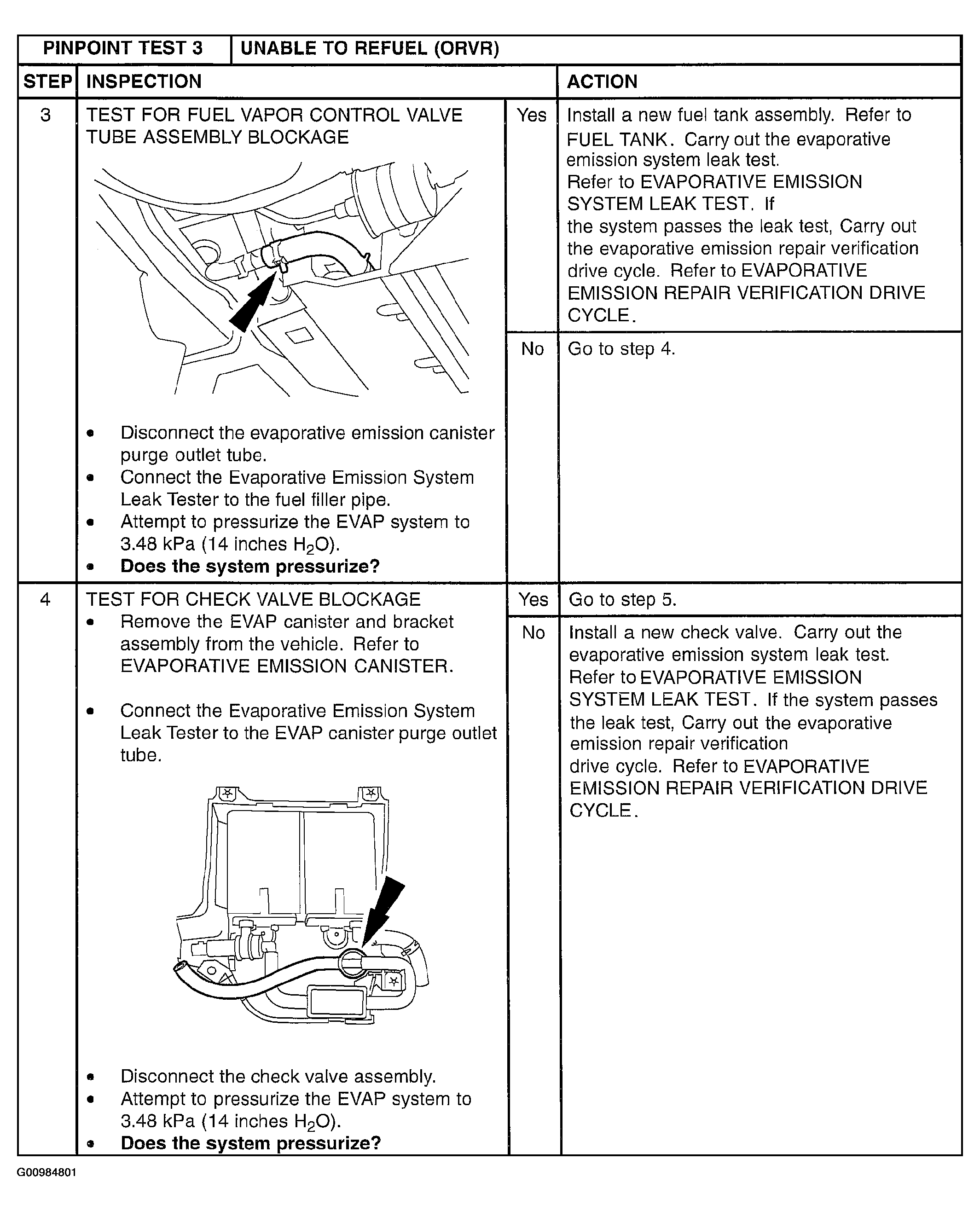

Fig 2: Unable To Refuel (ORVR) Inspection Procedure (2 Of 4)
Courtesy of FORD MOTOR CO.

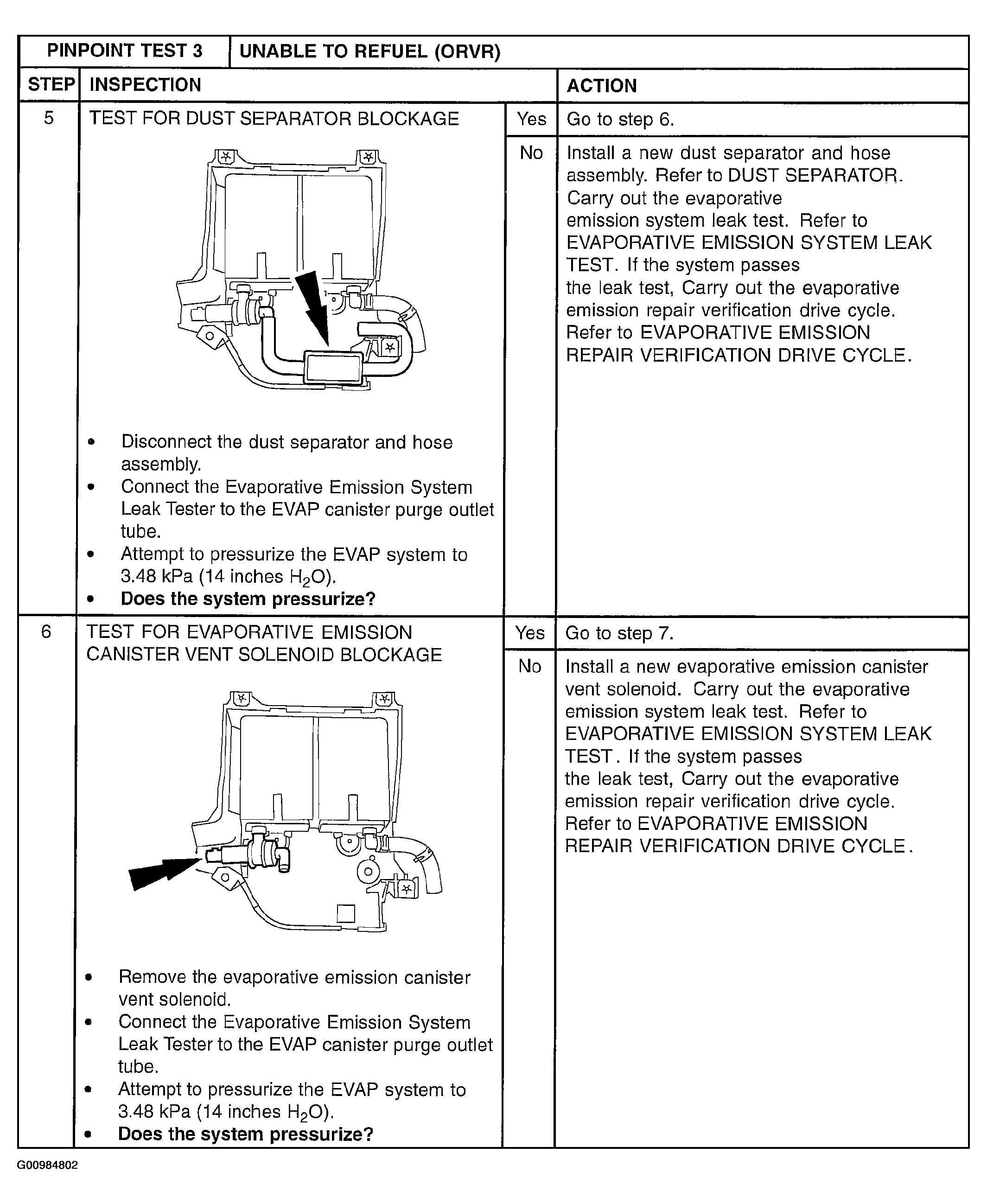

Fig 3: Unable To Refuel (ORVR) Inspection Procedure (3 Of 4)
Courtesy of FORD MOTOR CO.

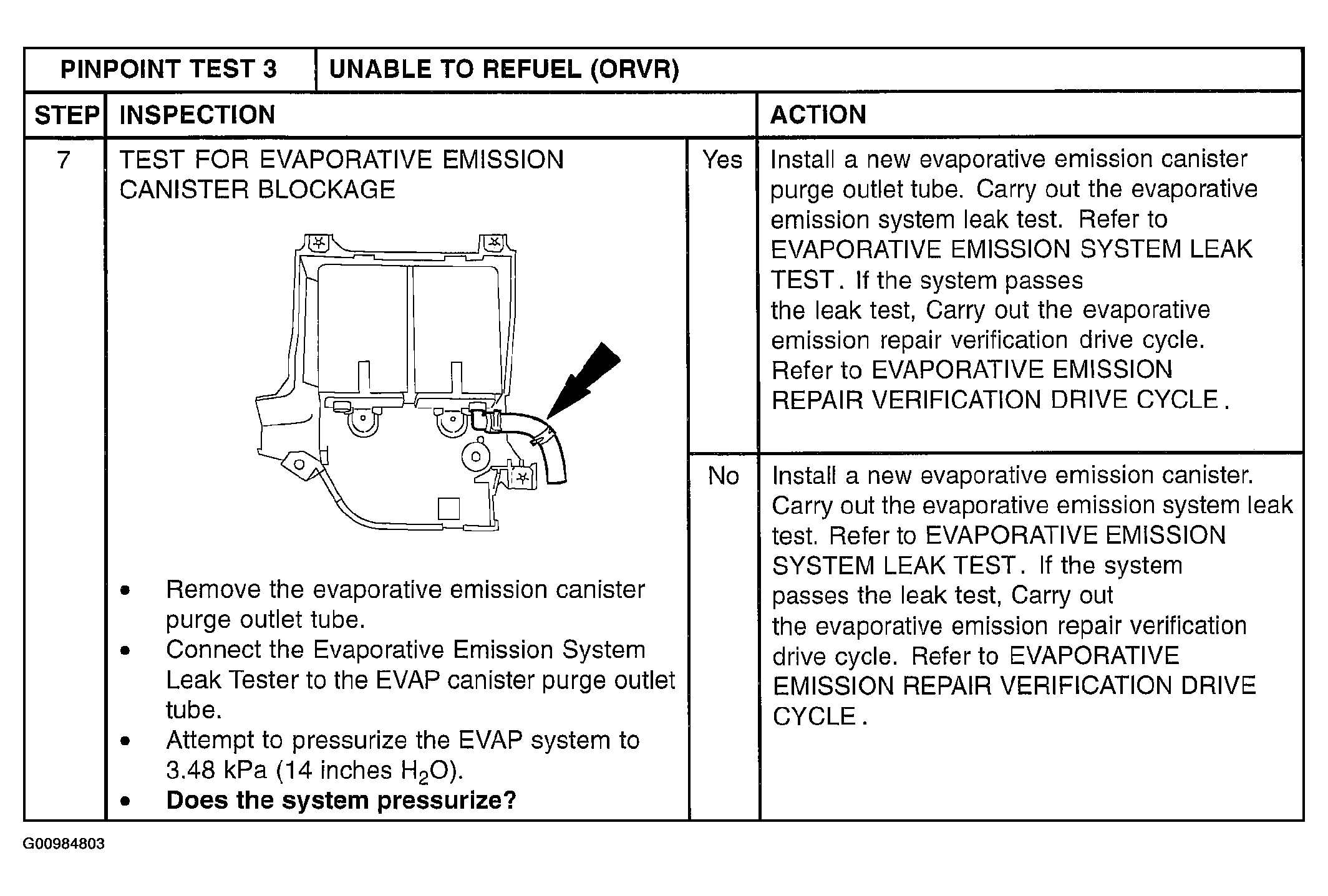

Fig 4: Unable To Refuel (ORVR) Inspection Procedure (4 Of 4)
