Section 319 (Engine Controls - Trouble Shooting - With & Without Codes)
>>
Symptom Troubleshooting Chart - Drive Belts
Symptom Troubleshooting Chart - Drive Belts
WARNING:
This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

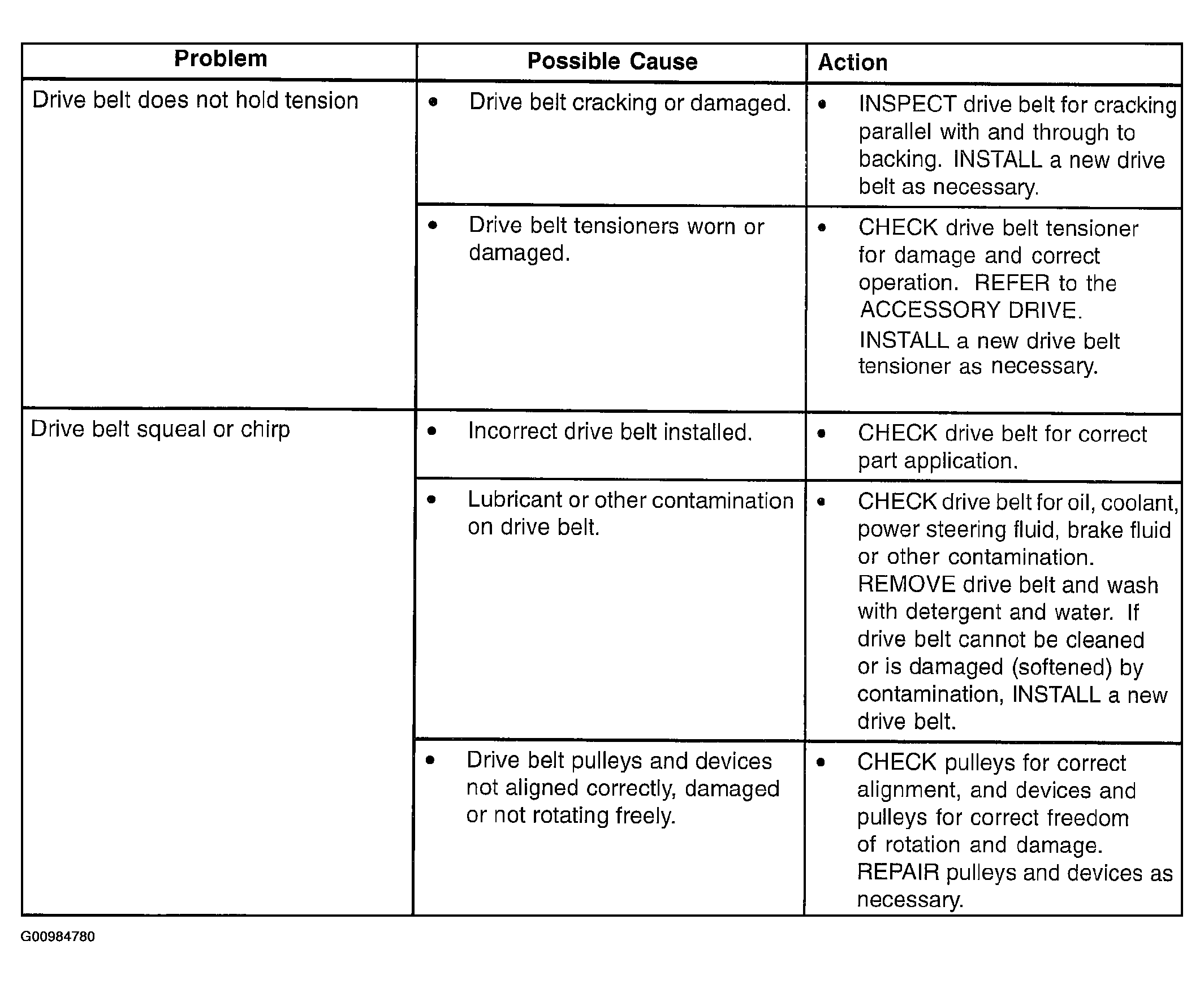

Fig 1: Symptom Troubleshooting Procedure - Drive Belts (1 Of 2)
Courtesy of FORD MOTOR CO.

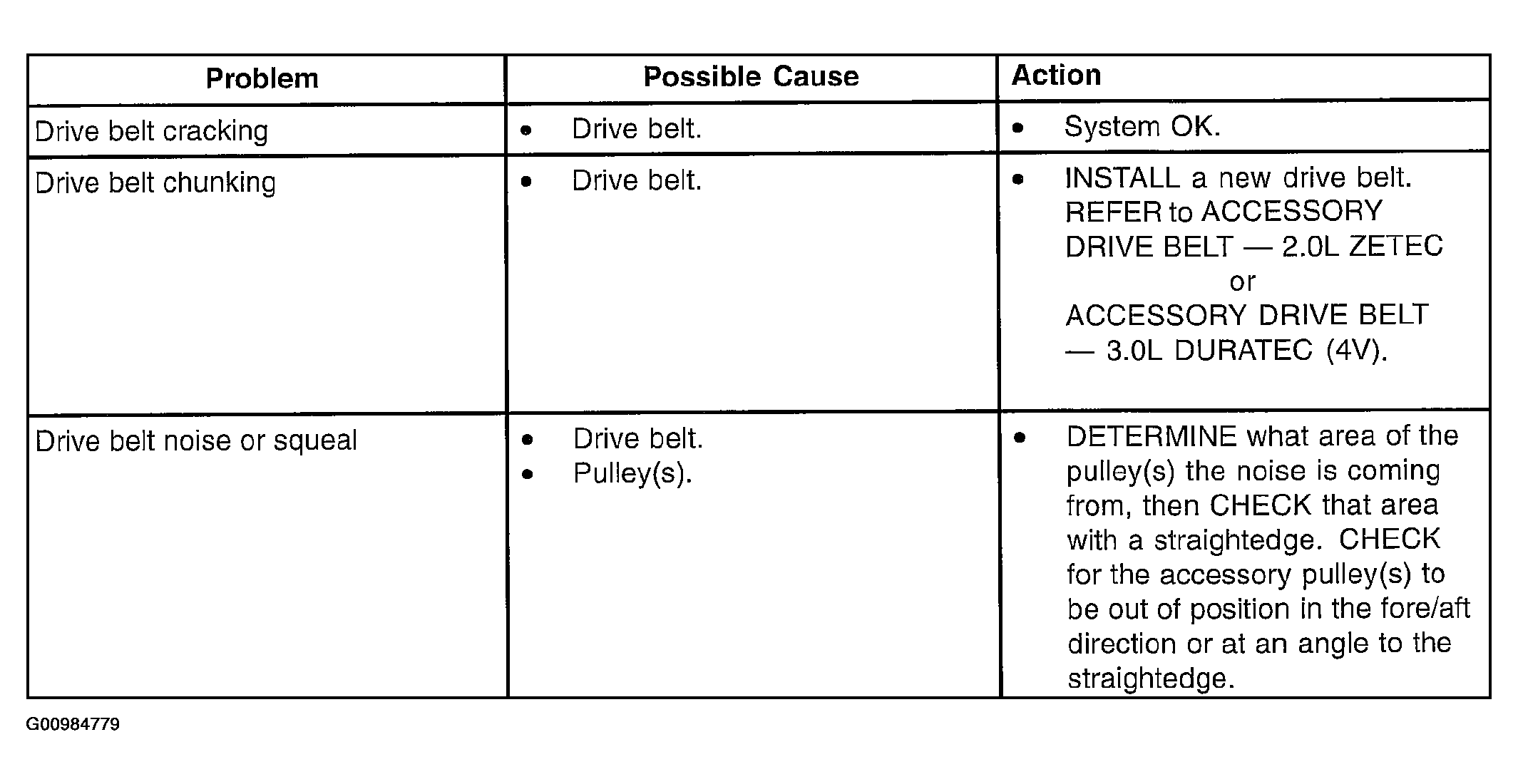

Fig 2: Symptom Troubleshooting Procedure - Drive Belts (2 Of 2)
Courtesy of FORD MOTOR CO.
