Pinpoint Test 3: The Speed Control Does Not Disengage When The Brakes Are Applied

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

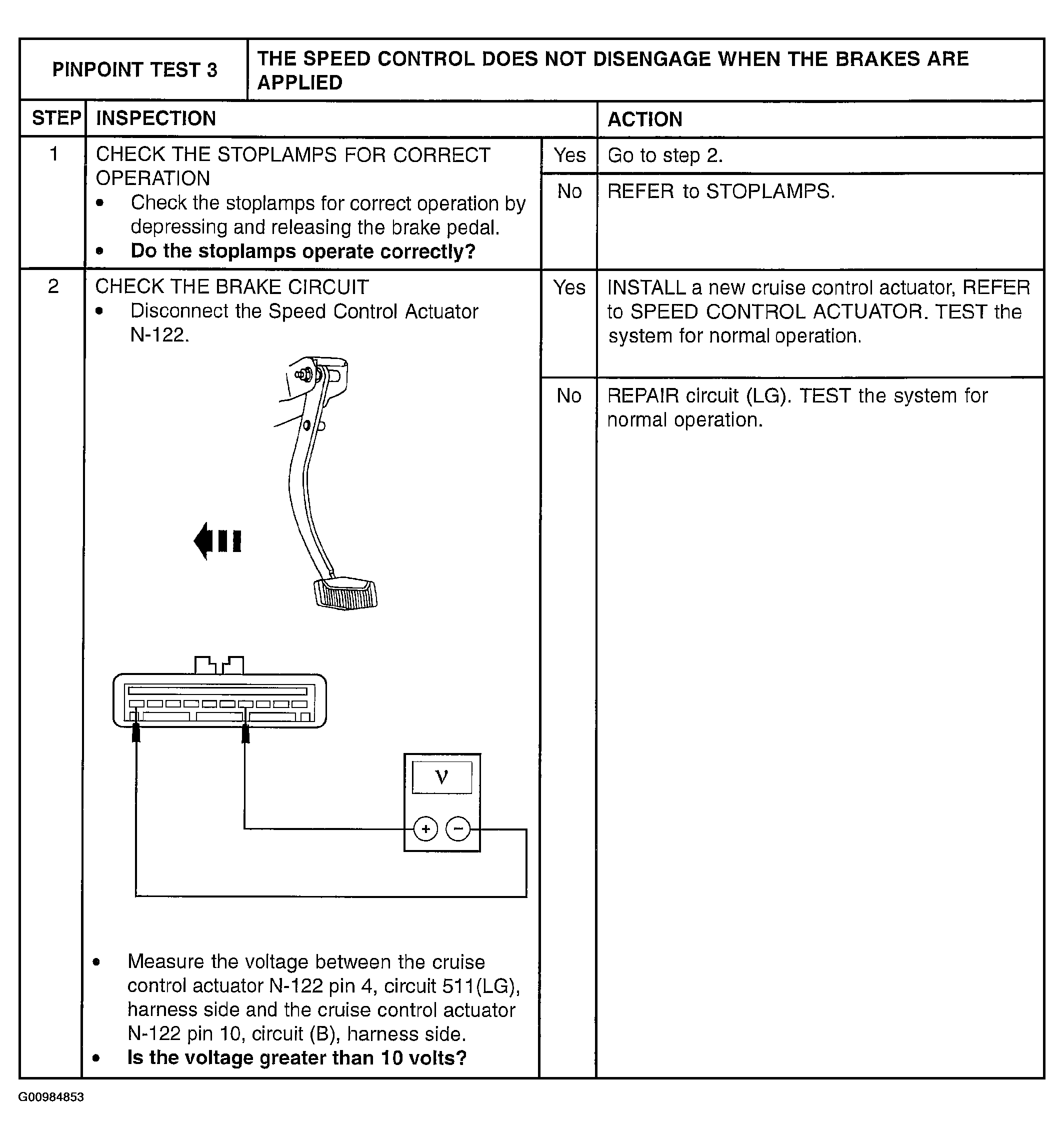

Fig 1: Speed Control Does Not Disengage When Brakes Are Applied Inspection Procedure
G00984853Courtesy of FORD MOTOR CO.
