WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

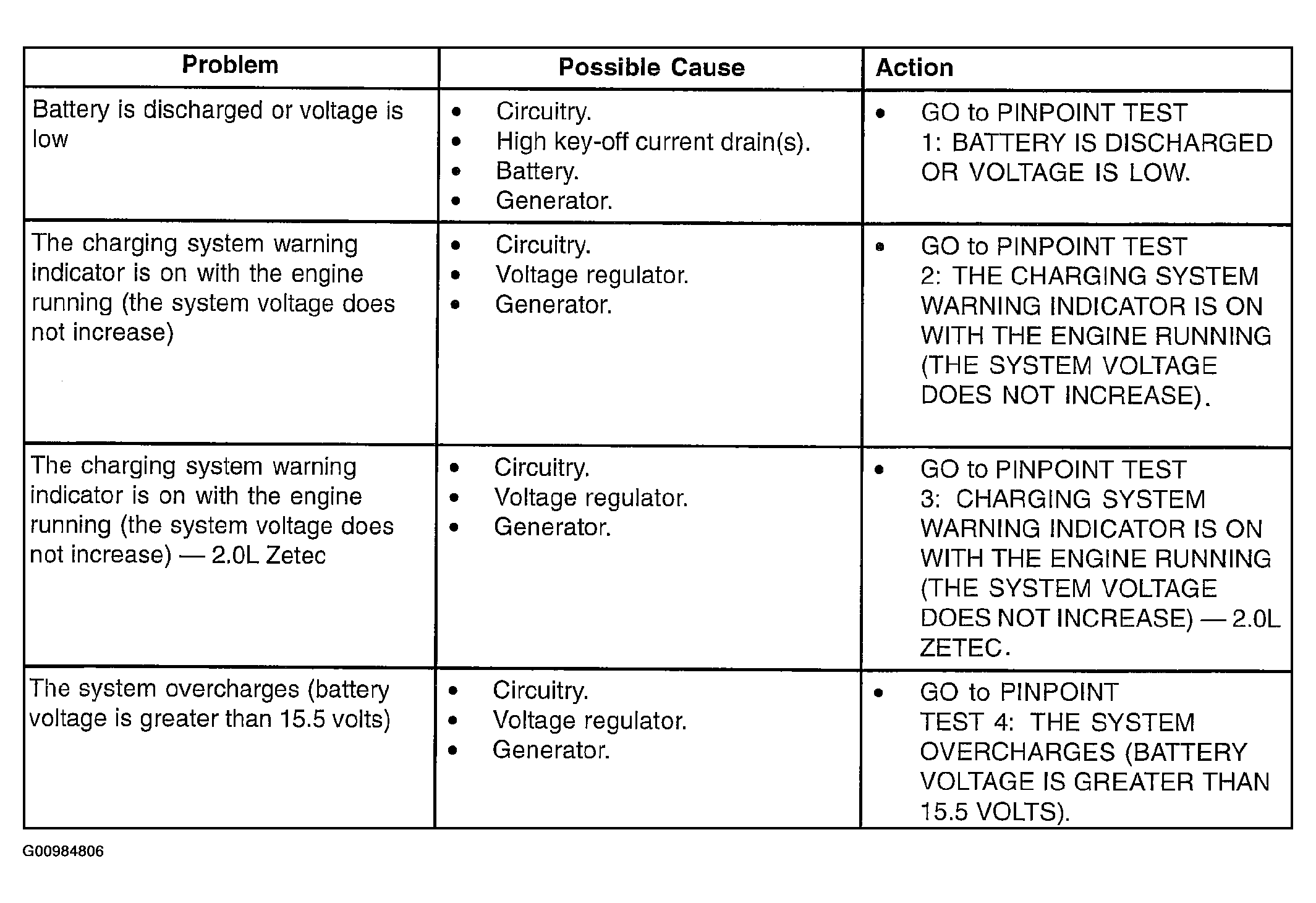

Fig 1: Symptom Troubleshooting Procedure - Charging System (1 Of 3)
Courtesy of FORD MOTOR CO.

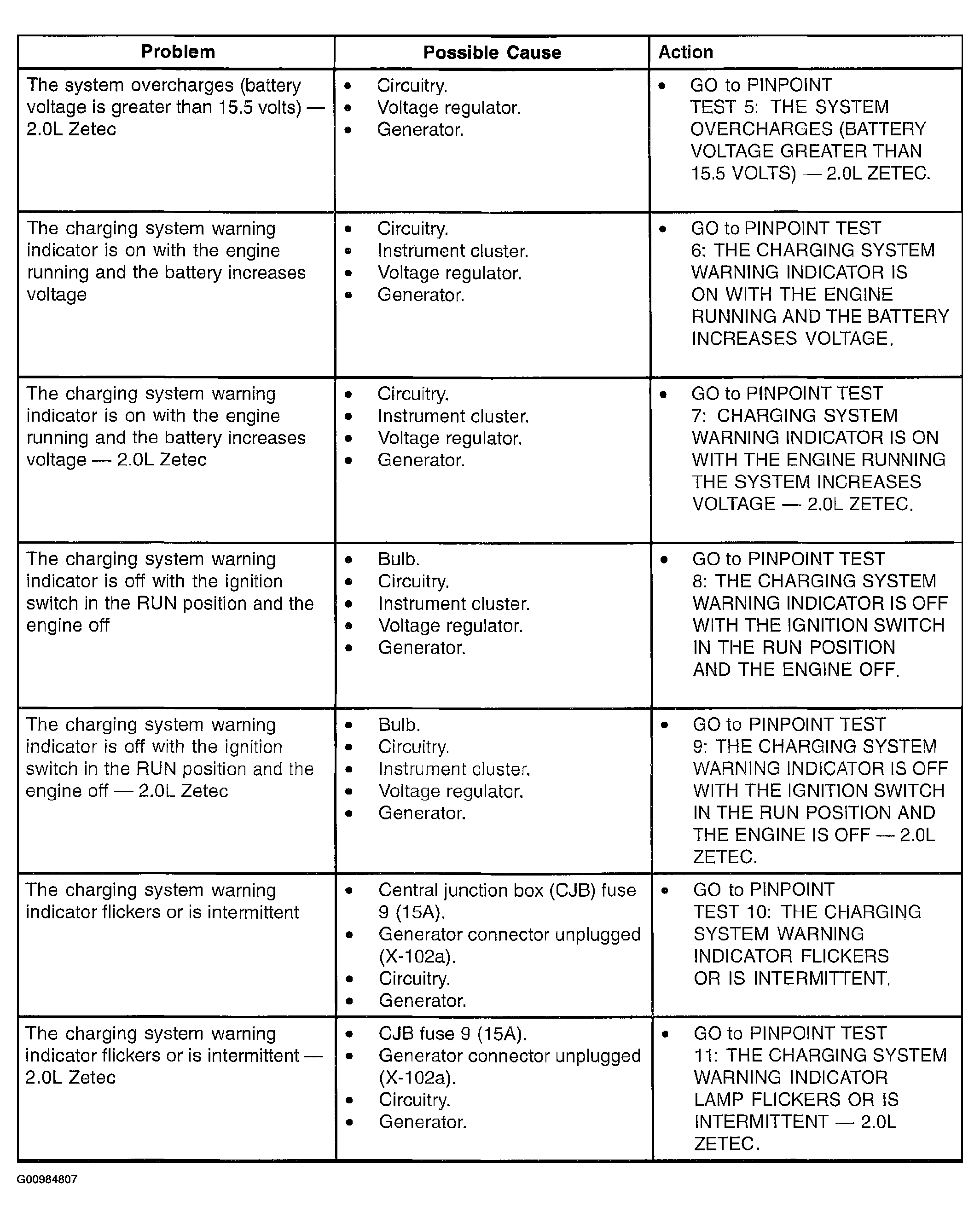

Fig 2: Symptom Troubleshooting Procedure - Charging System (2 Of 3)
Courtesy of FORD MOTOR CO.

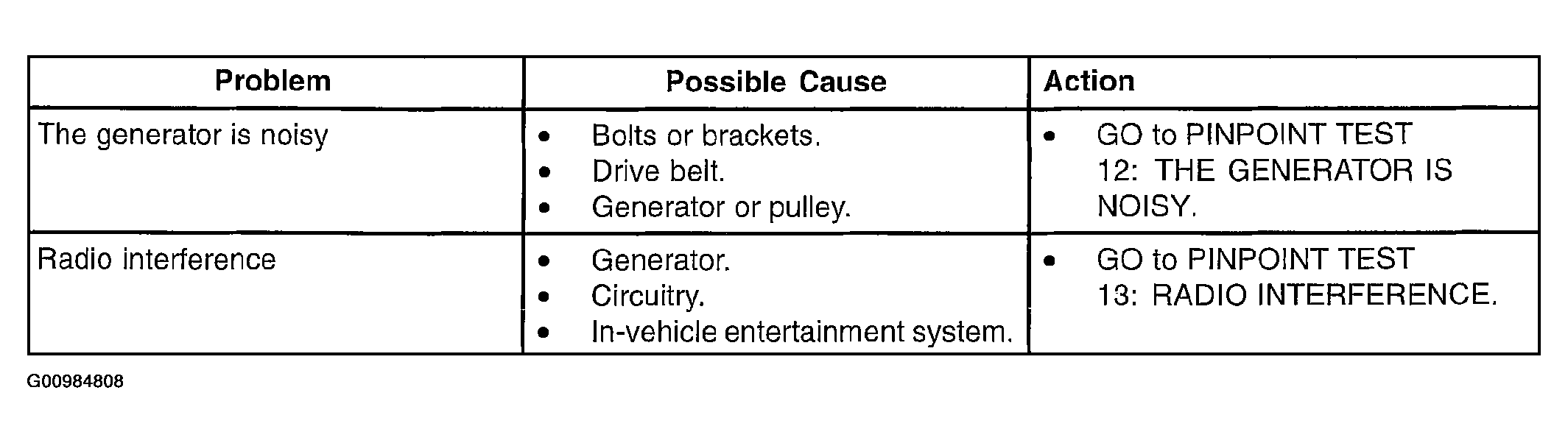

Fig 3: Symptom Troubleshooting Procedure - Charging System (3 Of 3)
