Mil/TCIL Never On And Mil/TCIL Always On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

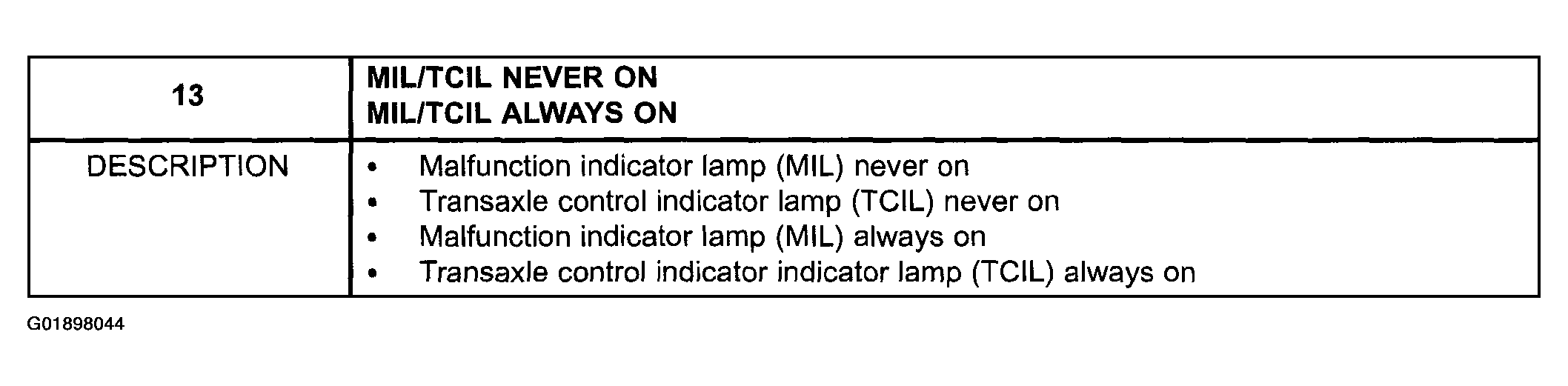

Fig 1: MIL/TCIL Never On And MIL/TCIL Always On Diagnostic Procedure
G01898044Courtesy of FORD MOTOR CO.

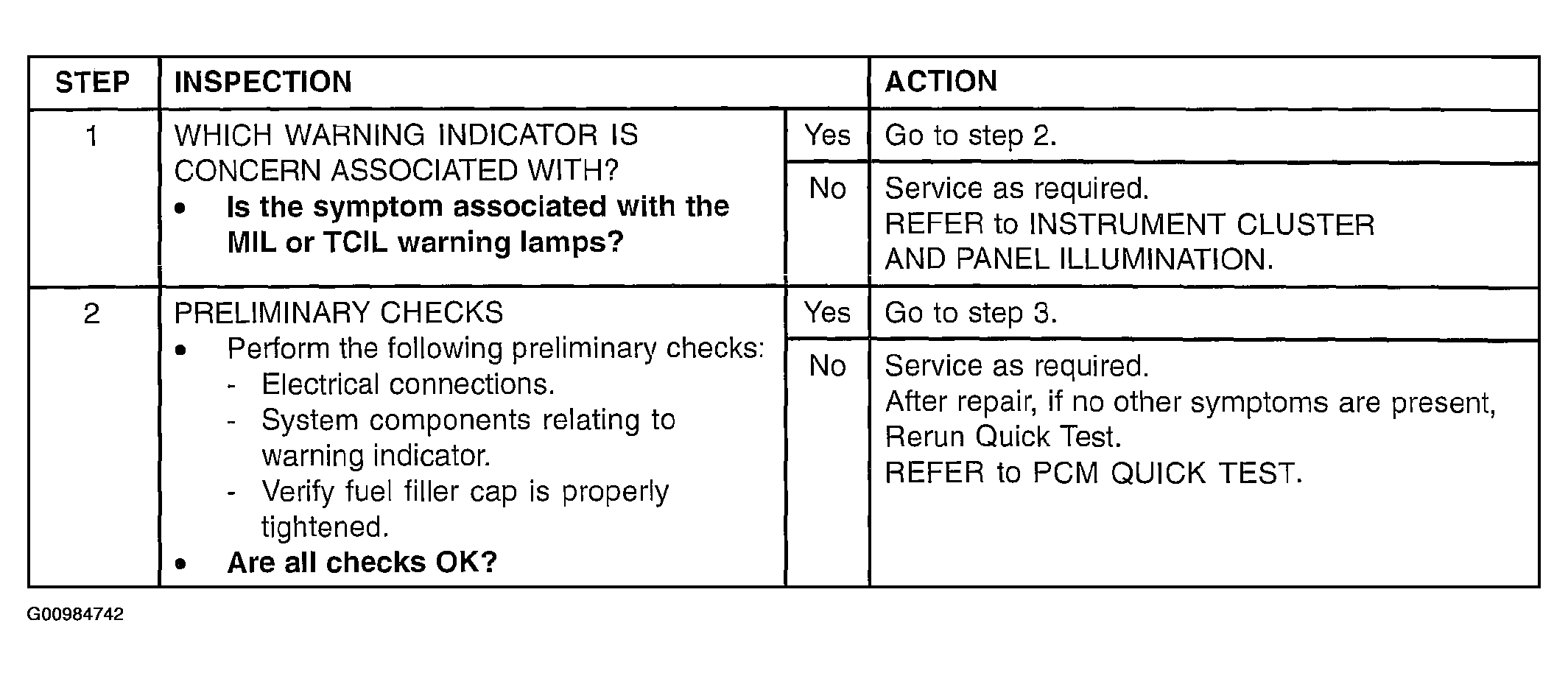

Fig 2: MIL/TCIL Never On And MIL/TCIL Always On Inspection Procedure (1 Of 2)
G00984742Courtesy of FORD MOTOR CO.

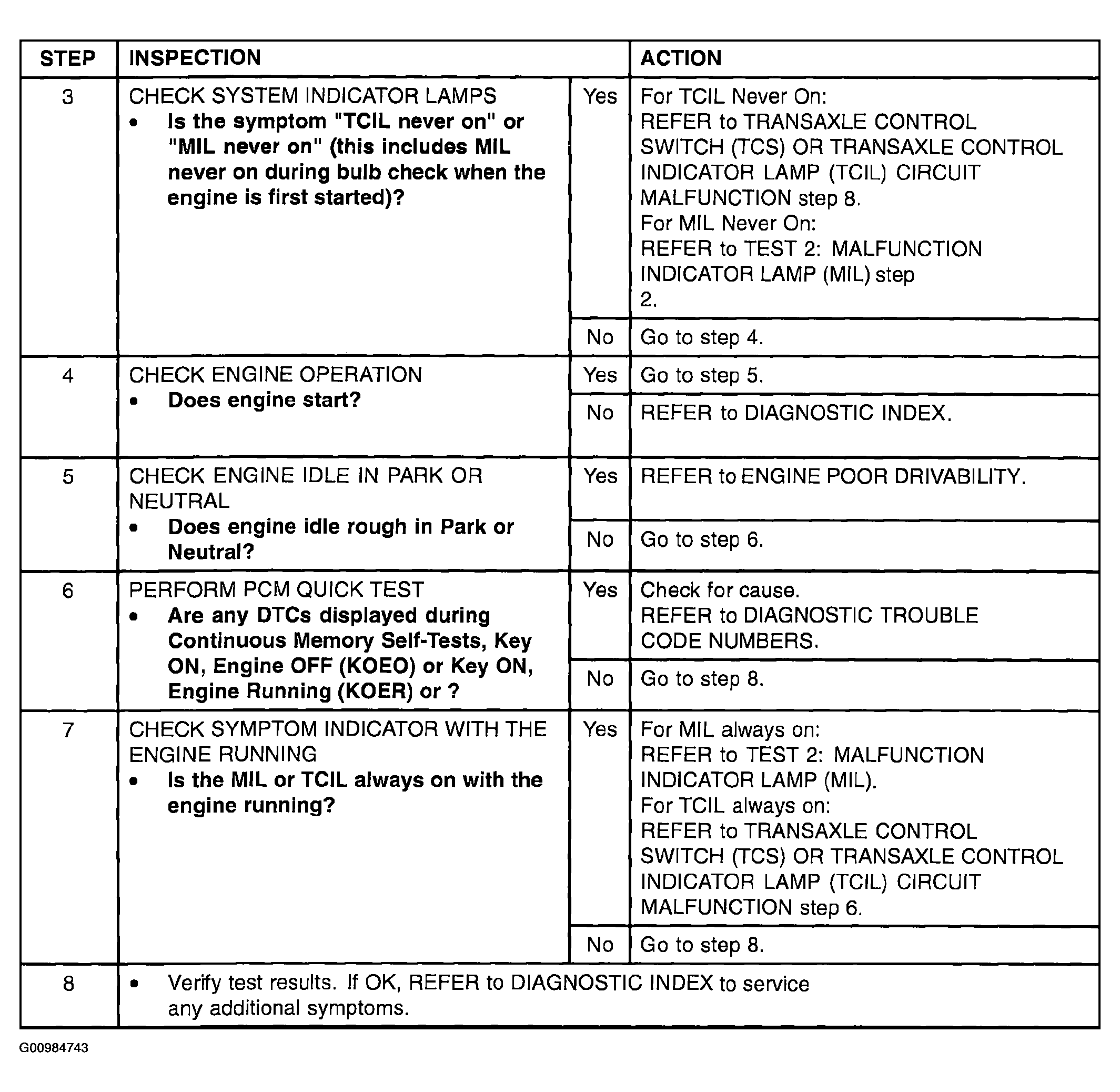

Fig 3: MIL/TCIL Never On And MIL/TCIL Always On Inspection Procedure (2 Of 2)
G00984743Courtesy of FORD MOTOR CO.
