Pinpoint Test 3: Generic Electronic Module (Gem) Symptom Troubleshooting

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

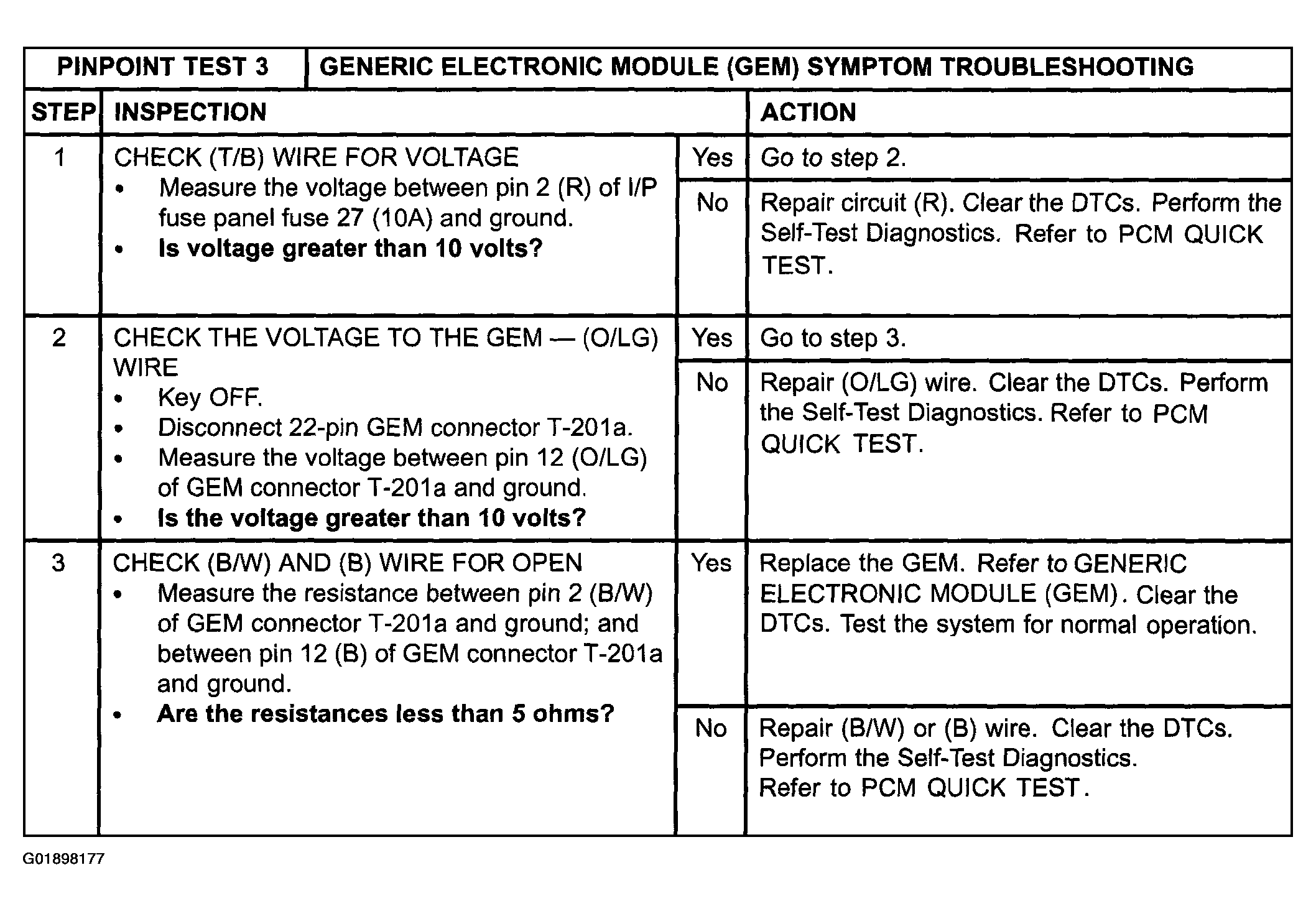

Fig 1: Generic Electronic Module Symptom Troubleshooting Procedure
G01898177Courtesy of FORD MOTOR CO.
