Fast Idle

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fast Idle Diagnostic Procedure

Courtesy of FORD MOTOR CO.

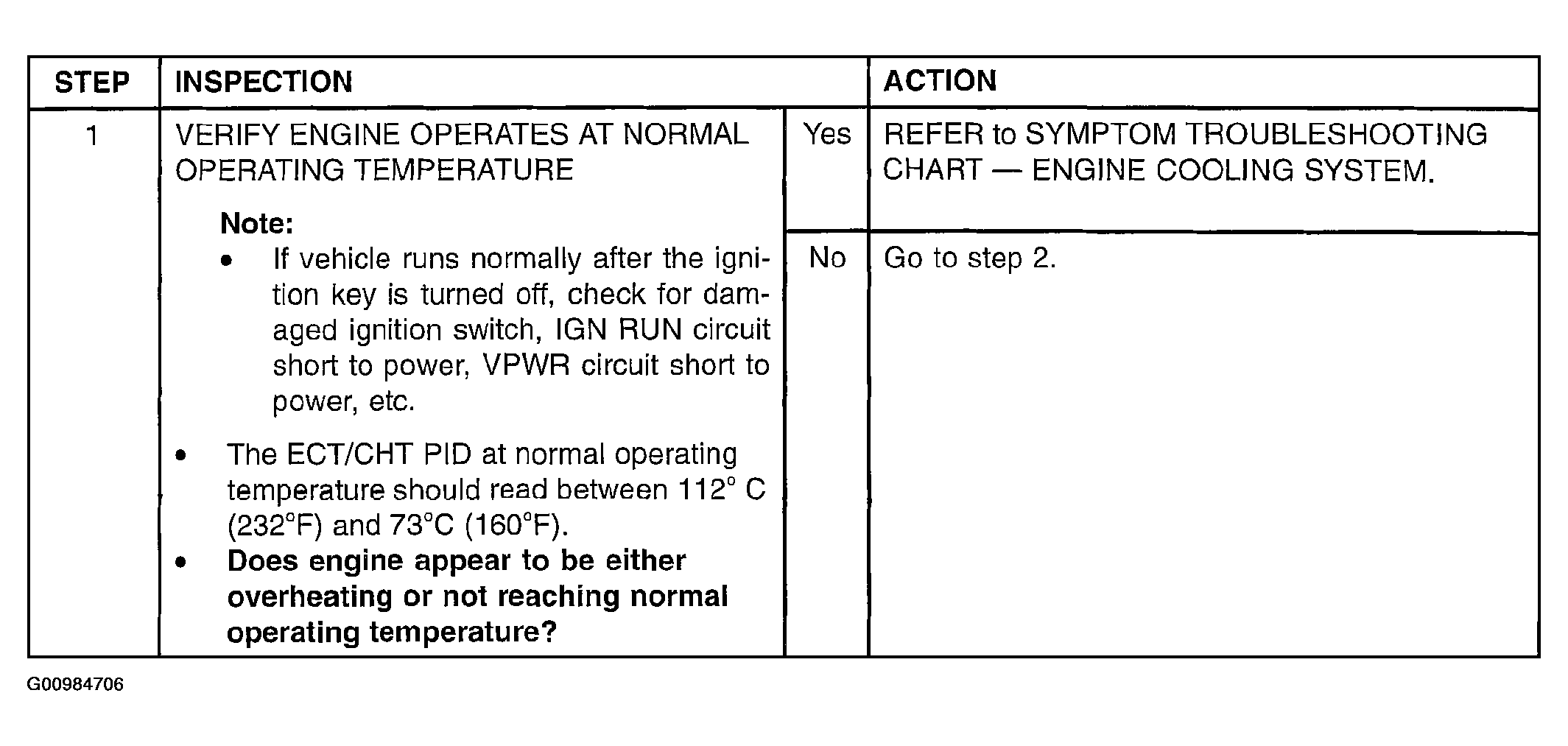

Fig 2: Fast Idle Inspection Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

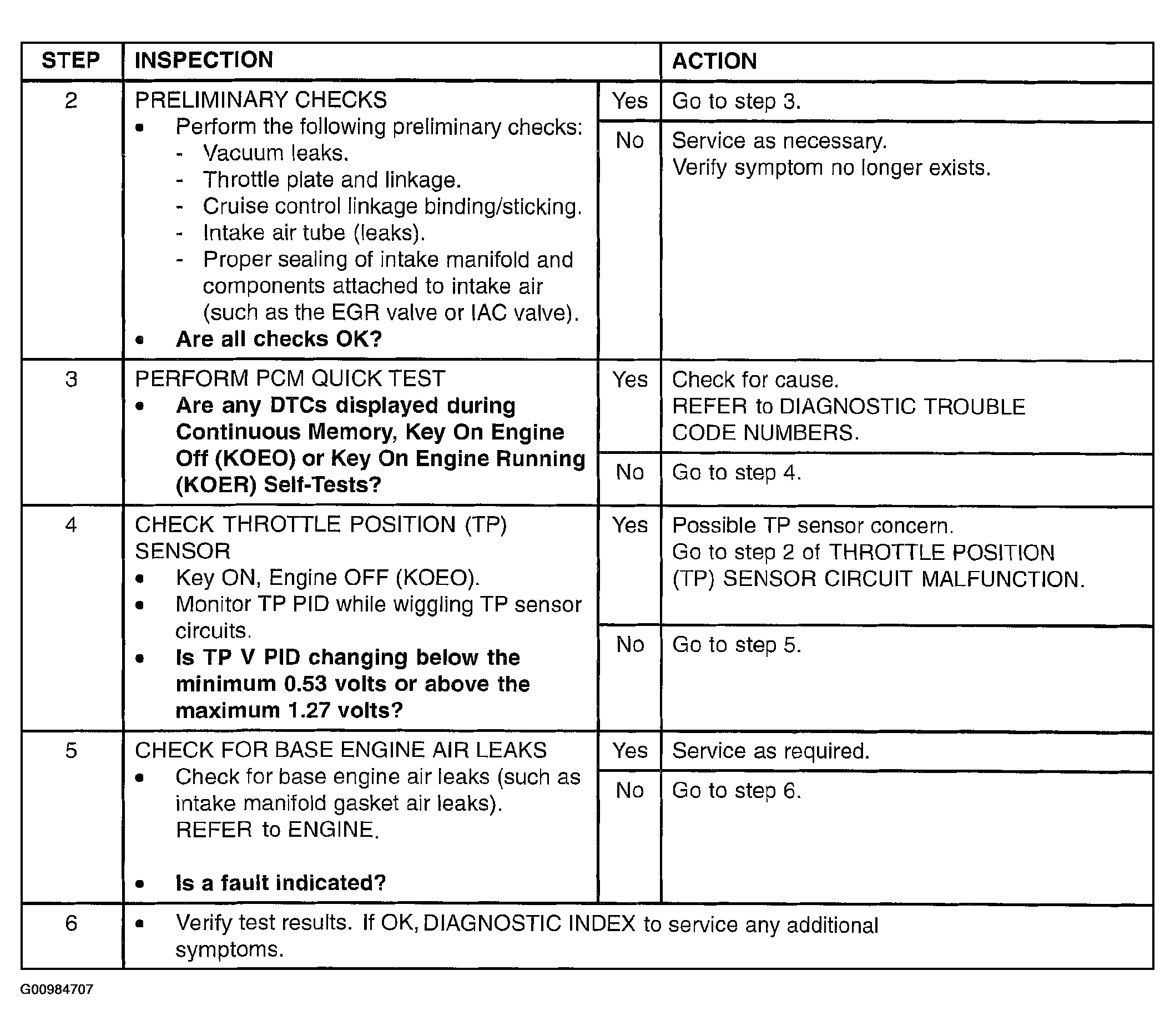

Fig 3: Fast Idle Inspection Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
