WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exhaust System Concerns Diagnostic Procedure
Courtesy of FORD MOTOR CO.

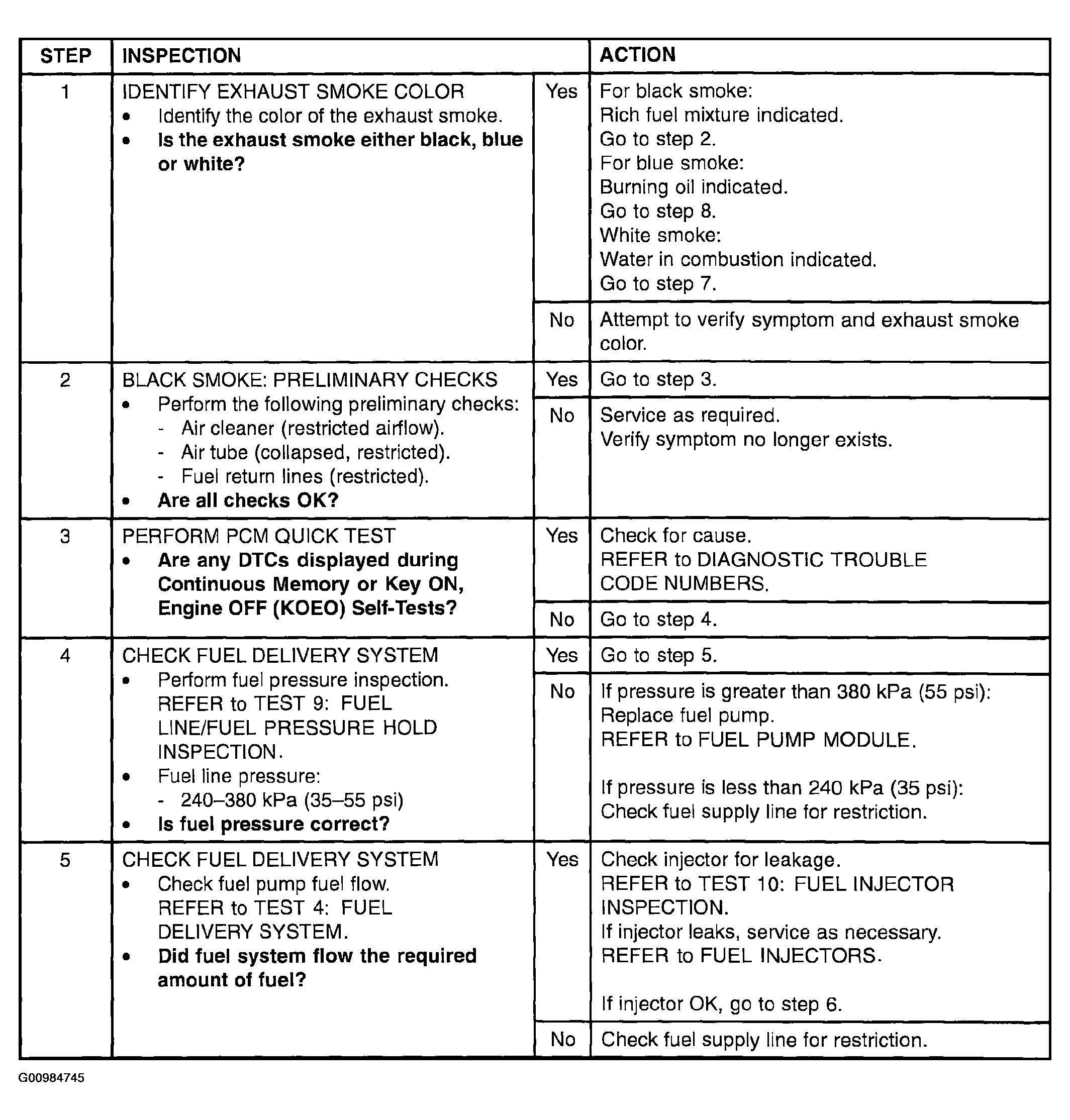

Fig 2: Exhaust System Concerns Inspection Procedure (1 Of 3)
Courtesy of FORD MOTOR CO.

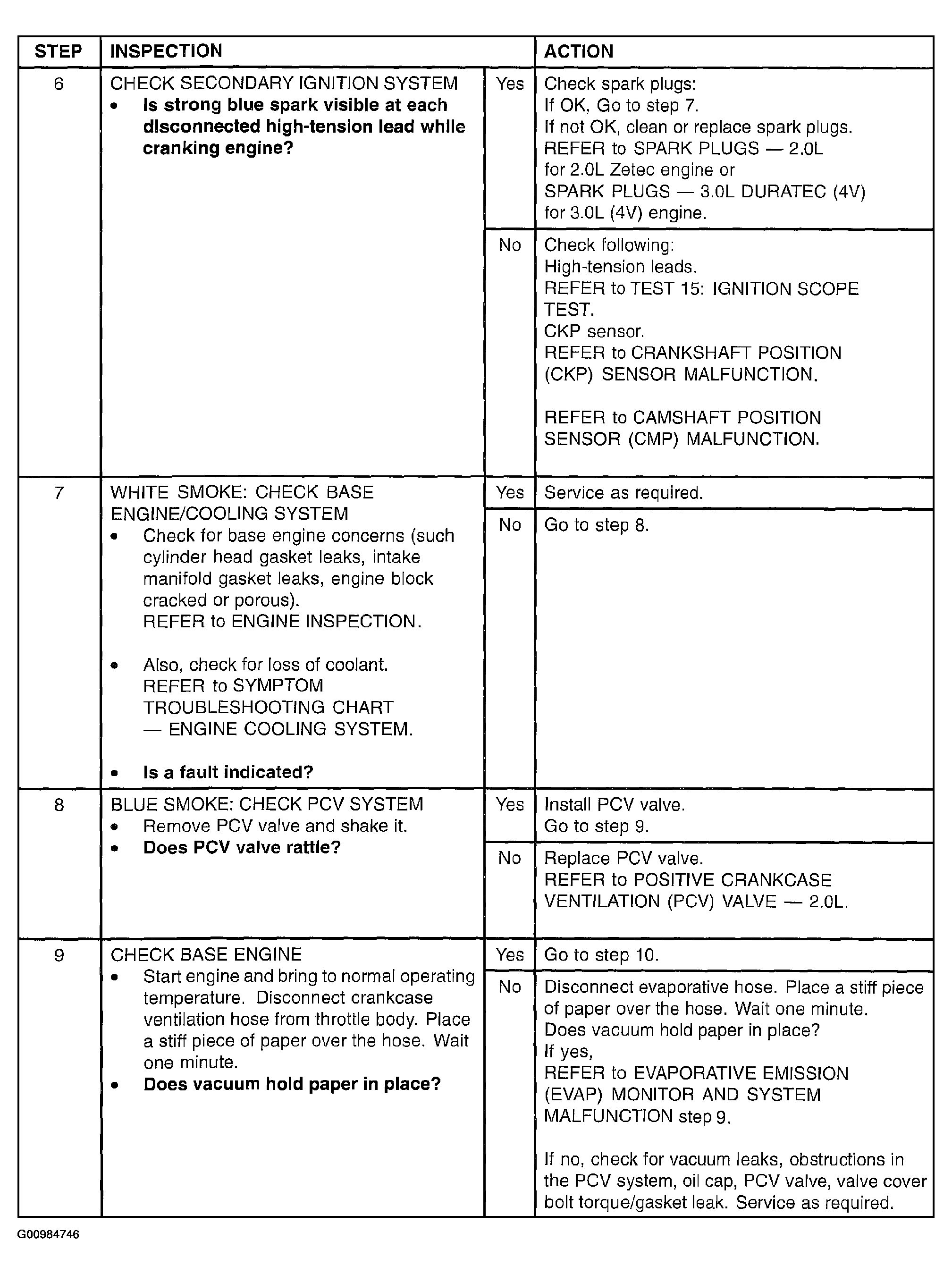

Fig 3: Exhaust System Concerns Inspection Procedure (2 Of 3)
Courtesy of FORD MOTOR CO.

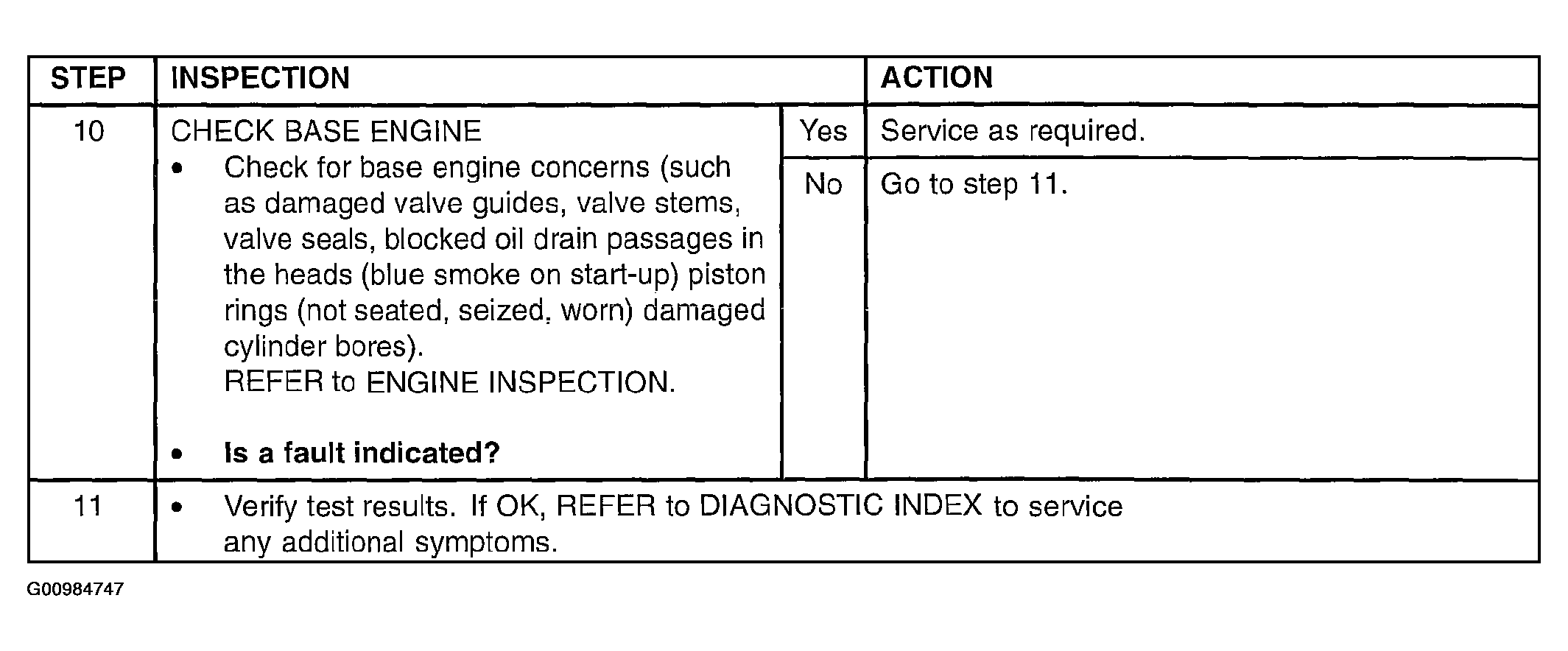

Fig 4: Exhaust System Concerns Inspection Procedure (3 Of 3)
