Engine Poor DRIVEABILITY

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

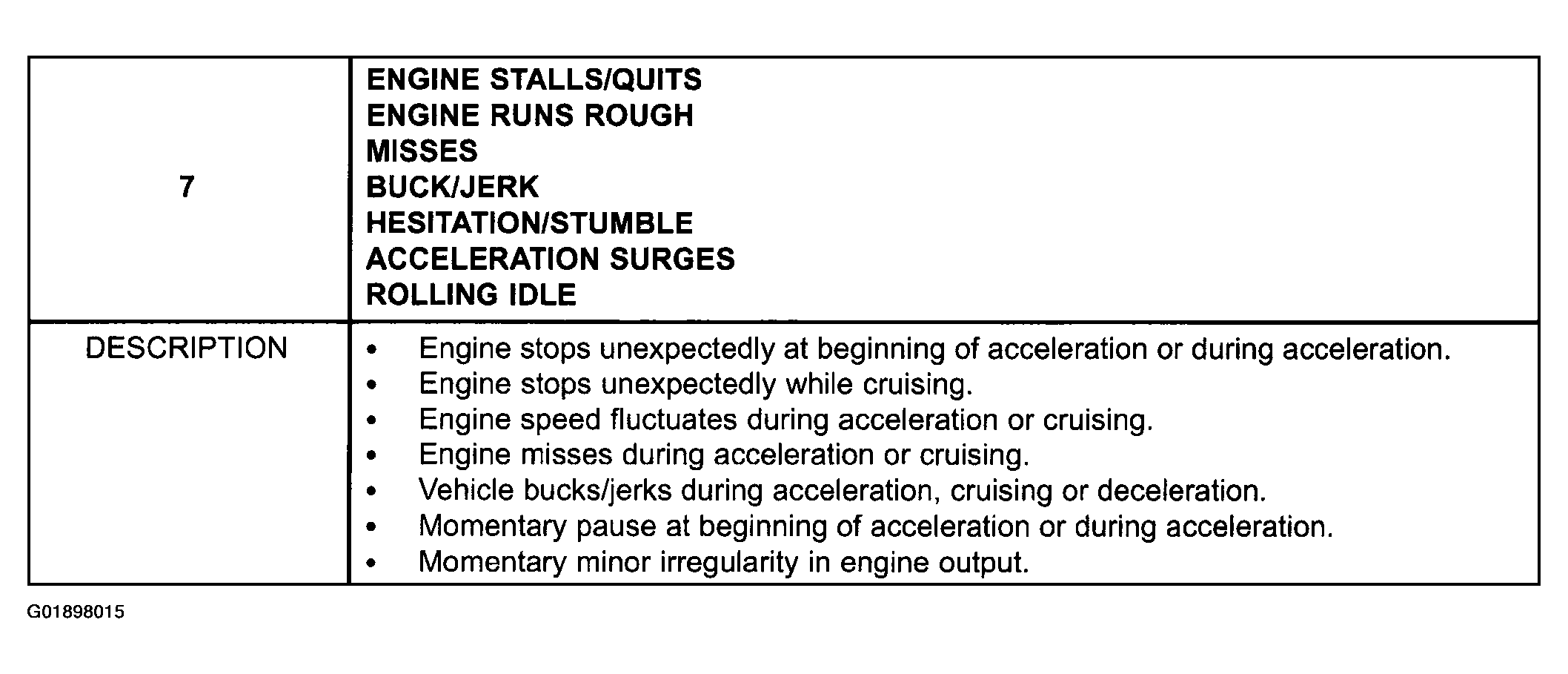

Fig 1: Engine Poor Driveability Diagnostic Procedure

Courtesy of FORD MOTOR CO.

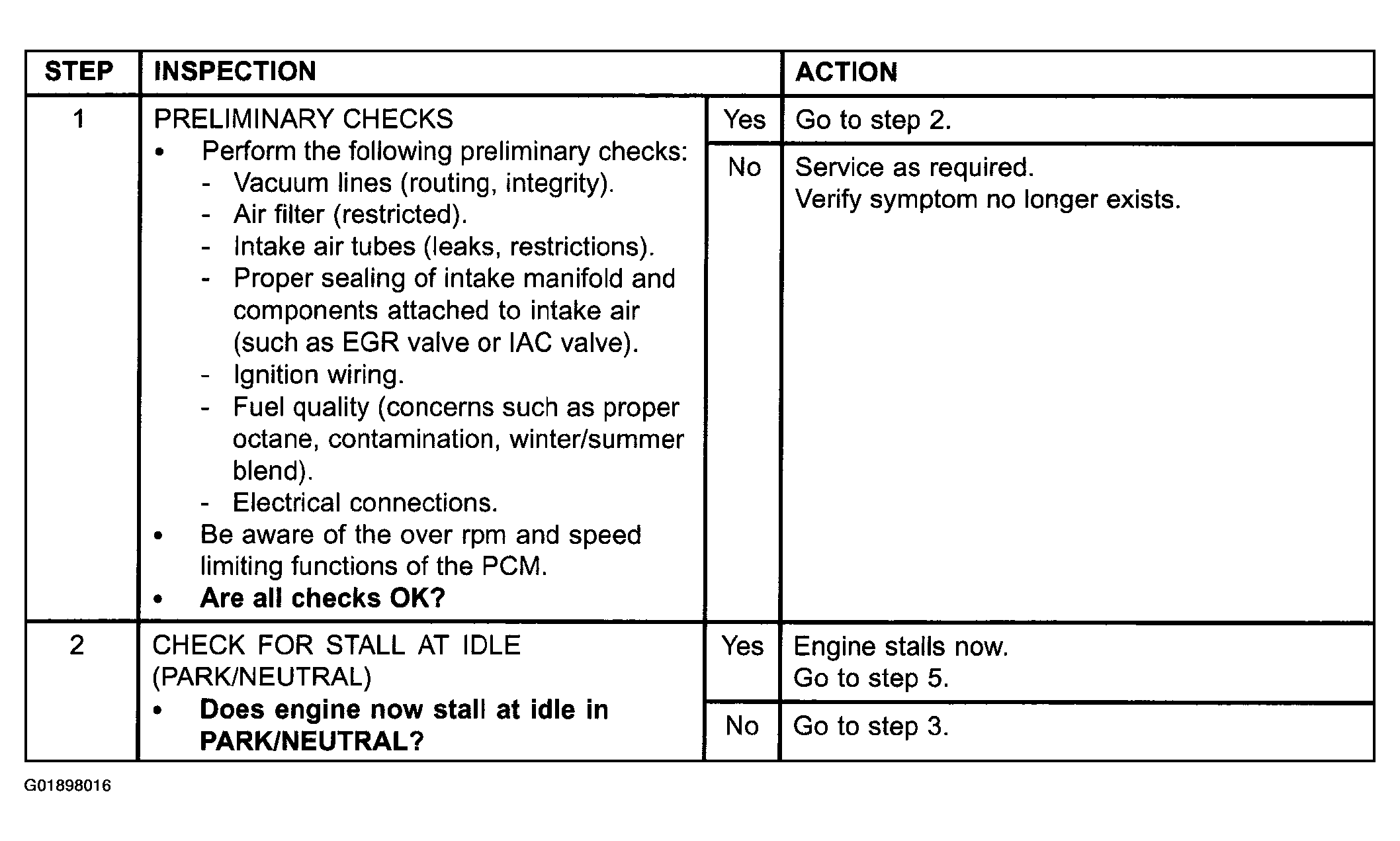

Fig 2: Engine Poor Driveability Inspection Procedure (1 Of 5)

Courtesy of FORD MOTOR CO.

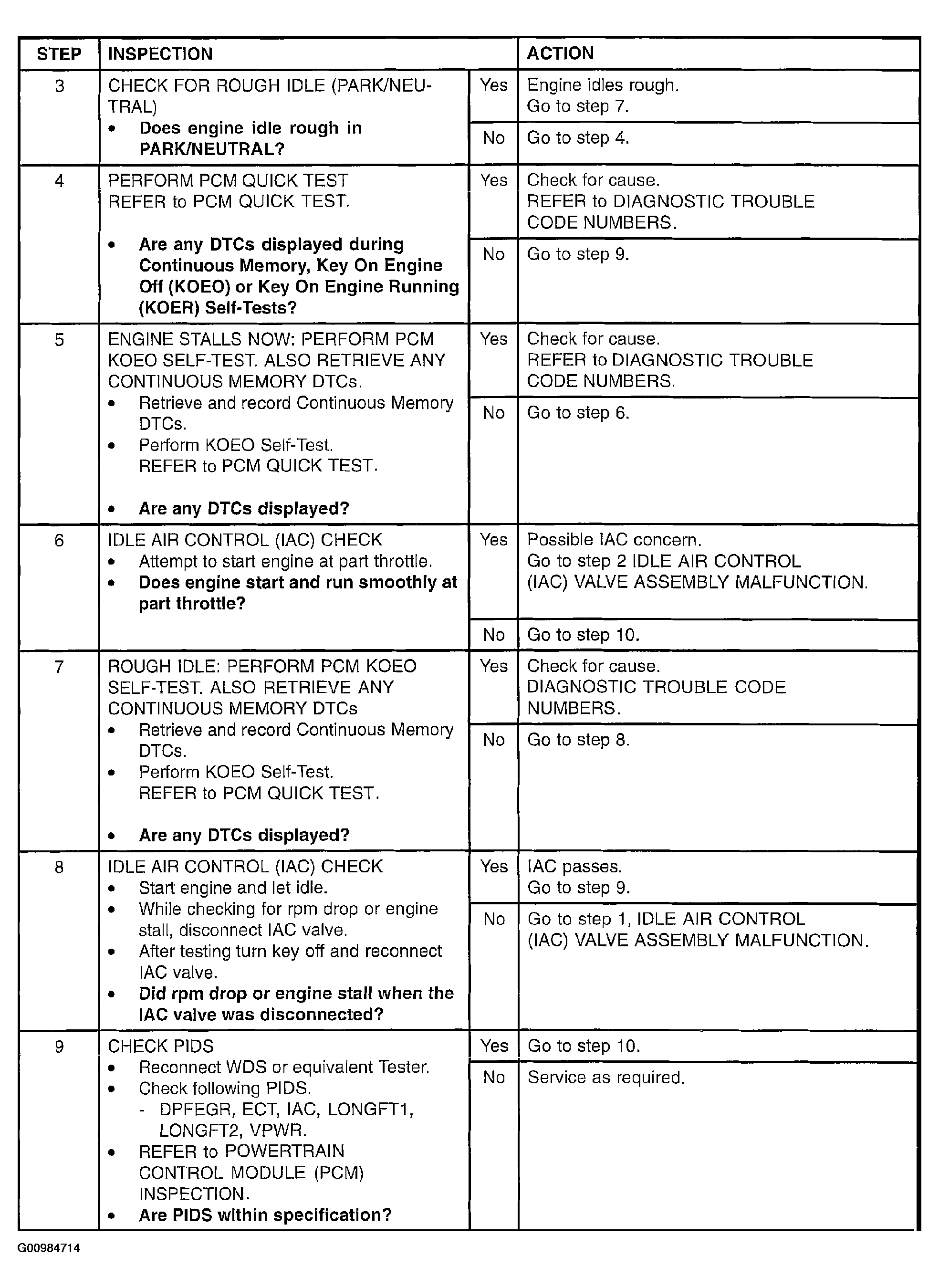

Fig 3: Engine Poor Driveability Inspection Procedure (2 Of 5)

Courtesy of FORD MOTOR CO.

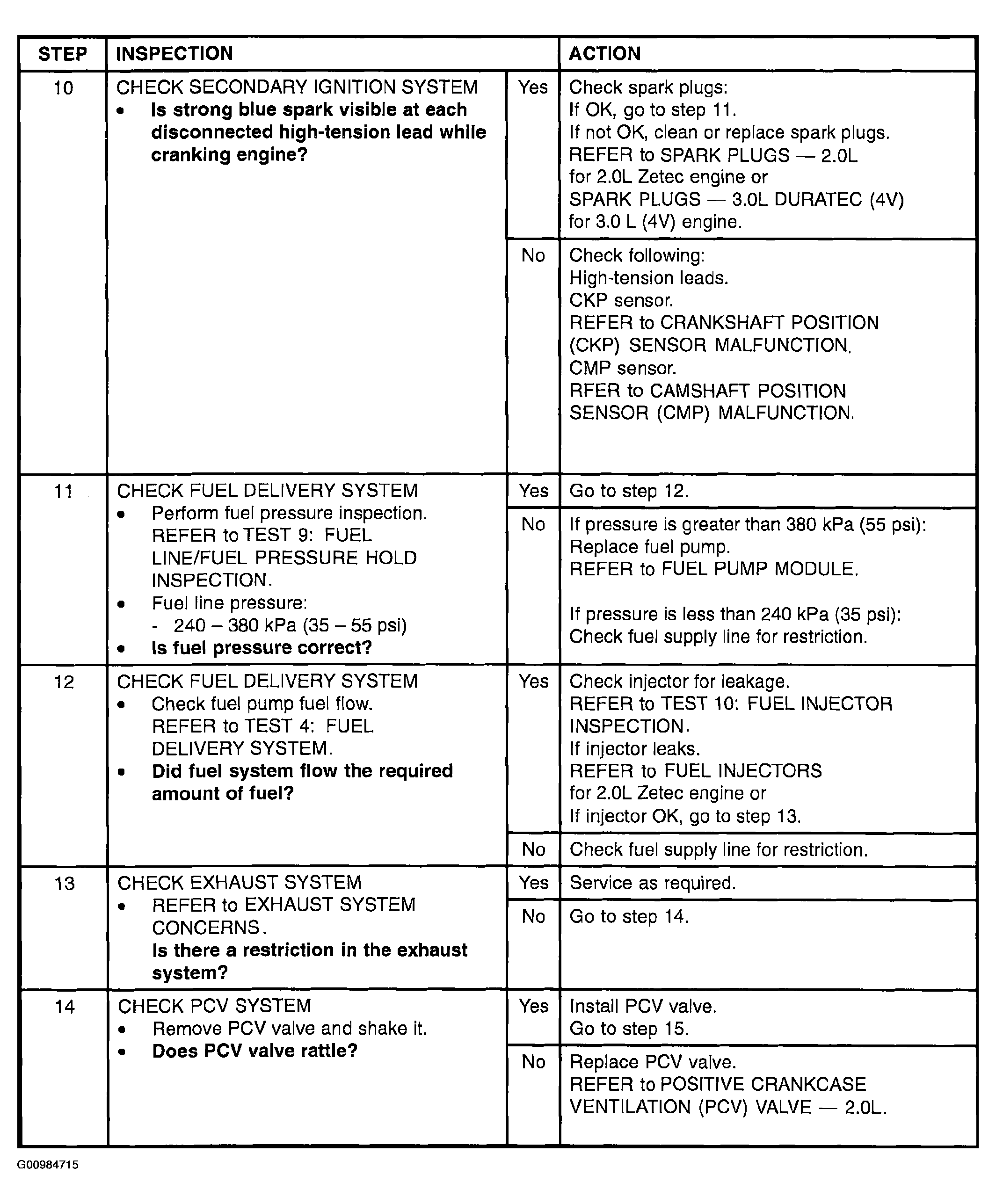

Fig 4: Engine Poor Driveability Inspection Procedure (3 Of 5)

Courtesy of FORD MOTOR CO.

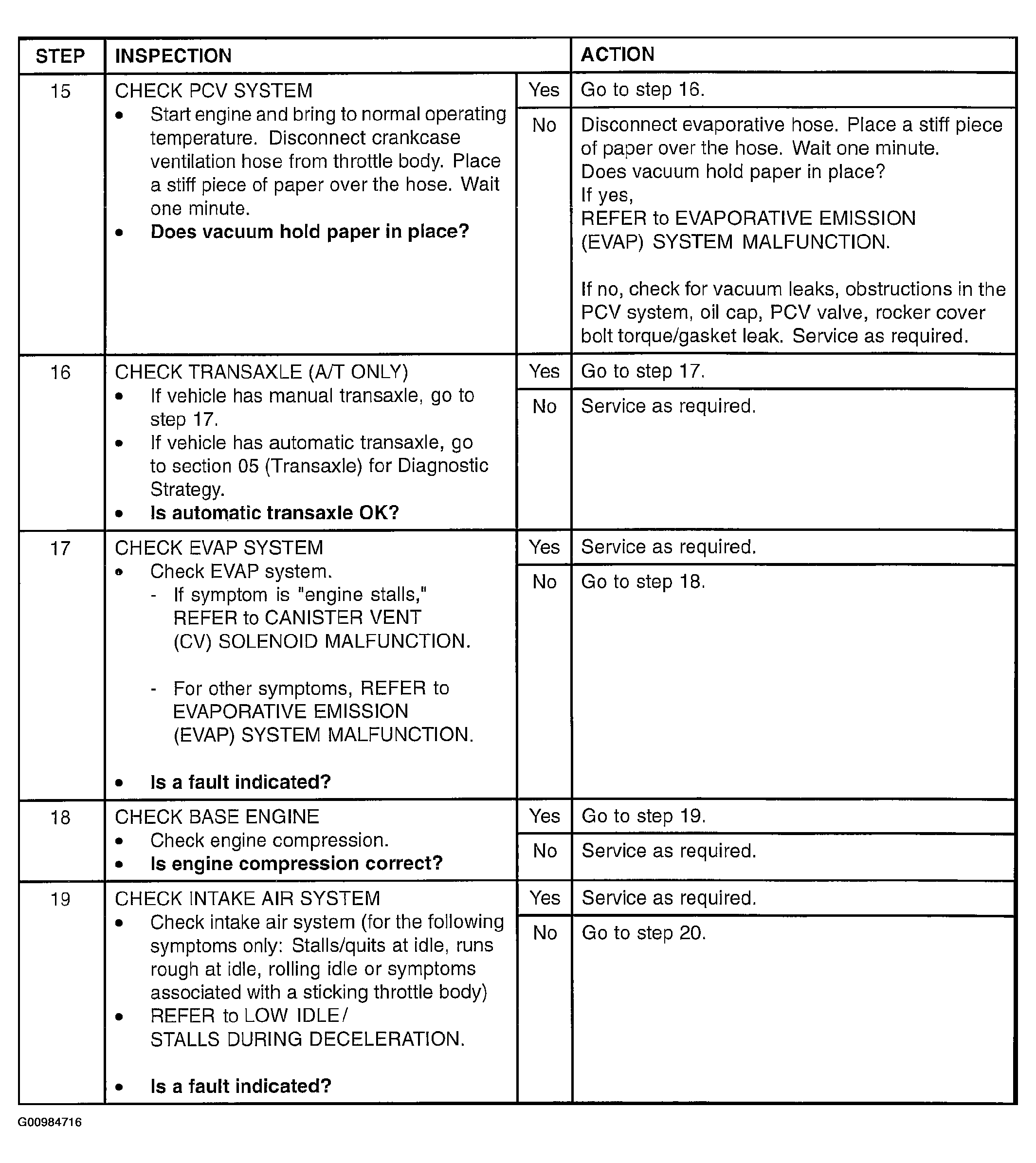

Fig 5: Engine Poor Driveability Inspection Procedure (4 Of 5)

Courtesy of FORD MOTOR CO.

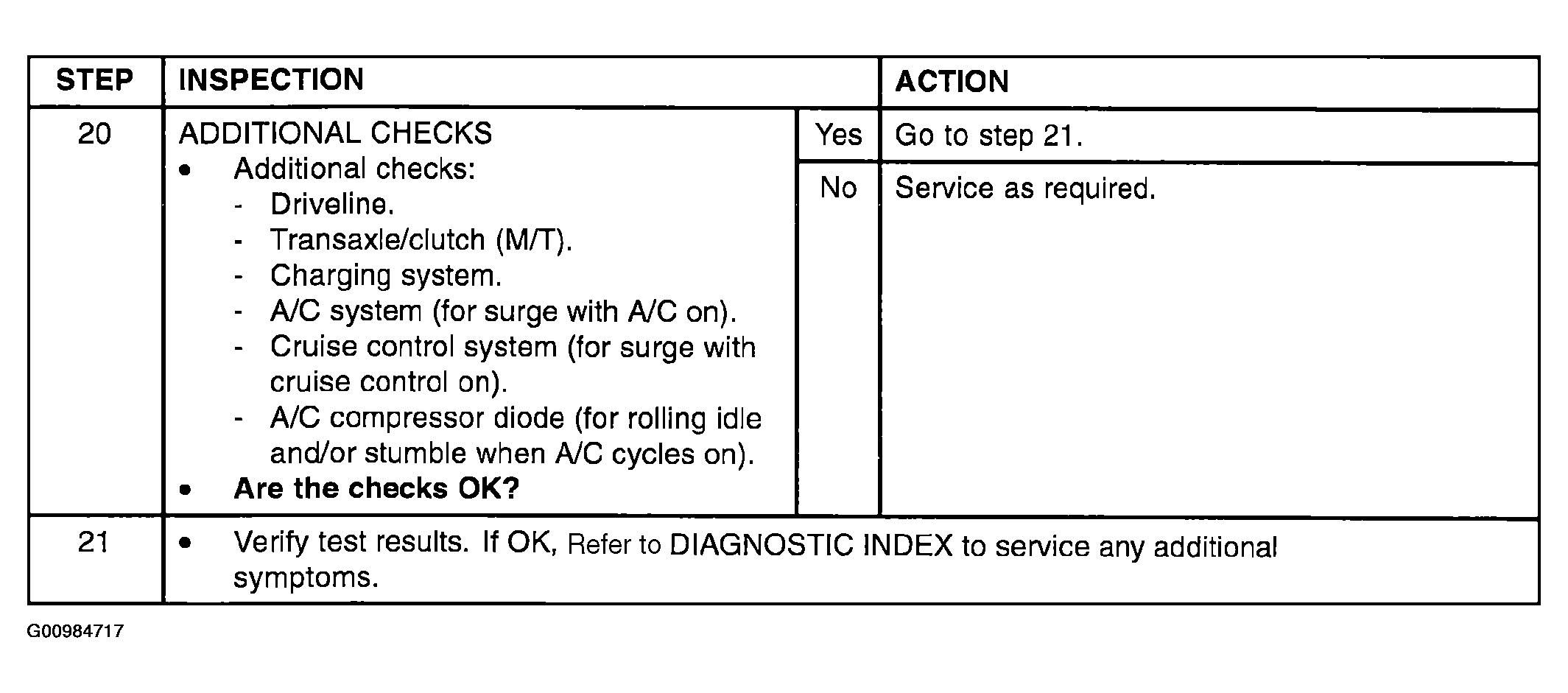

Fig 6: Engine Poor Driveability Inspection Procedure (5 Of 5)

Courtesy of FORD MOTOR CO.
