DTC P1780: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

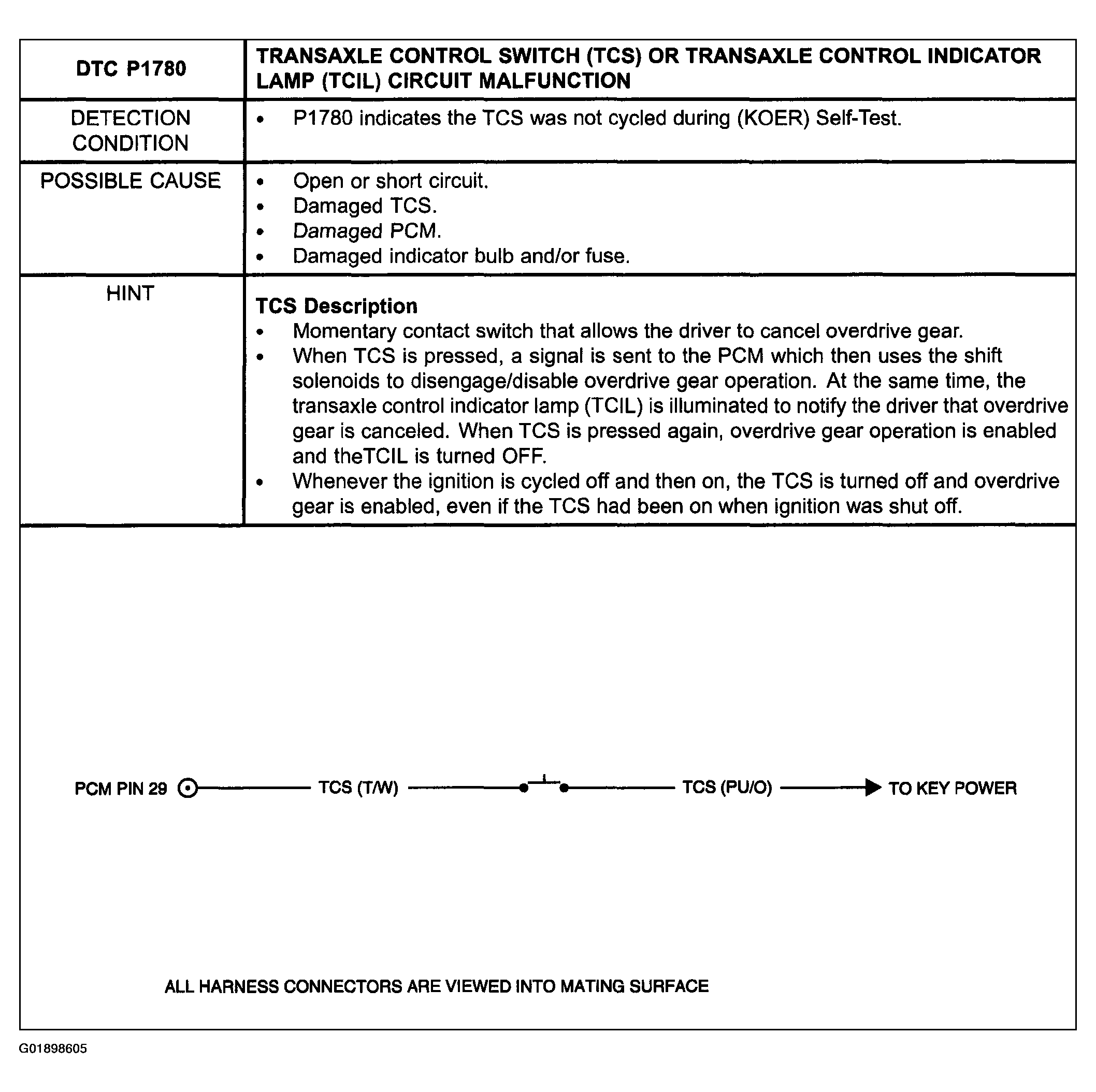

Fig 1: Transaxle Control Switch Or Transaxle Control Indicator Lamp Circuit Malfunction Troubleshooting Procedure

Courtesy of FORD MOTOR CO.

Fig 2: Transaxle Control Switch Or Transaxle Control Indicator Lamp Circuit Malfunction Inspection Procedure (1 Of 3)

Courtesy of FORD MOTOR CO.

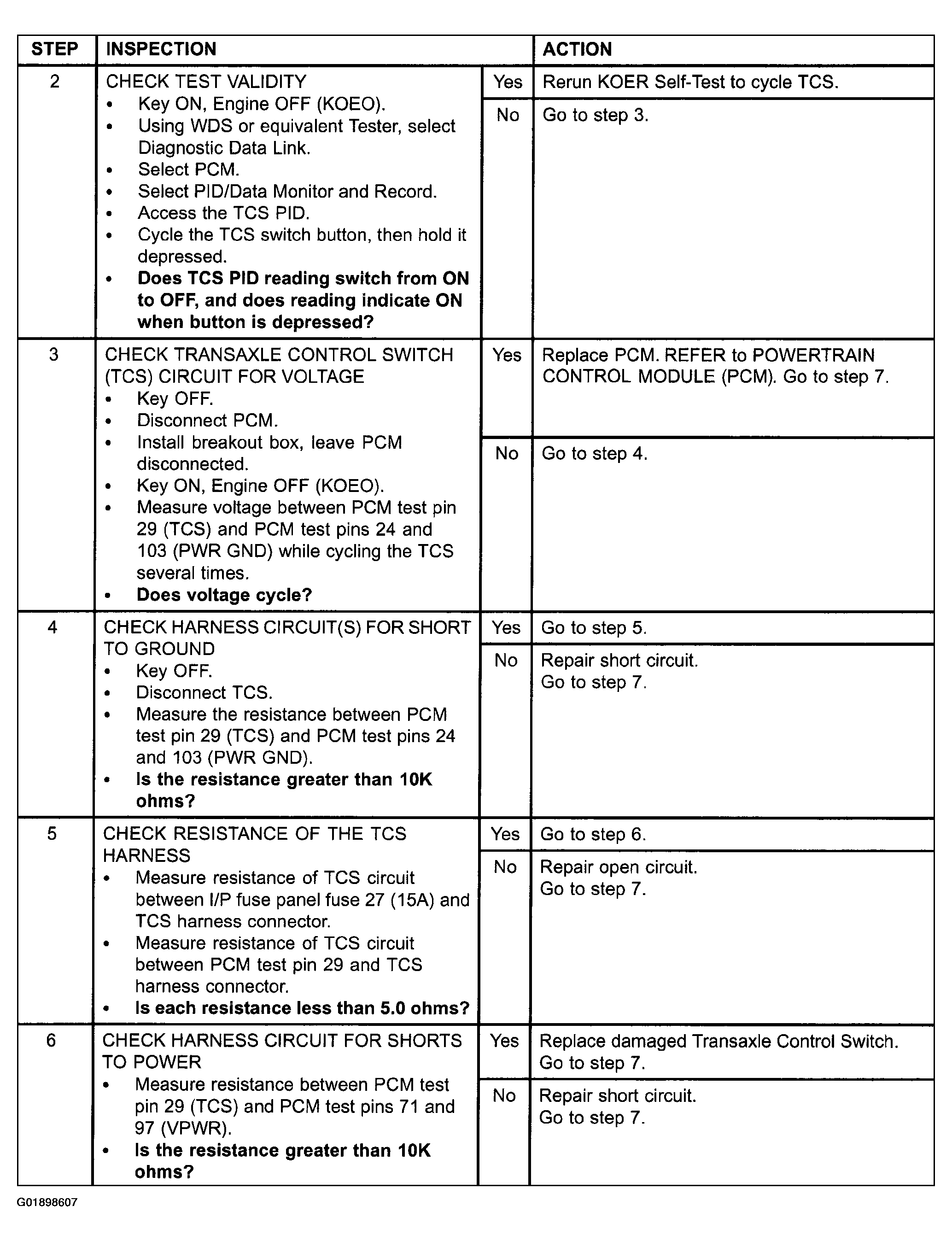

Fig 3: Transaxle Control Switch Or Transaxle Control Indicator Lamp Circuit Malfunction Inspection Procedure (2 Of 3)

Courtesy of FORD MOTOR CO.

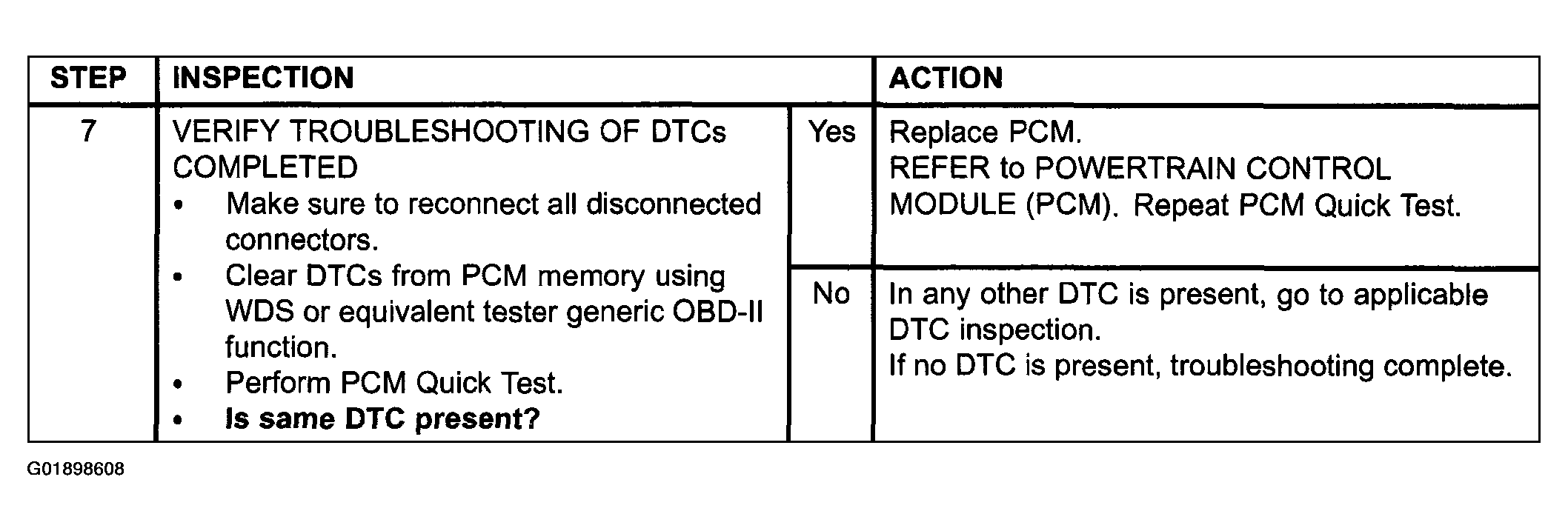

Fig 4: Transaxle Control Switch Or Transaxle Control Indicator Lamp Circuit Malfunction Inspection Procedure (3 Of 3)

Courtesy of FORD MOTOR CO.
