DTC P1506: Idle Air Control (IAC) System Malfunction
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

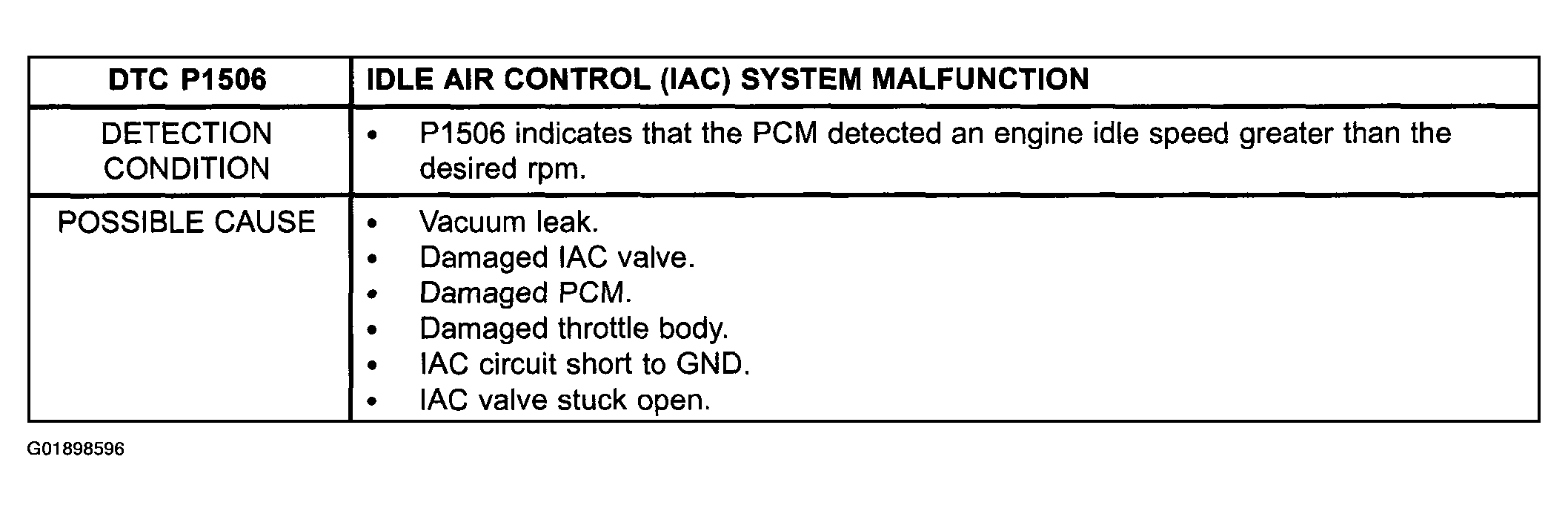

Fig 1: Idle Air Control System Malfunction Troubleshooting Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

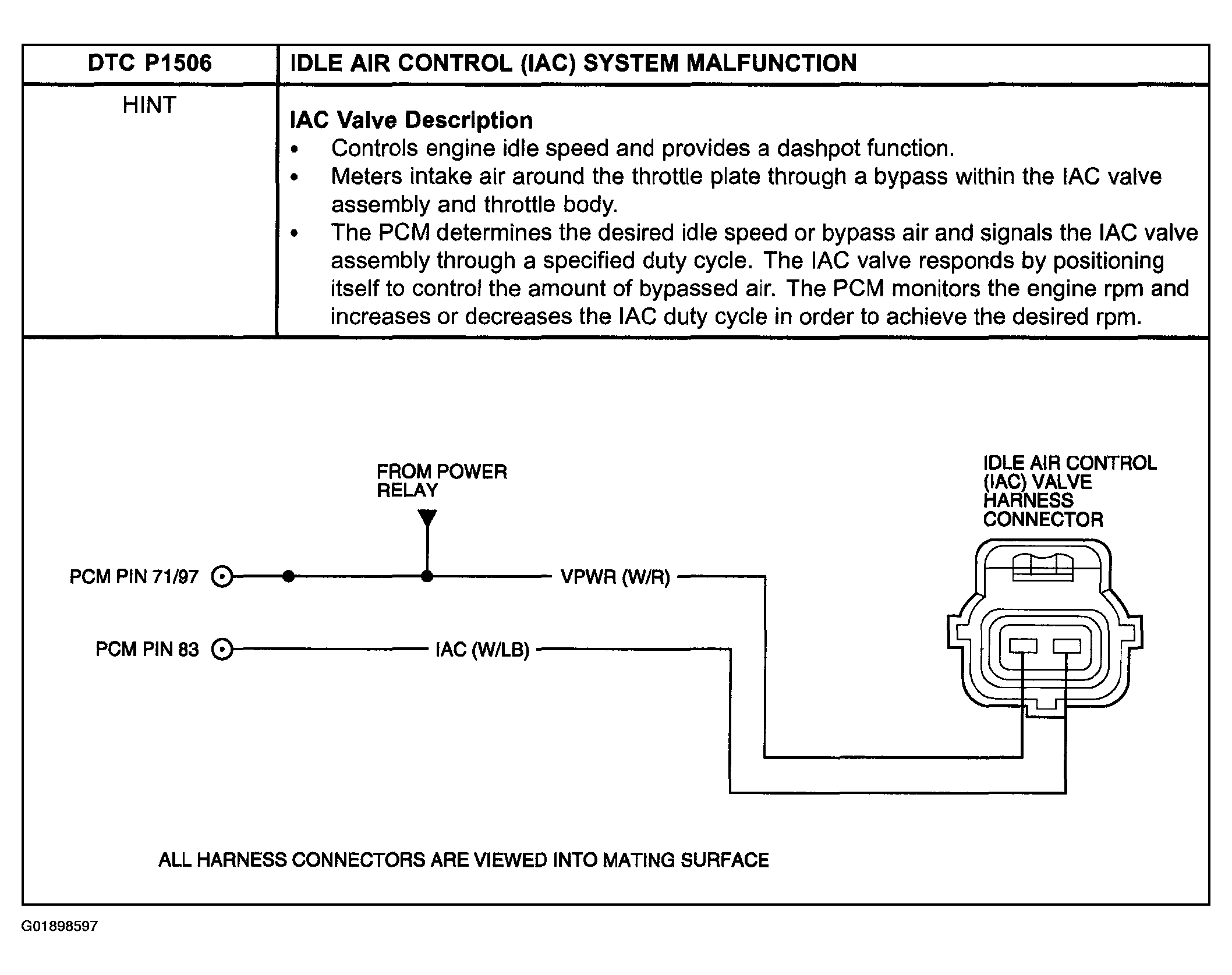

Fig 2: Idle Air Control System Malfunction Troubleshooting Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.

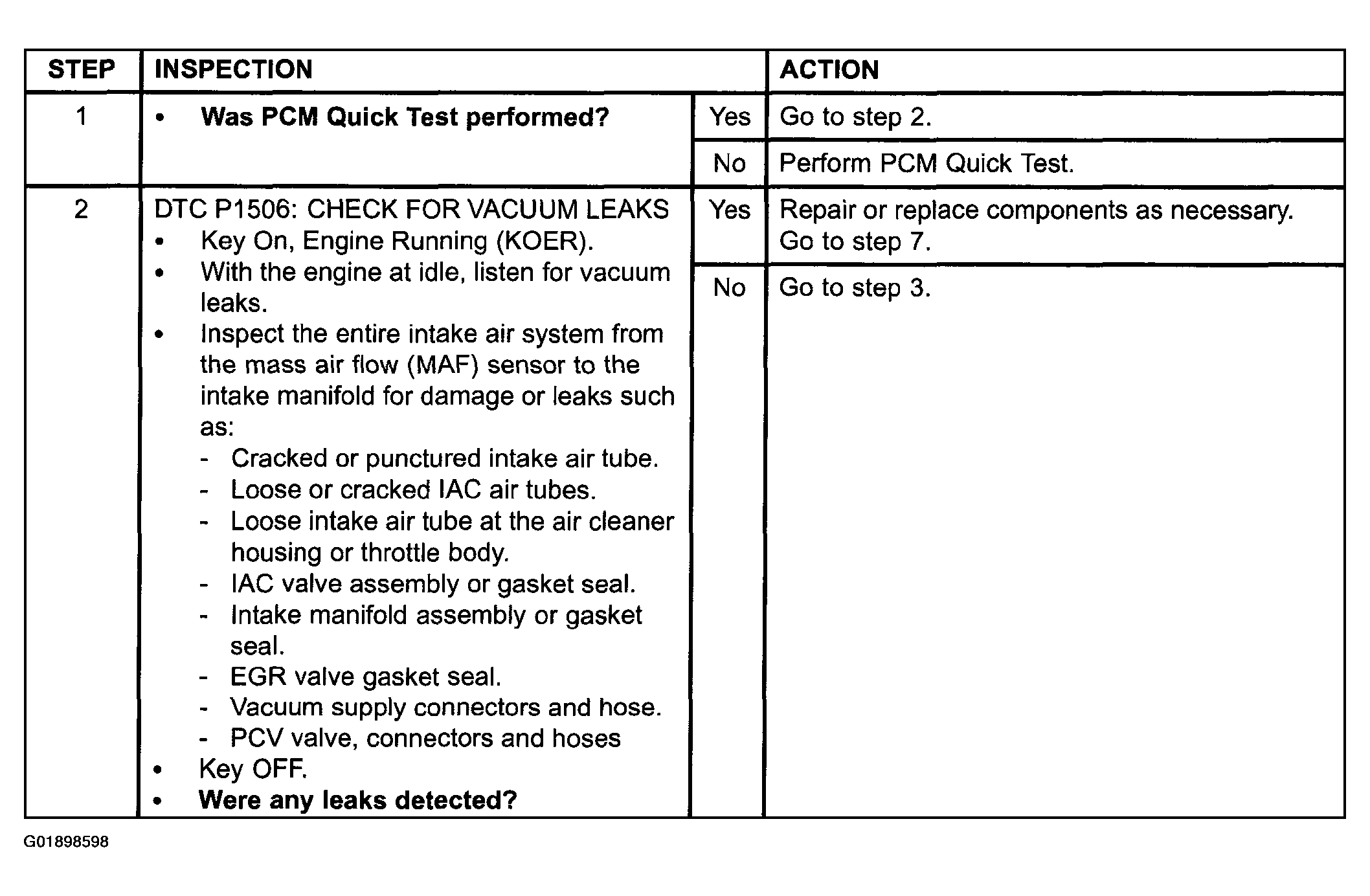

Fig 3: Idle Air Control System Malfunction Inspection Procedure (1 Of 3)
Courtesy of FORD MOTOR CO.

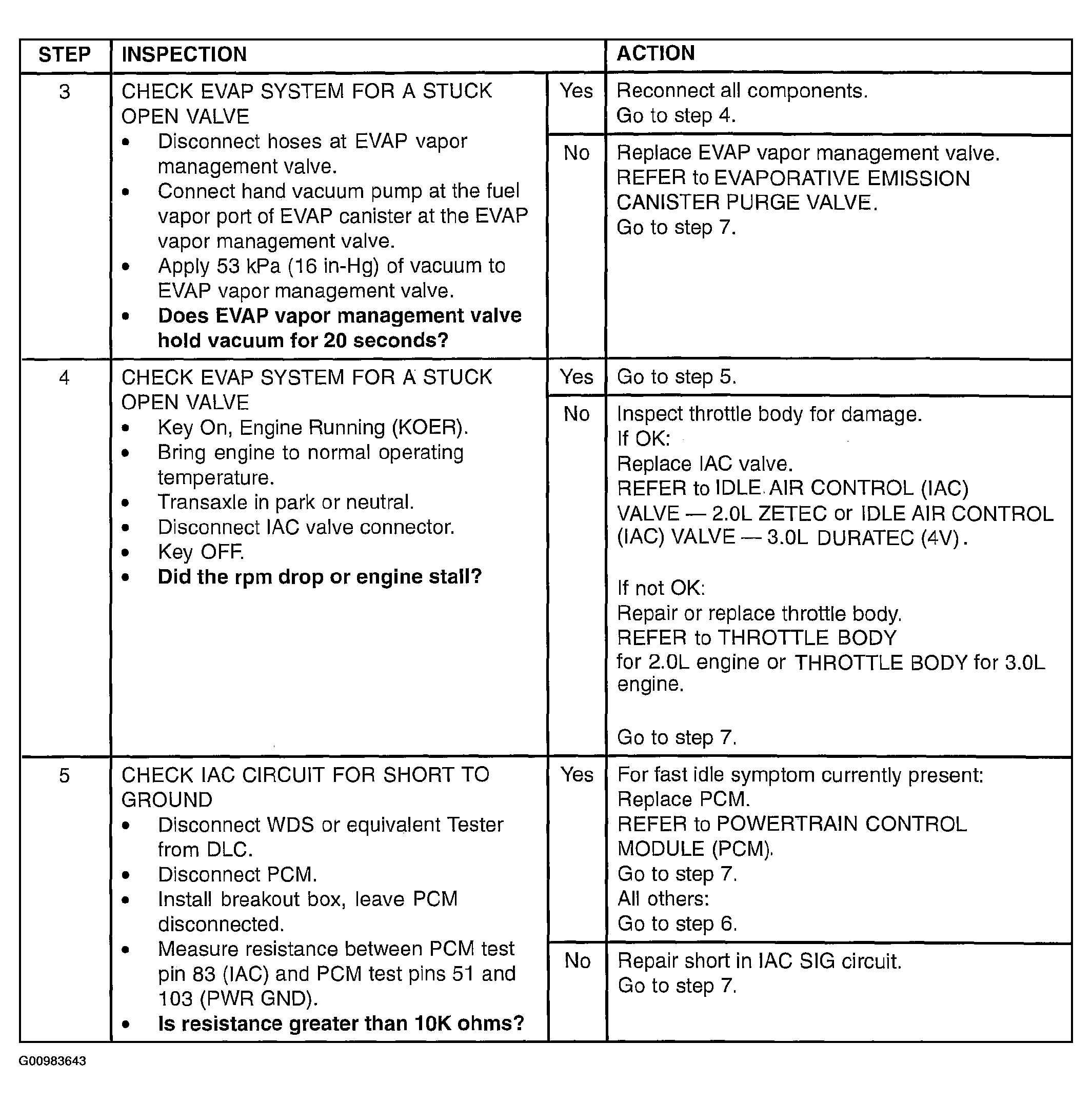

Fig 4: Idle Air Control System Malfunction Inspection Procedure (2 Of 3)
Courtesy of FORD MOTOR CO.

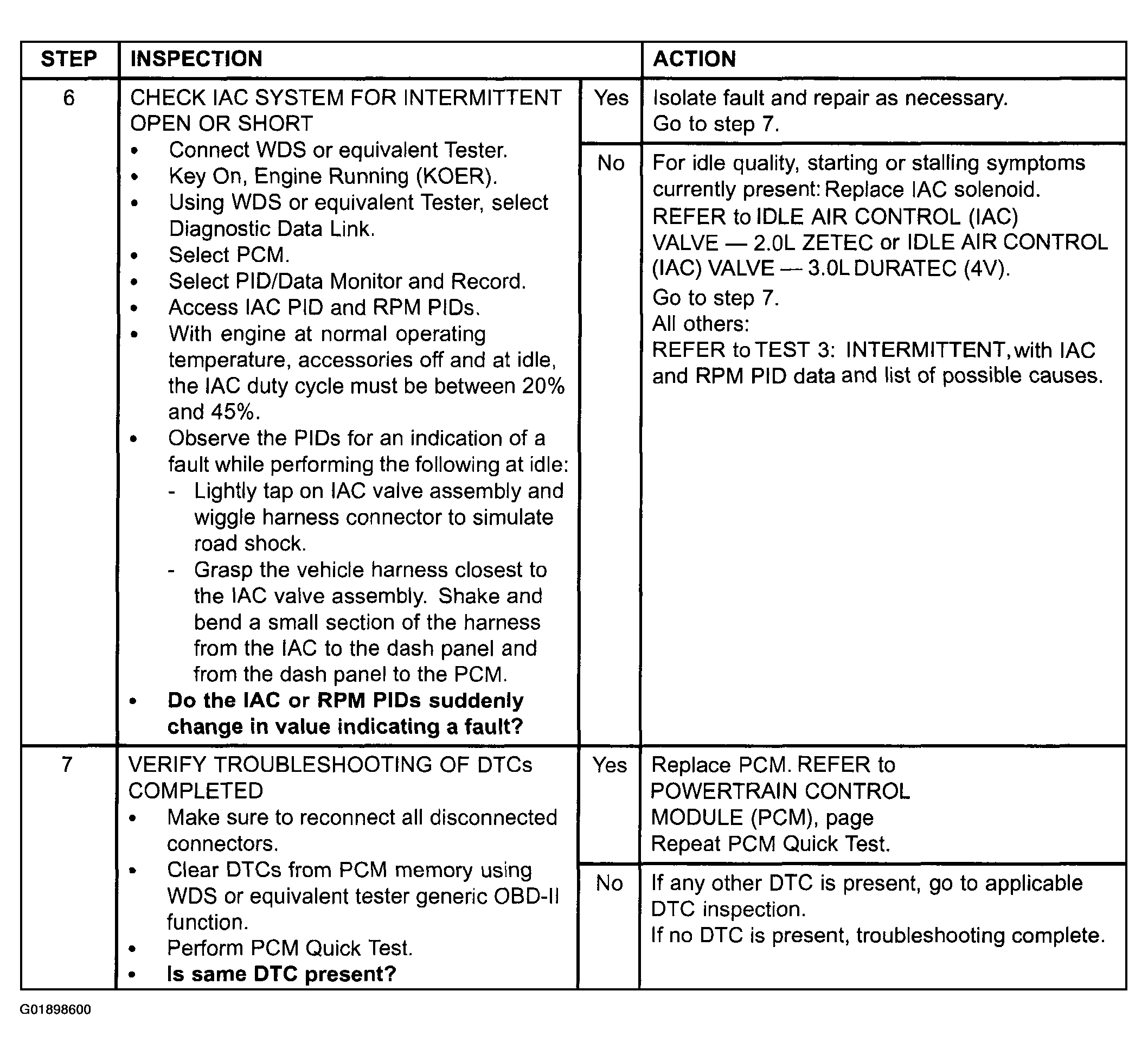

Fig 5: Idle Air Control System Malfunction Inspection Procedure (3 Of 3)
