DTC P1464, P1465: A/C Control Signal (ACCS) Malfunction
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

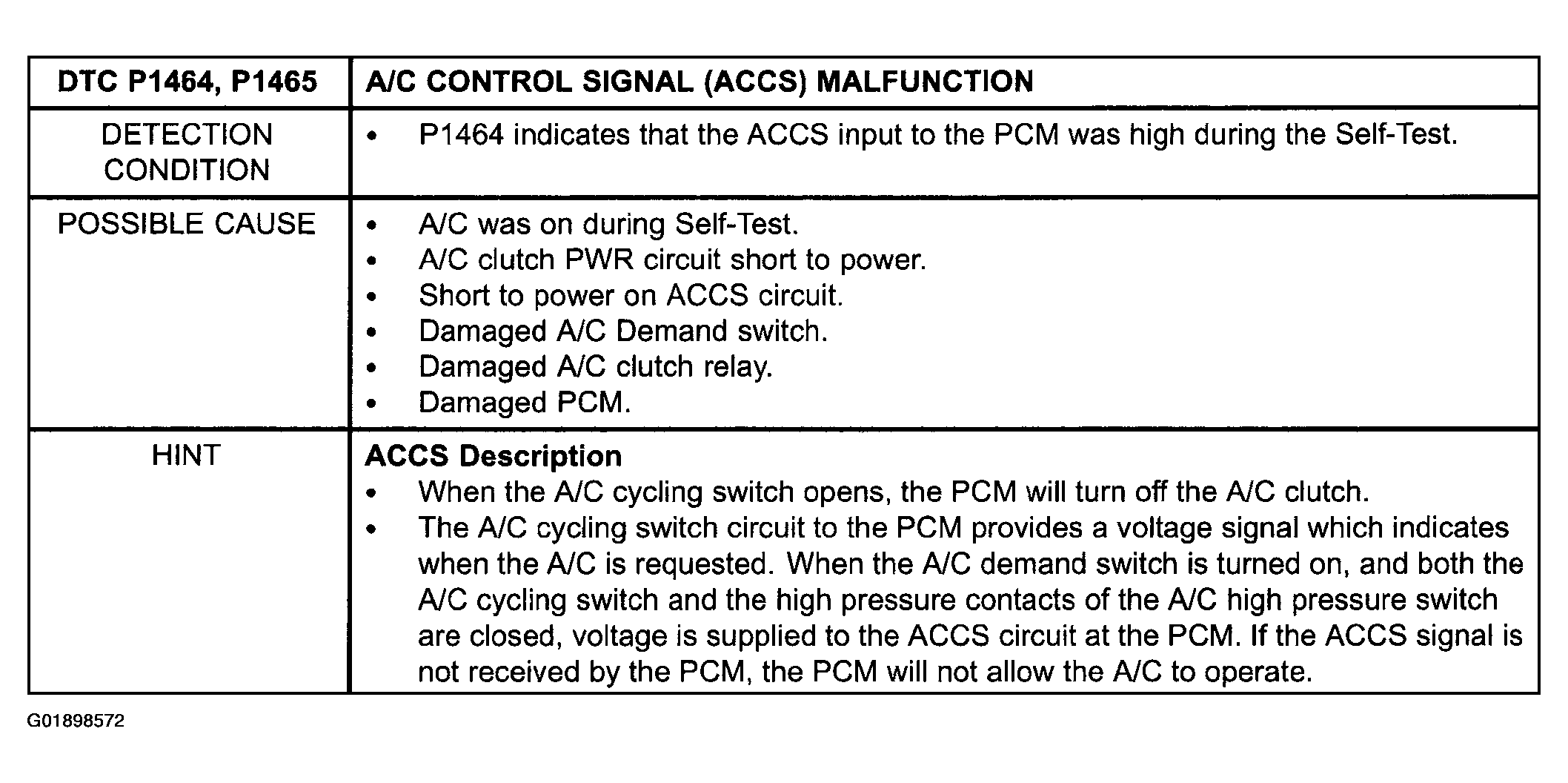

Fig 1: A/C Control Signal Malfunction Troubleshooting Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

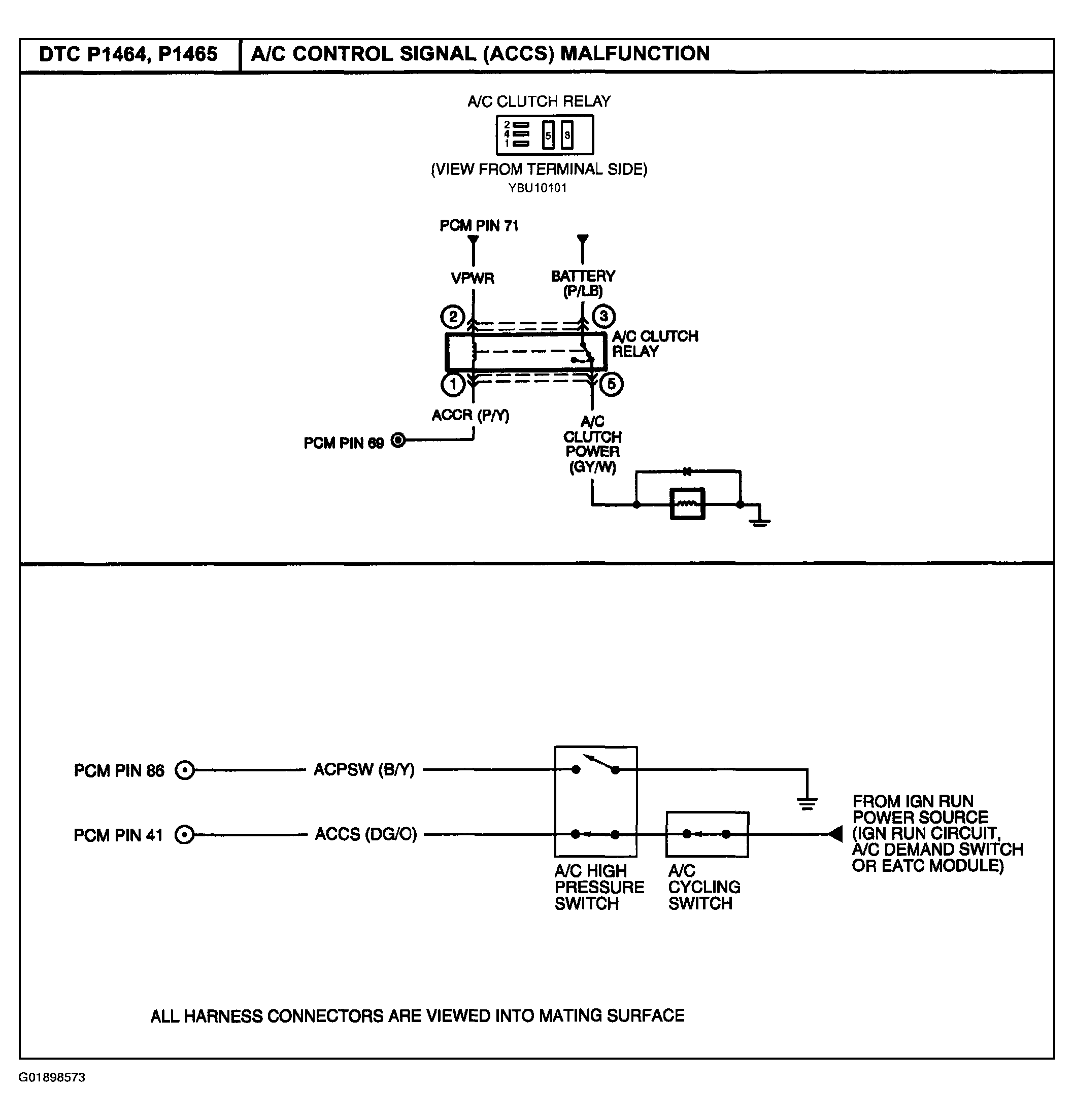

Fig 2: A/C Control Signal Malfunction Troubleshooting Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.

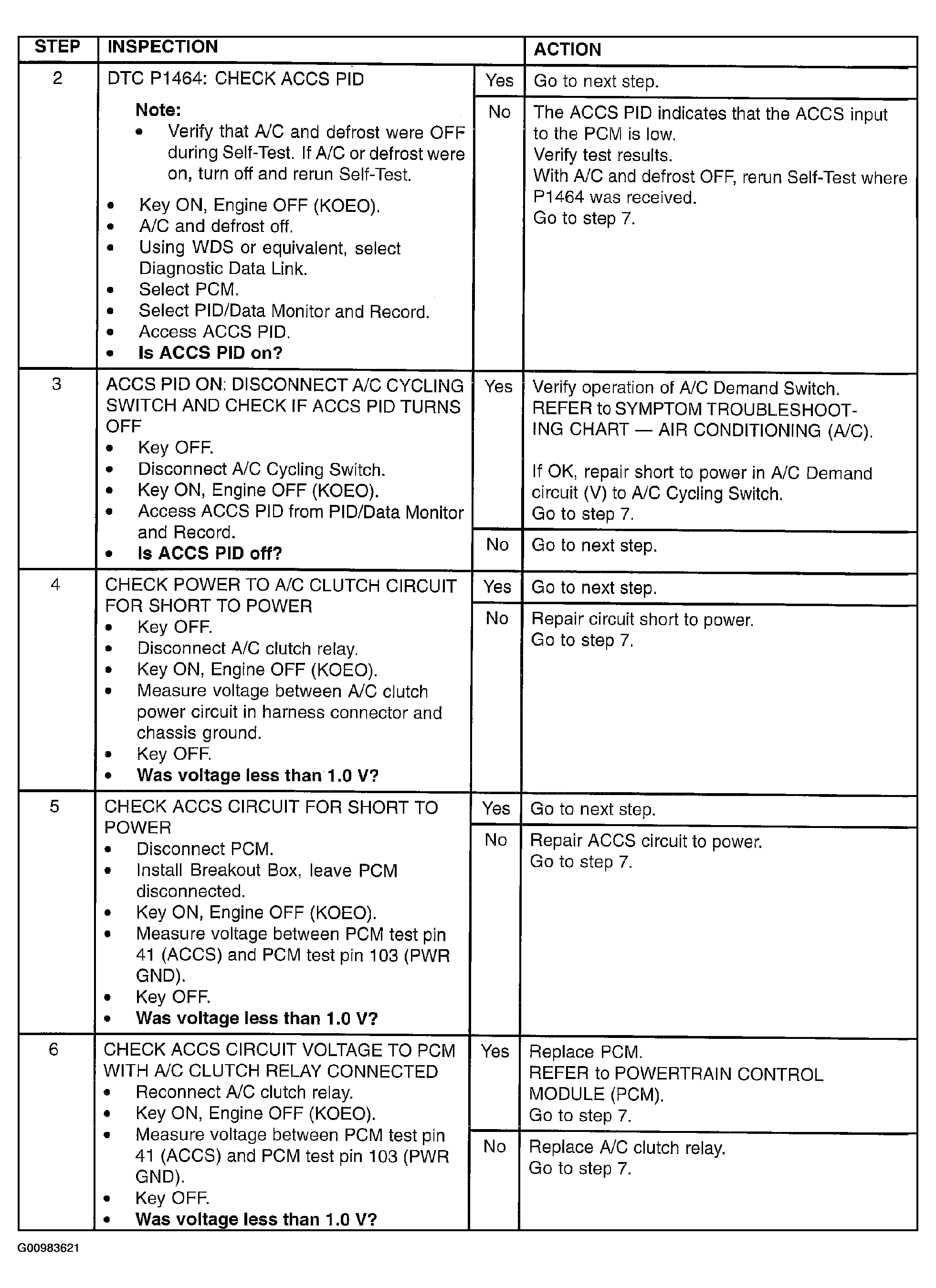

Fig 3: A/C Control Signal Malfunction Inspection Procedure (1 Of 3)
Courtesy of FORD MOTOR CO.

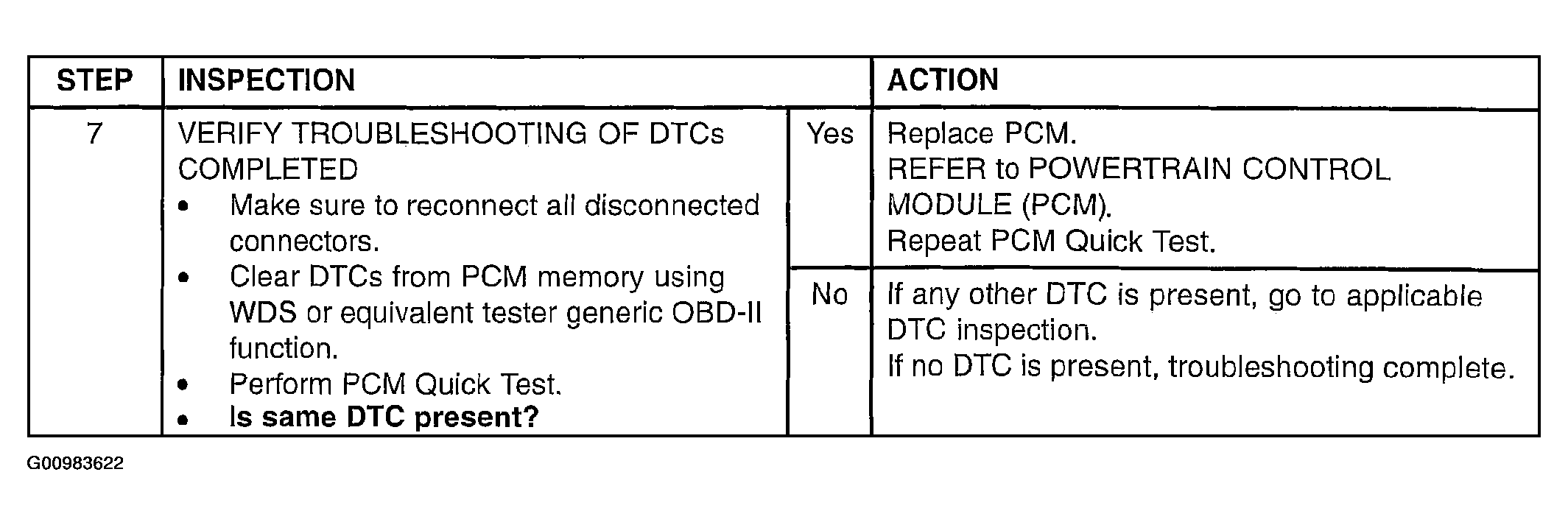

Fig 4: A/C Control Signal Malfunction Inspection Procedure (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 5: A/C Control Signal Malfunction Inspection Procedure (3 Of 3)
