DTC P1450: Evaporative Emission (EVAP) Monitor & System
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

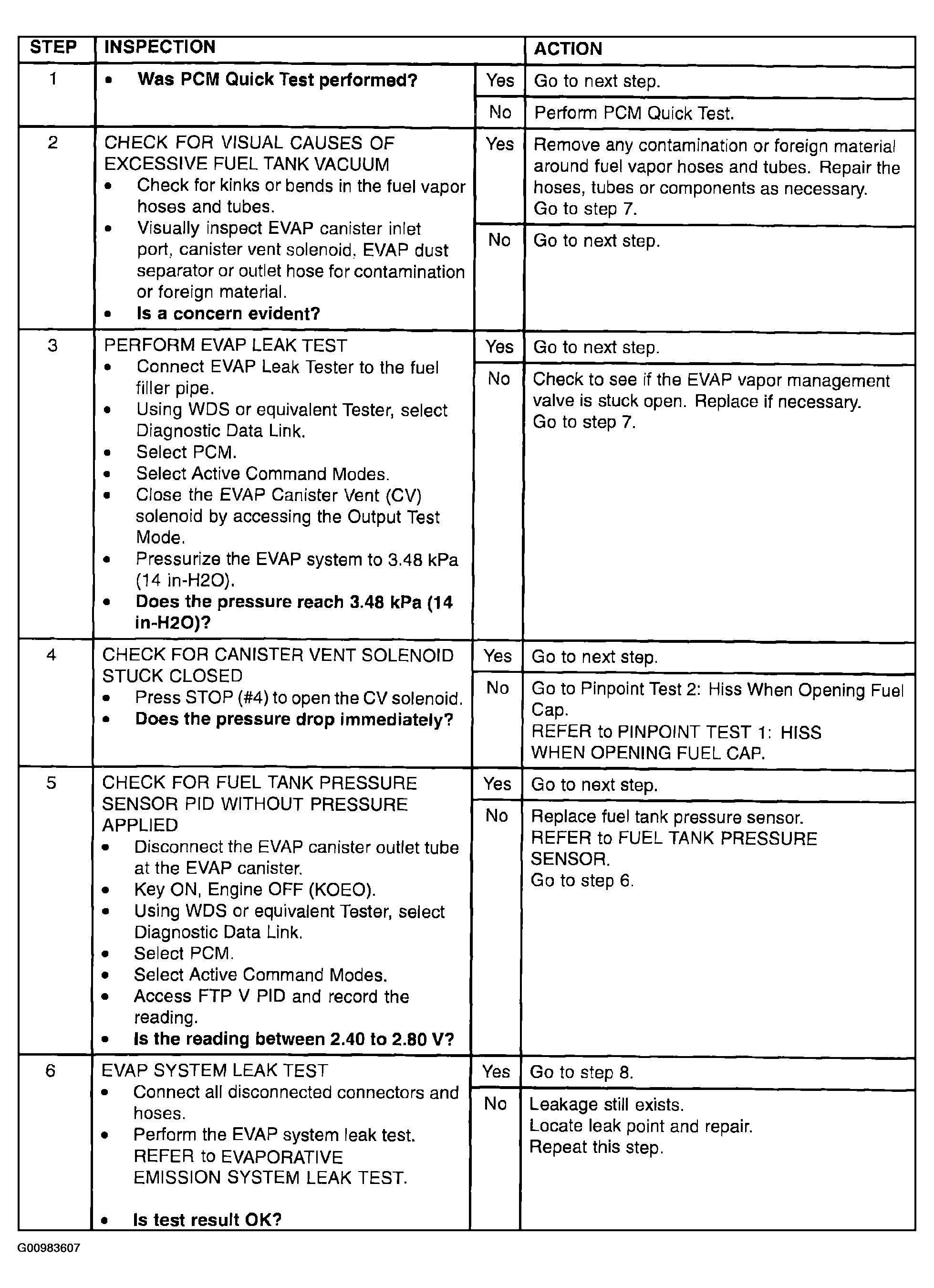

Fig 1: Evaporative Emission (EVAP) Monitor And System Troubleshooting Procedure
Courtesy of FORD MOTOR CO.
Fig 2: Evaporative Emission (EVAP) Monitor And System Inspection Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 3: Evaporative Emission (EVAP) Monitor And System Inspection Procedure (2 Of 2)
