DTC P1309: Misfire Detection Monitor Disabled

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

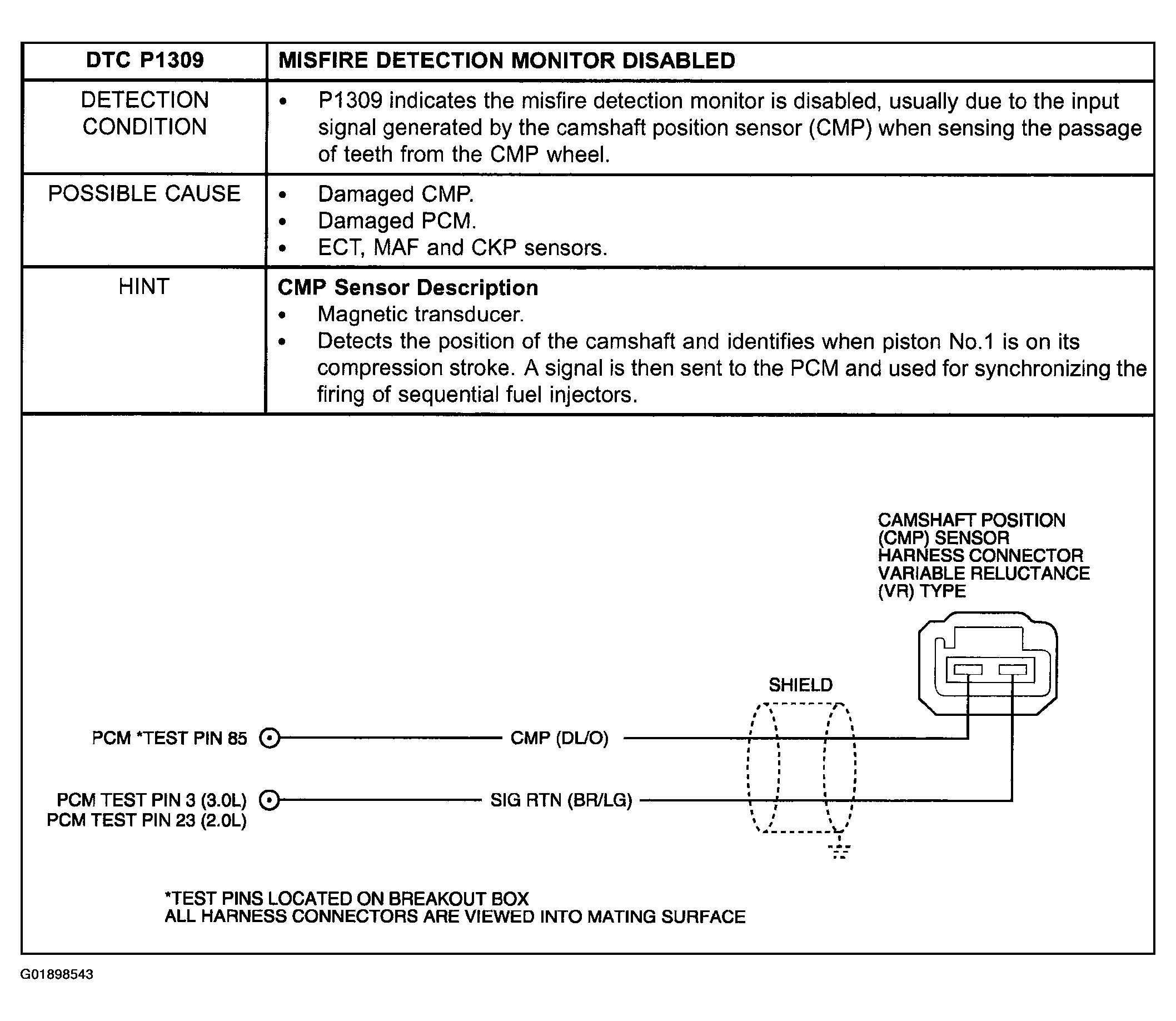

Fig 1: Misfire Detection Monitor Disabled Troubleshooting Procedure

Courtesy of FORD MOTOR CO.

Fig 2: Misfire Detection Monitor Disabled Inspection Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

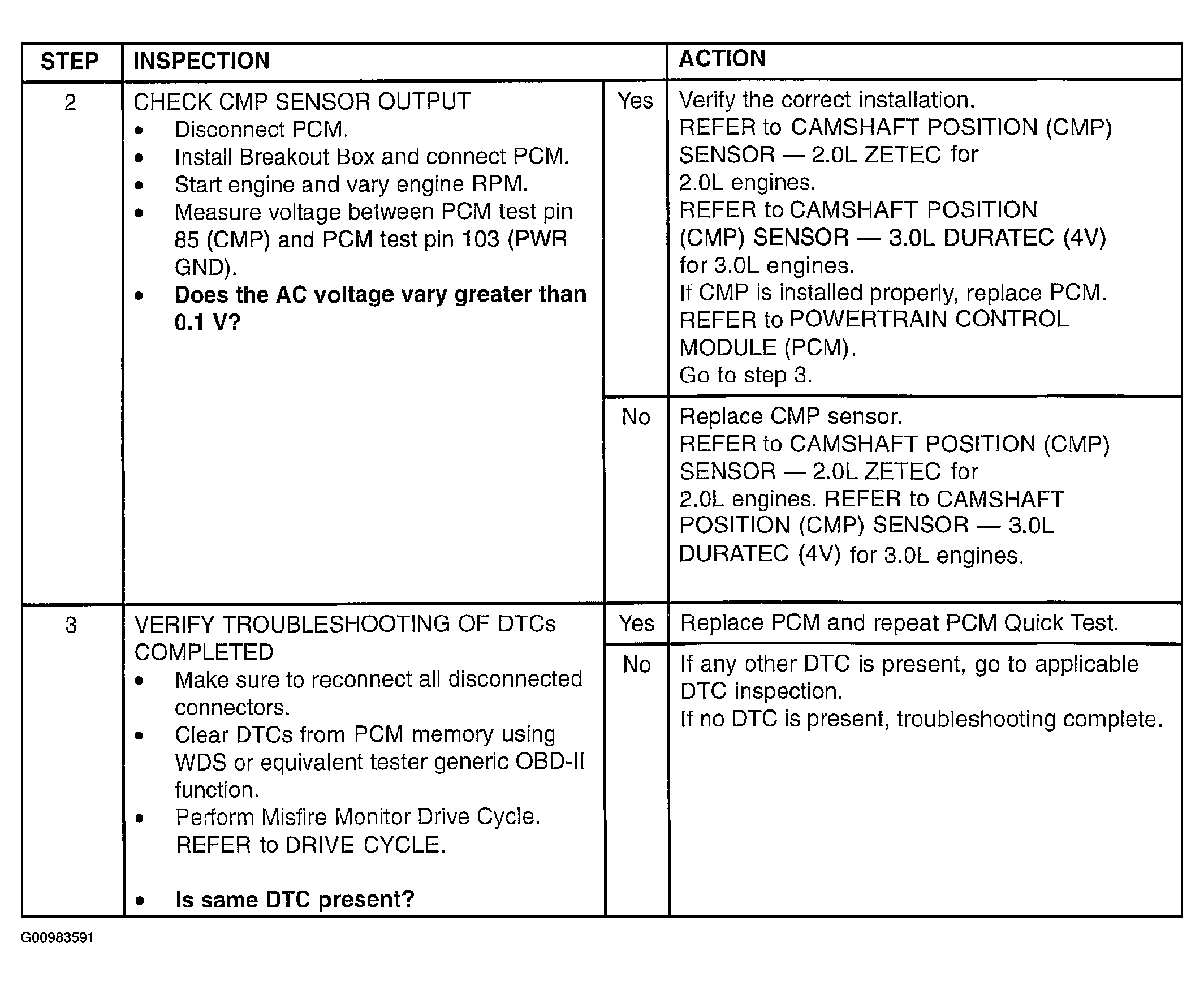

Fig 3: Misfire Detection Monitor Disabled Inspection Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
