DTC P1270: Engine Rpm/Vehicle Speed Limiter

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

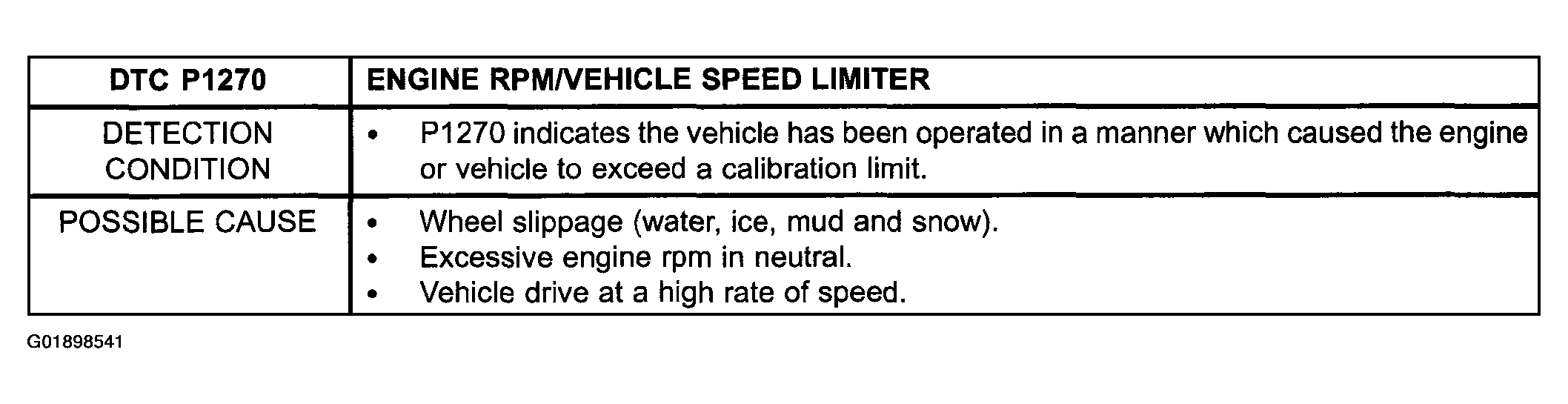

Fig 1: Engine RPM/Vehicle Speed Limiter Troubleshooting Procedure
G01898541Courtesy of FORD MOTOR CO.
Fig 2: Engine RPM/Vehicle Speed Limiter Inspection Procedure
G00983588Courtesy of FORD MOTOR CO.
