WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

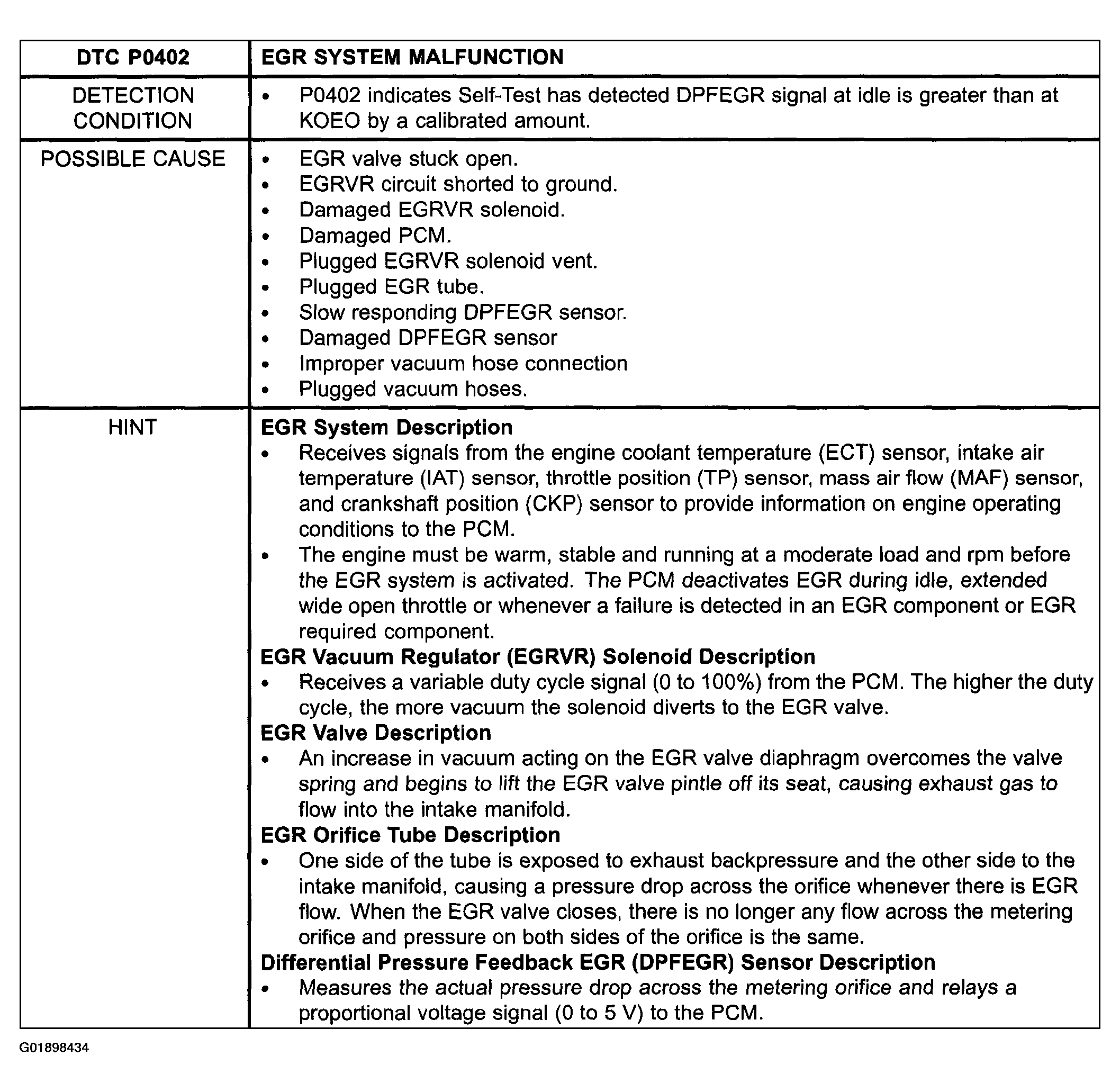

Fig 1: EGR System Malfunction Troubleshooting Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

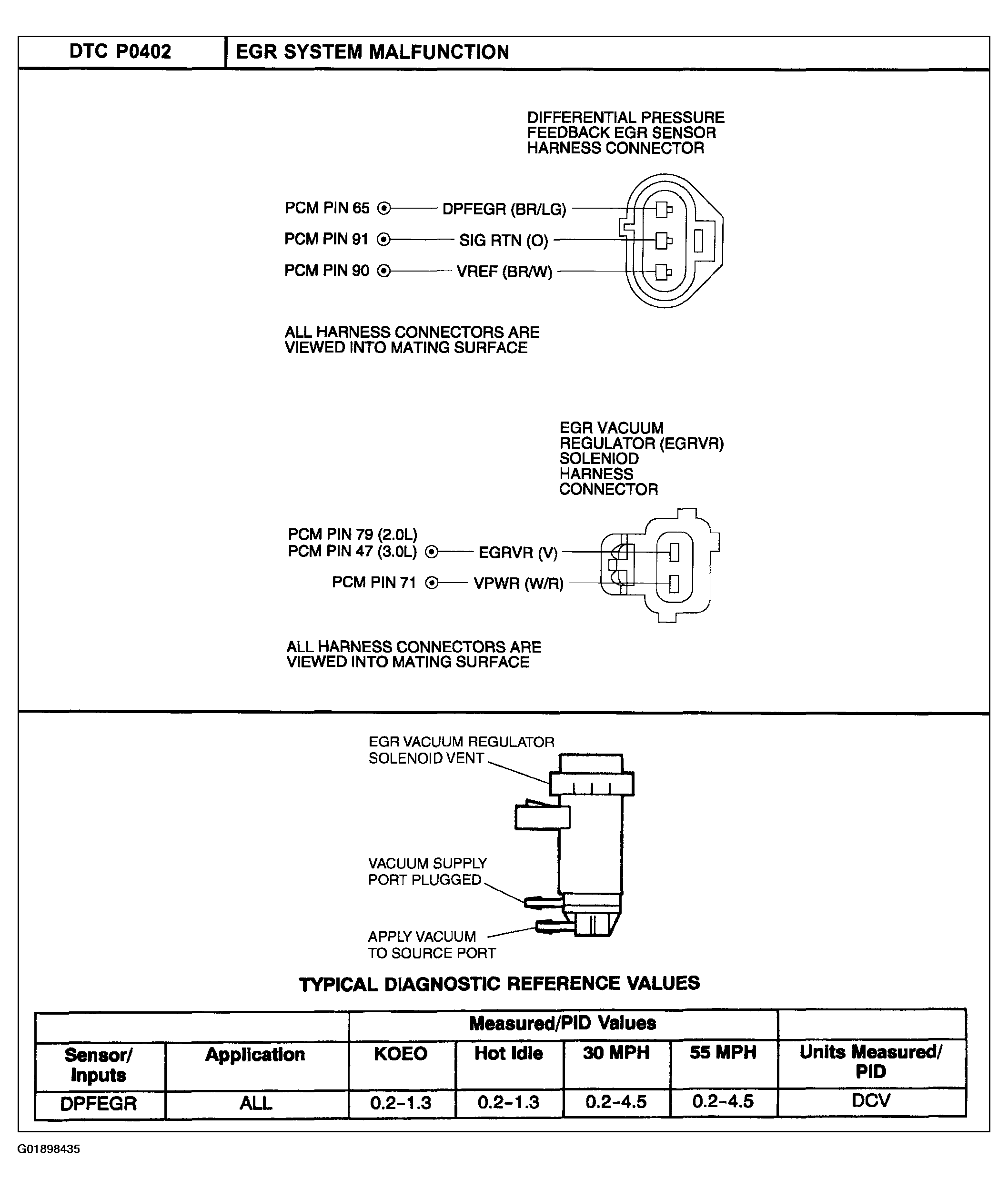

Fig 2: EGR System Malfunction Troubleshooting Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.

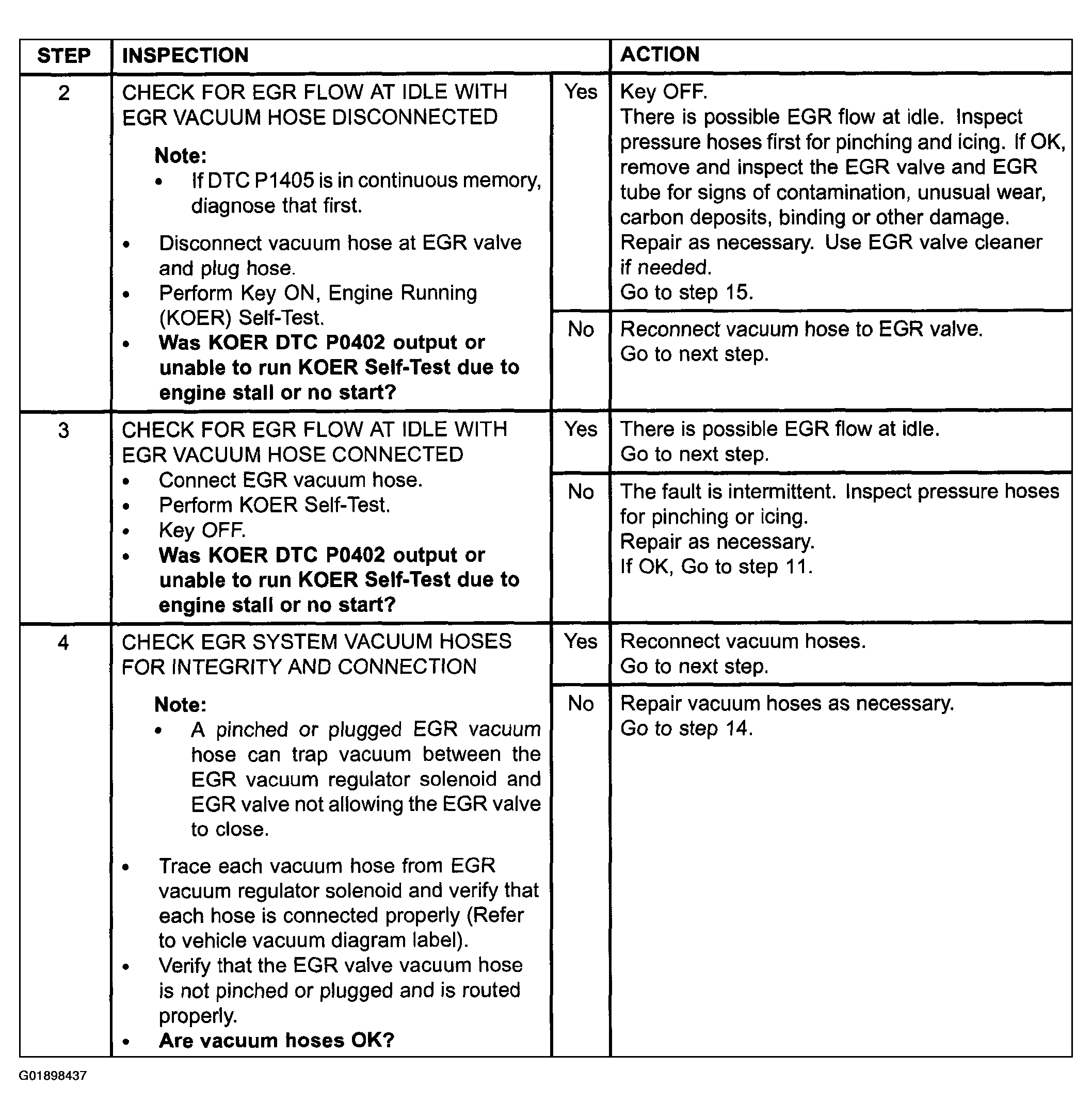

Fig 3: EGR System Malfunction Inspection Procedure (1 Of 7)
Courtesy of FORD MOTOR CO.

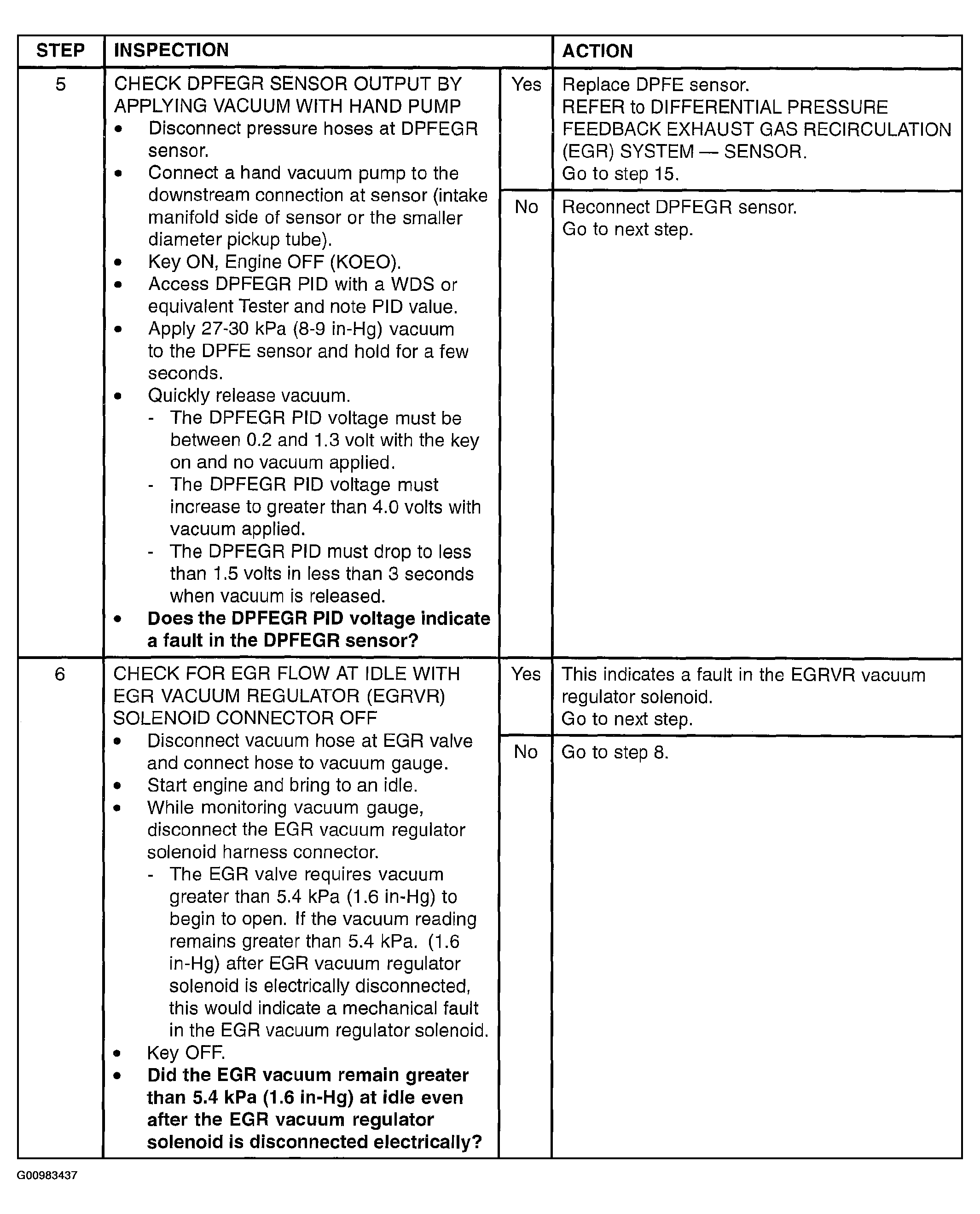

Fig 4: EGR System Malfunction Inspection Procedure (2 Of 7)
Courtesy of FORD MOTOR CO.

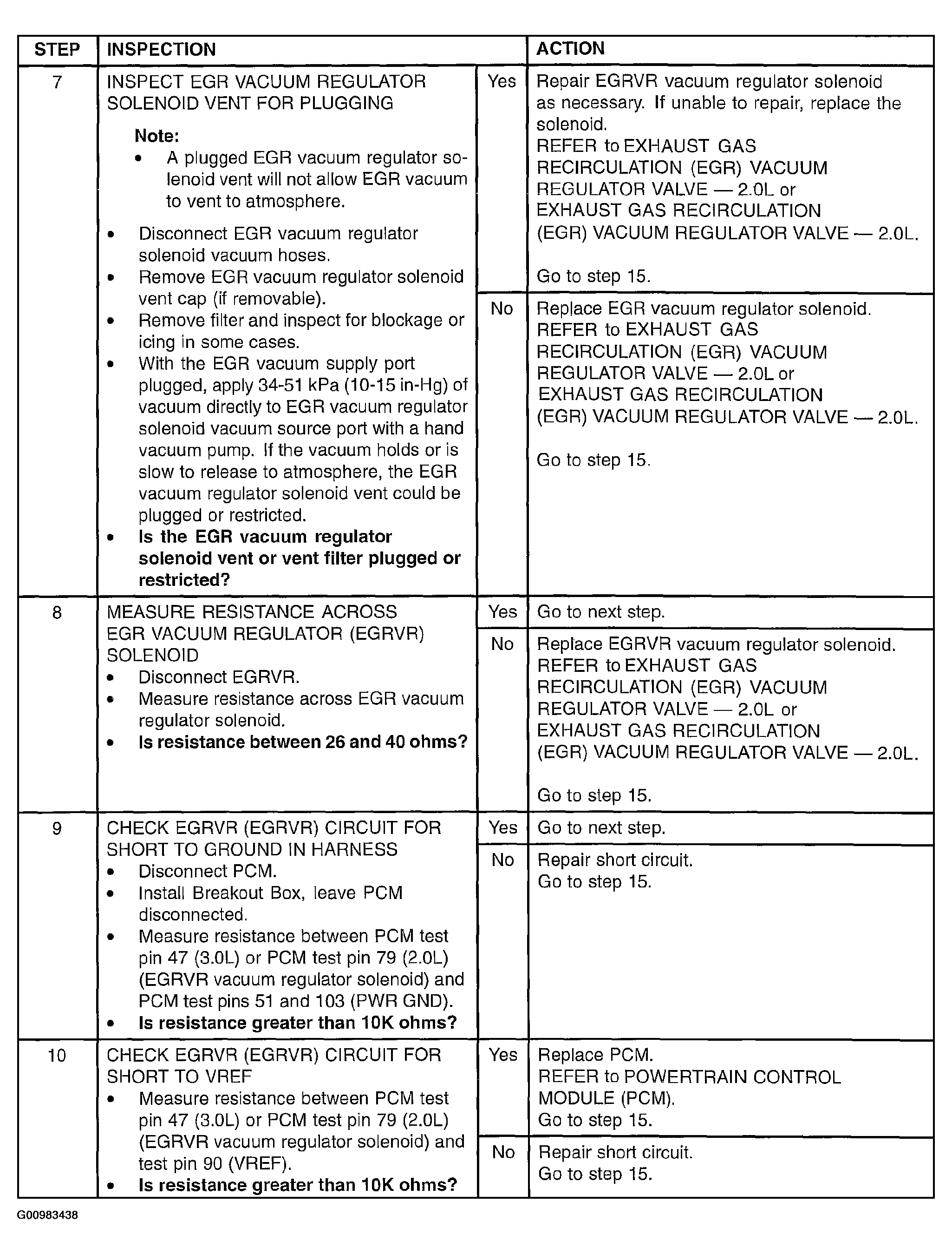

Fig 5: EGR System Malfunction Inspection Procedure (3 Of 7)
Courtesy of FORD MOTOR CO.
Fig 6: EGR System Malfunction Inspection Procedure (4 Of 7)
Courtesy of FORD MOTOR CO.

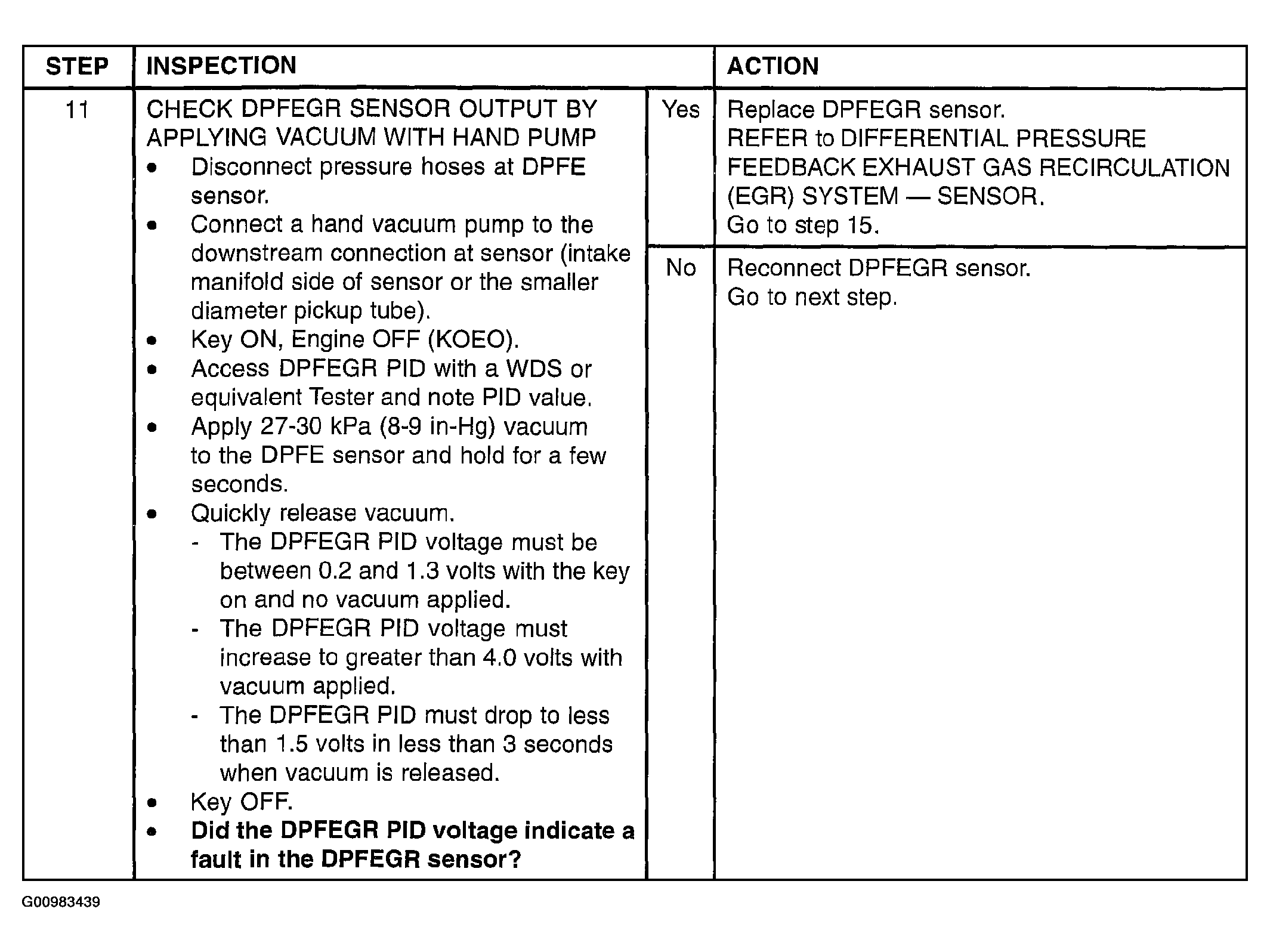

Fig 7: EGR System Malfunction Inspection Procedure (5 Of 7)
Courtesy of FORD MOTOR CO.

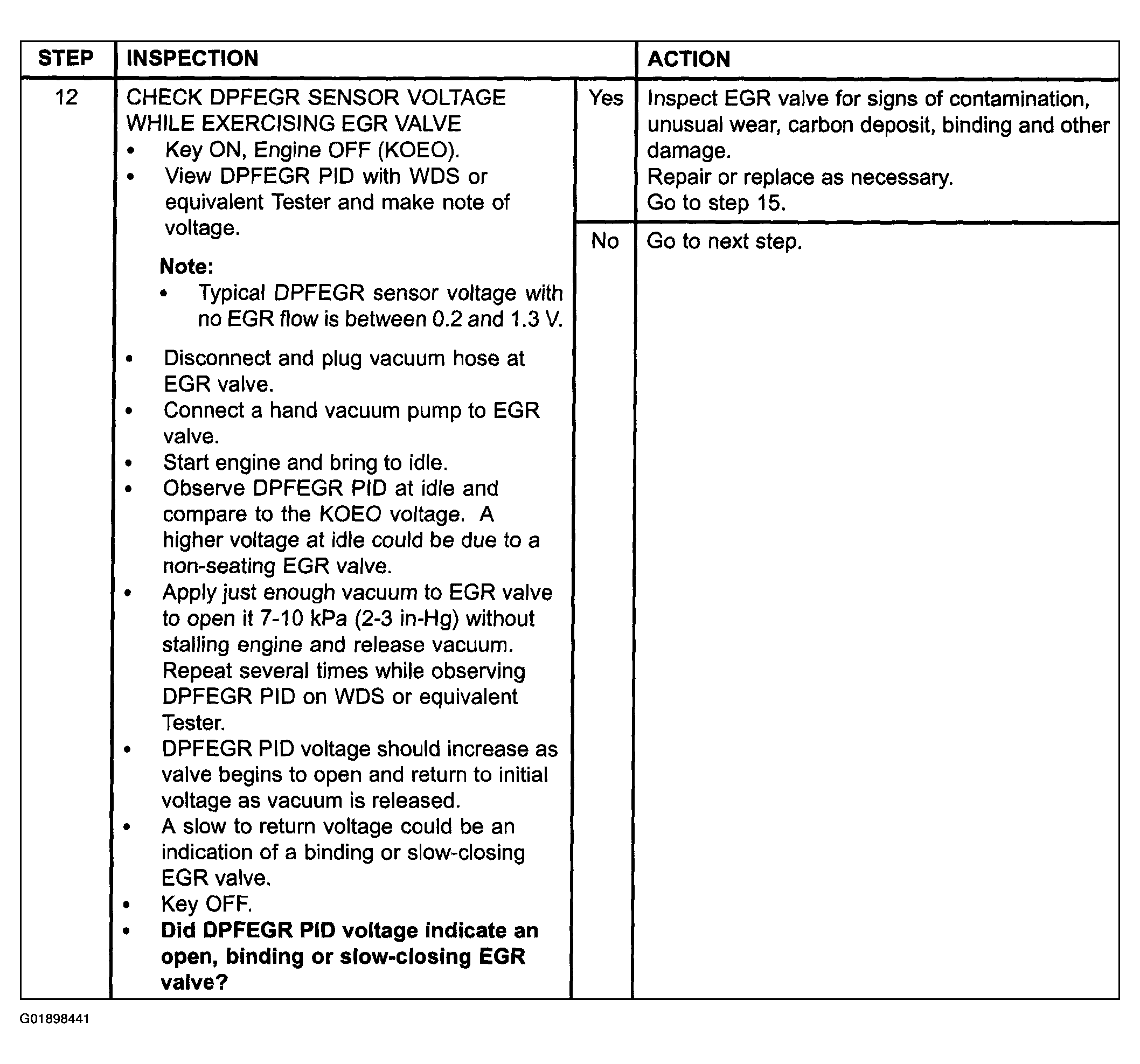

Fig 8: EGR System Malfunction Inspection Procedure (6 Of 7)
Courtesy of FORD MOTOR CO.

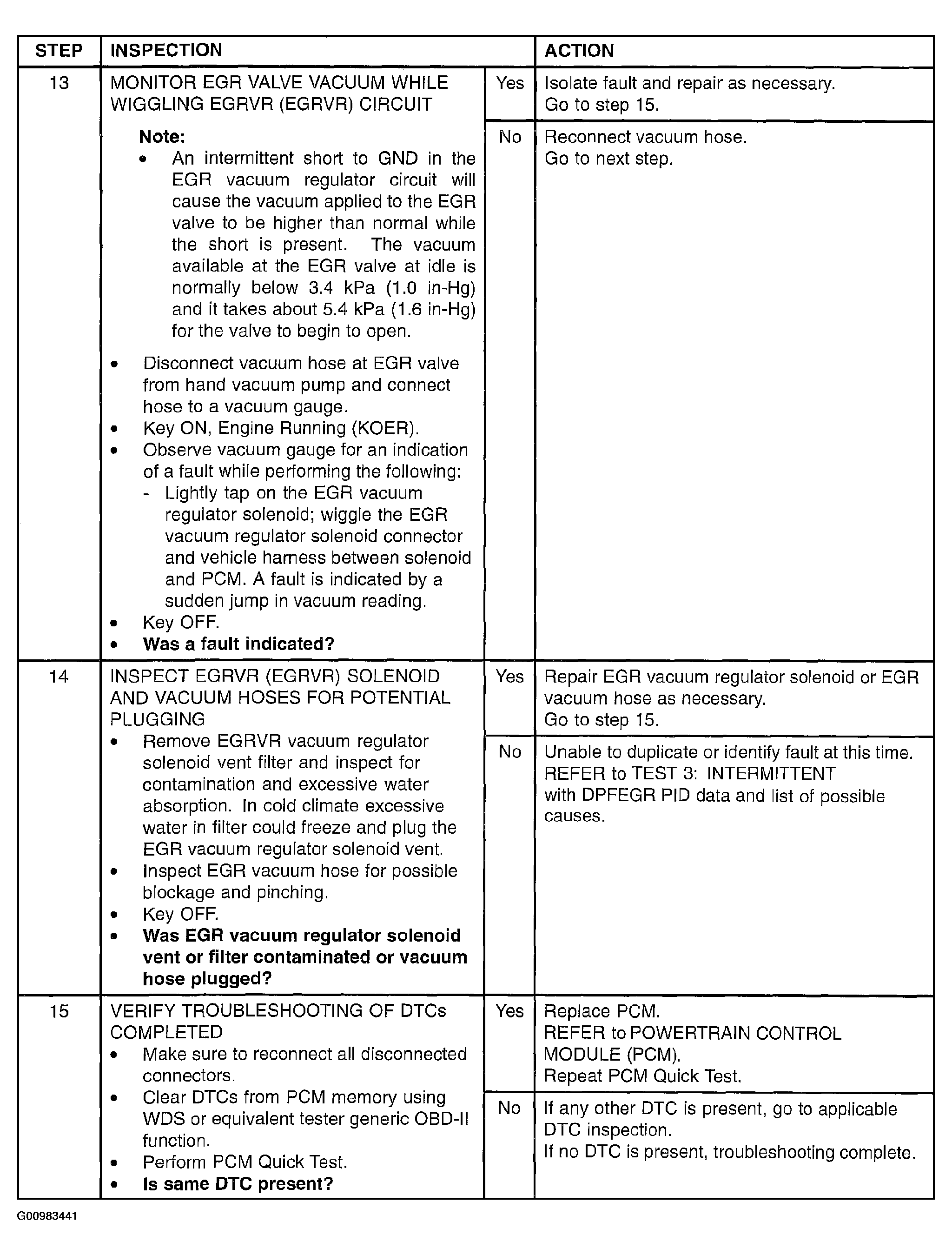

Fig 9: EGR System Malfunction Inspection Procedure (7 Of 7)
