DTC P0100, P0102, P0103, P1100, P1101, P1102, P1103, P1793: Mass Air Flow (MAF/IAT) Sensor

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

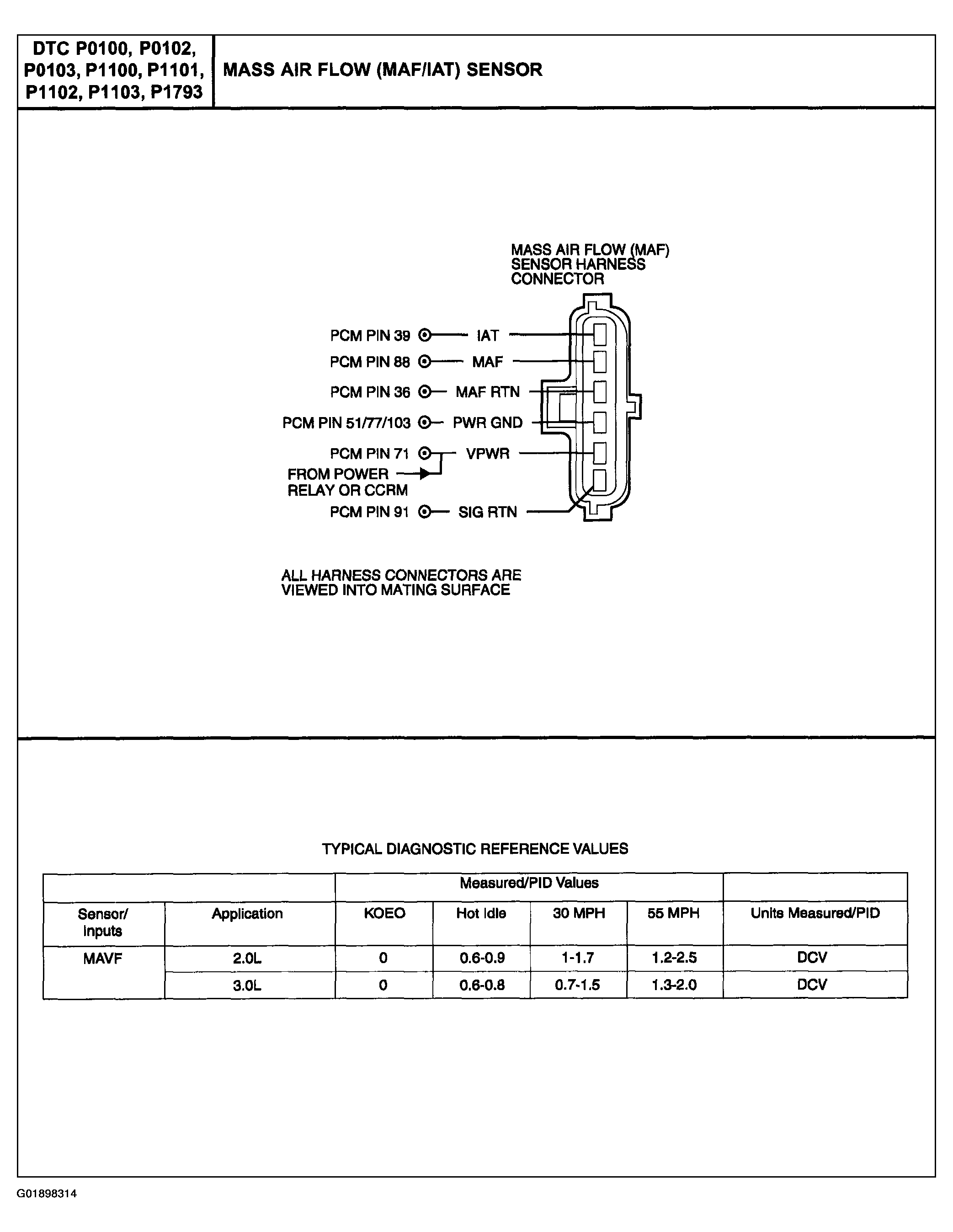

Fig 1: Mass Air Flow Sensor Troubleshooting Procedure (1 Of 3)

Courtesy of FORD MOTOR CO.

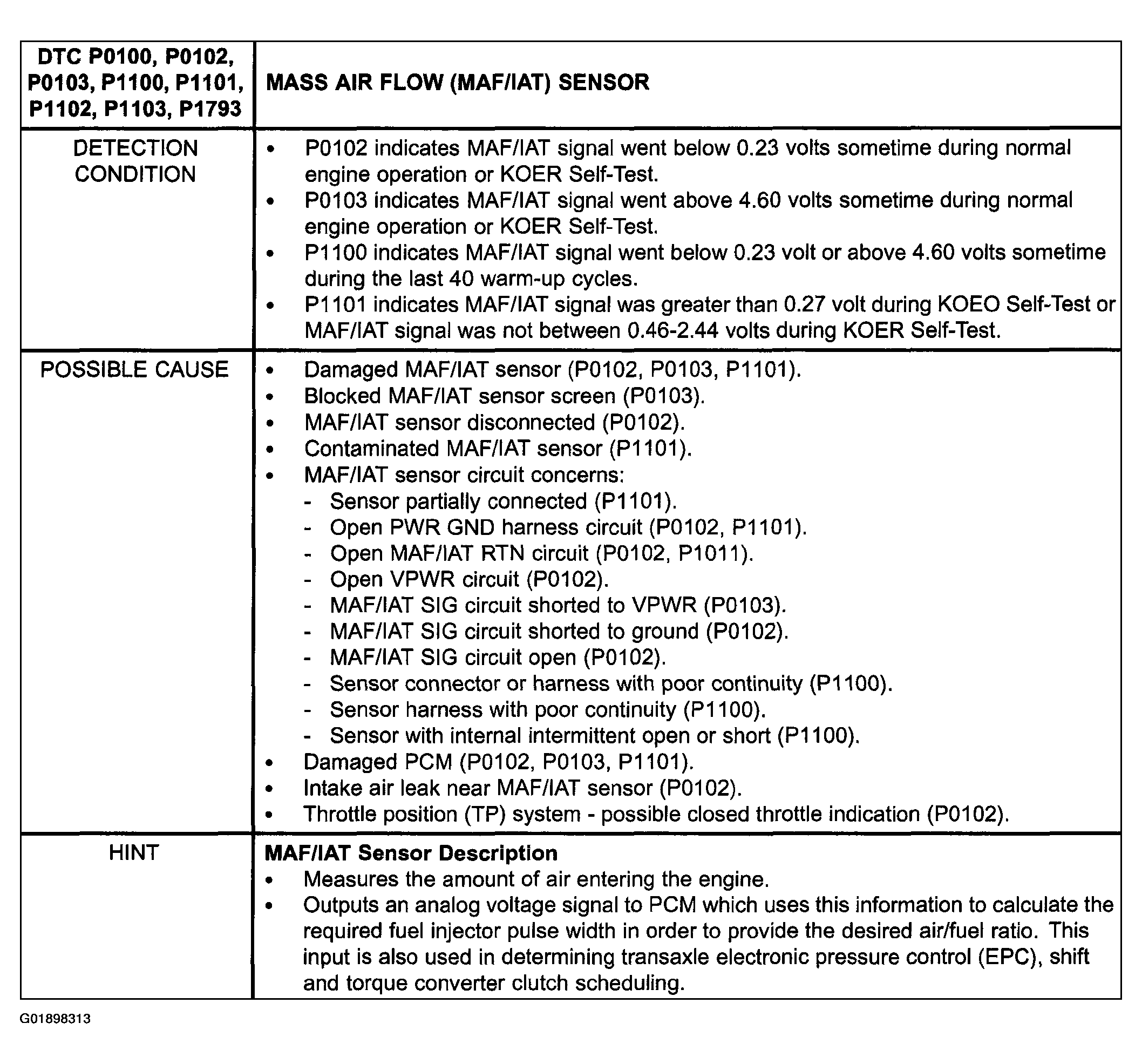

Fig 2: Mass Air Flow Sensor Troubleshooting Procedure (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Mass Air Flow Sensor Troubleshooting Procedure (3 Of 3)

Courtesy of FORD MOTOR CO.

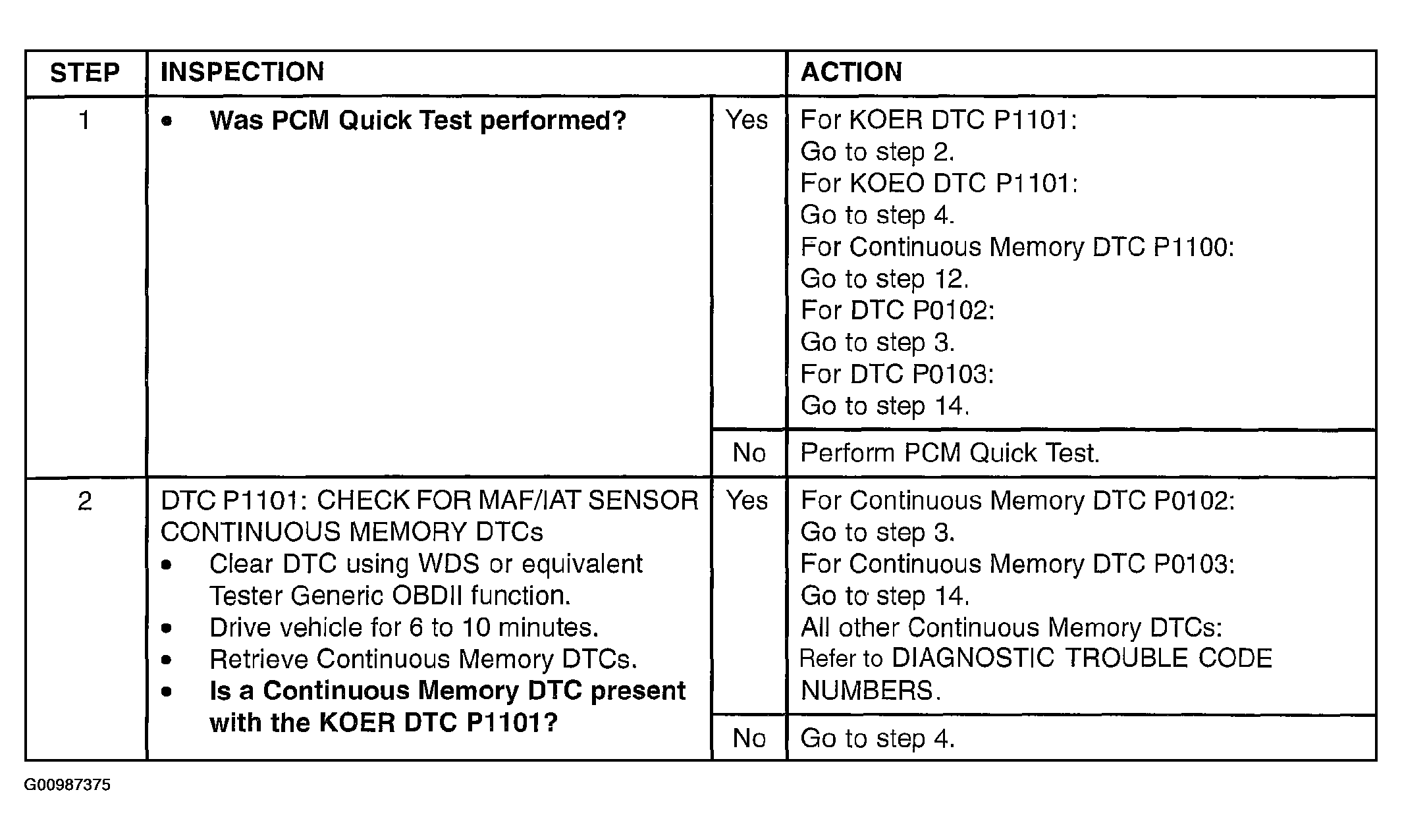

Fig 4: Mass Air Flow Sensor Inspection Procedure (1 Of 6)

Courtesy of FORD MOTOR CO.

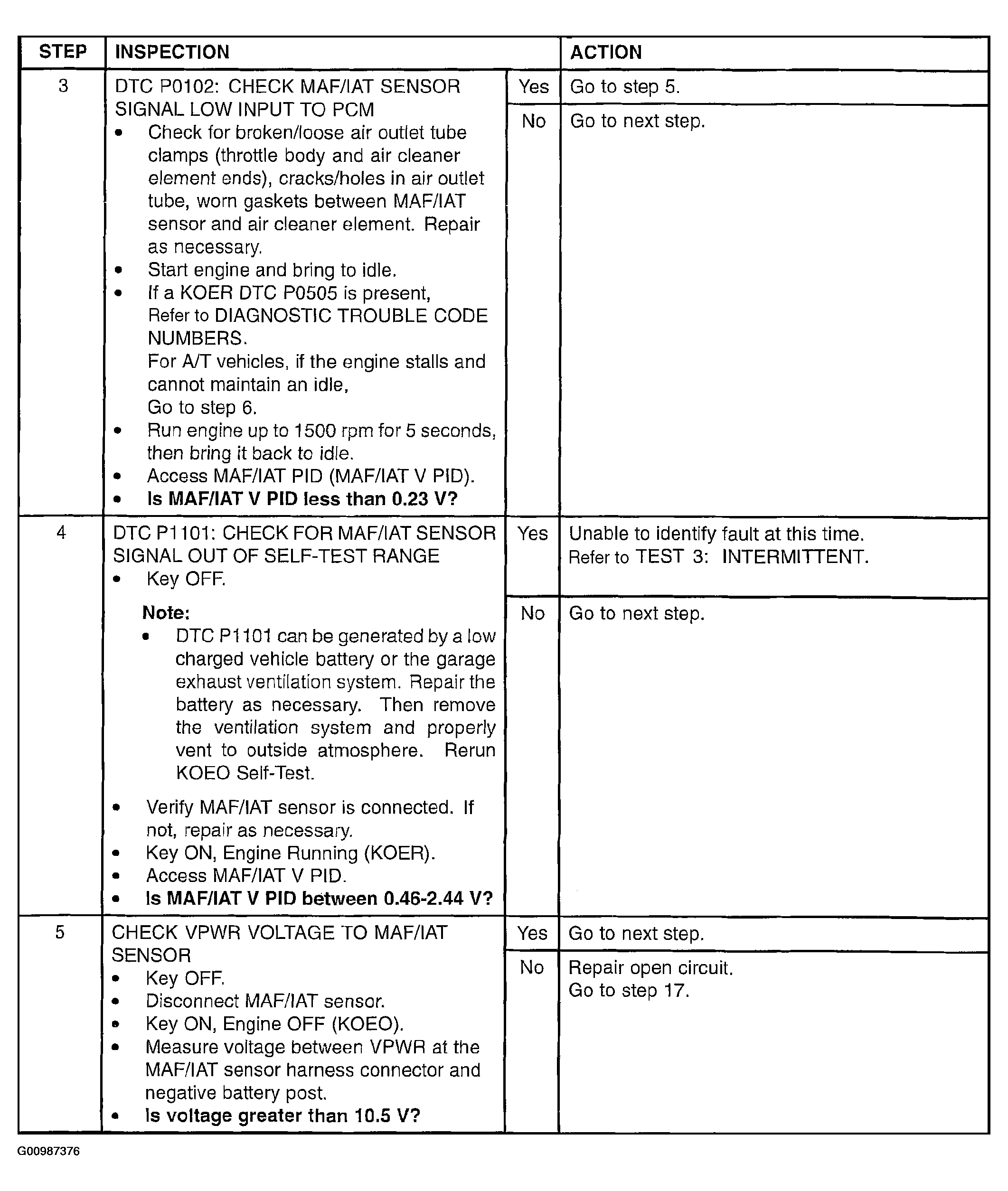

Fig 5: Mass Air Flow Sensor Inspection Procedure (2 Of 6)

Courtesy of FORD MOTOR CO.

Fig 6: Mass Air Flow Sensor Inspection Procedure (3 Of 6)

Courtesy of FORD MOTOR CO.

Fig 7: Mass Air Flow Sensor Inspection Procedure (4 Of 6)

Courtesy of FORD MOTOR CO.

Fig 8: Mass Air Flow Sensor Inspection Procedure (5 Of 6)

Courtesy of FORD MOTOR CO.

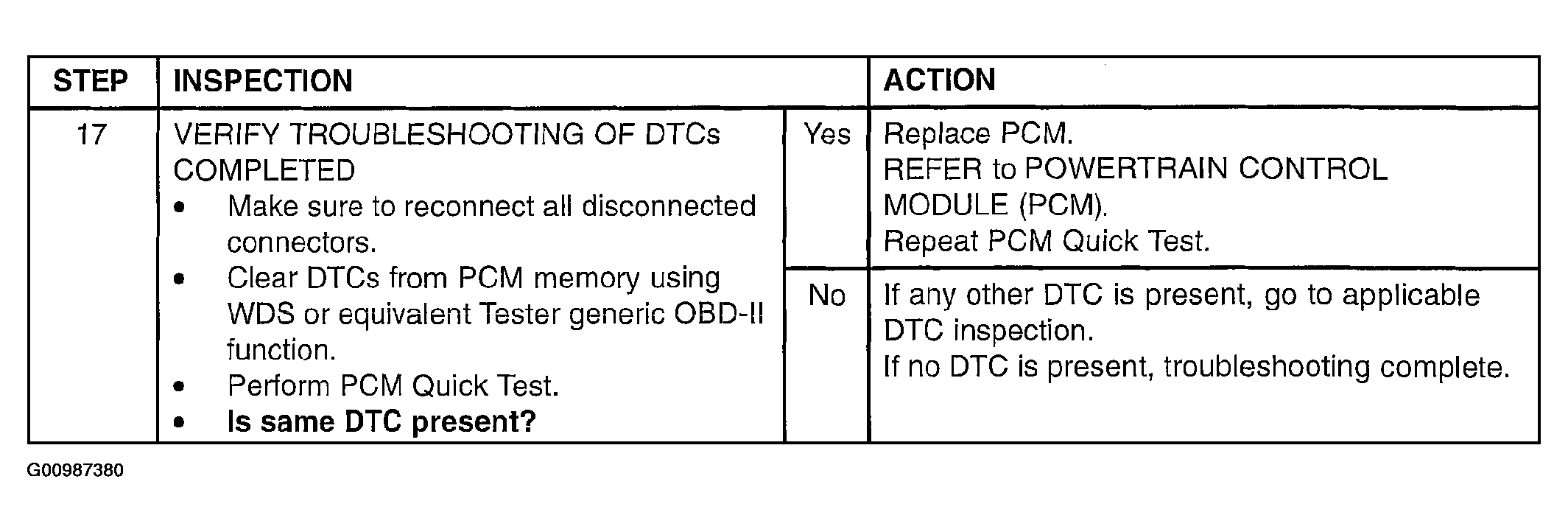

Fig 9: Mass Air Flow Sensor Inspection Procedure (6 Of 6)

Courtesy of FORD MOTOR CO.
