Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. For additional information refer to BATTERY DISCONNECT .

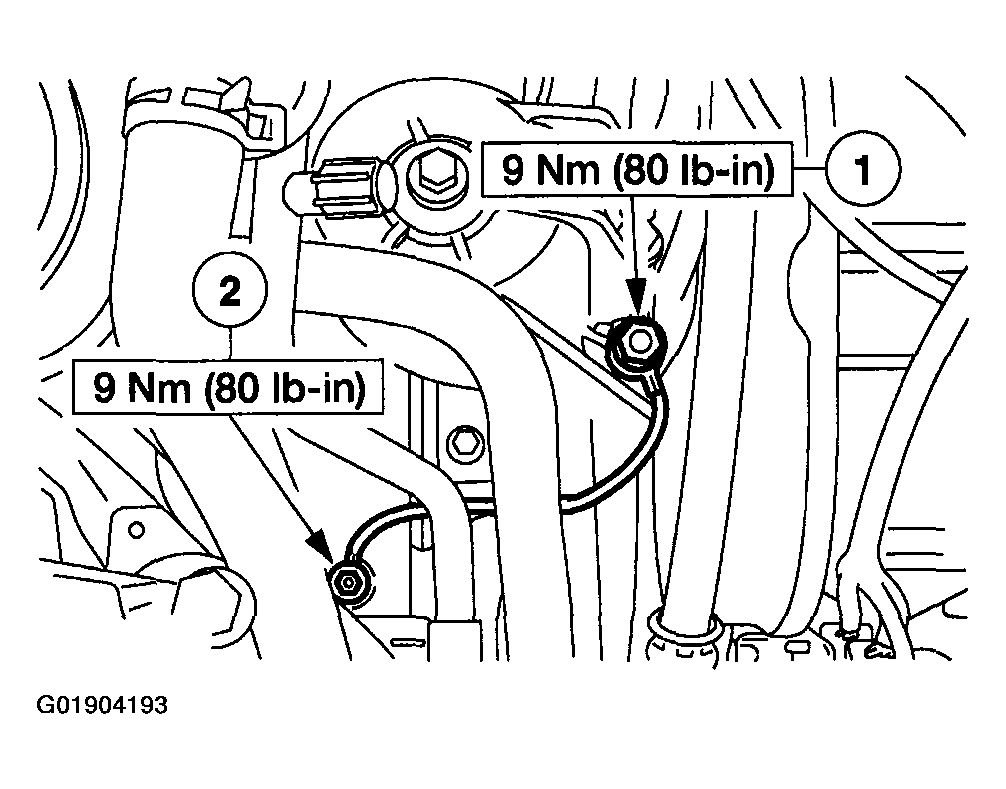

Fig 1: Removing Nut, Bolt And Ground Strap
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The 2.0L is shown, the 3.0L is similar.
Remove the ground strap.
1. Remove the nut.
2. Remove the bolt.
To install, reverse the removal procedure.
