Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Antenna Mast

Courtesy of MAZDA MOTORS CORP.

Remove the antenna mast.
Remove the right lower A-pillar trim.

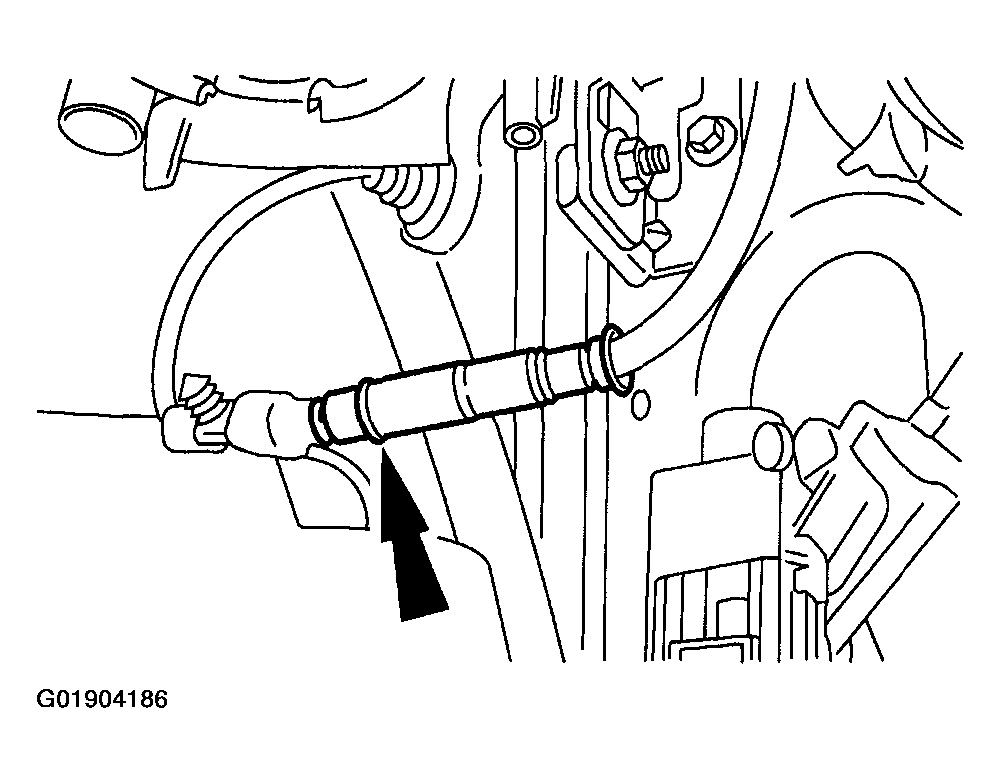

Fig 2: Disconnecting Antenna Cable Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the antenna cable connector and pull the pin-type retainer away from the body.
Remove the fender splash shield. For additional information, refer to FENDER SPLASH SHIELD .

Fig 3: Removing Rubber Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the rubber grommet and pull the cable into the fender area.

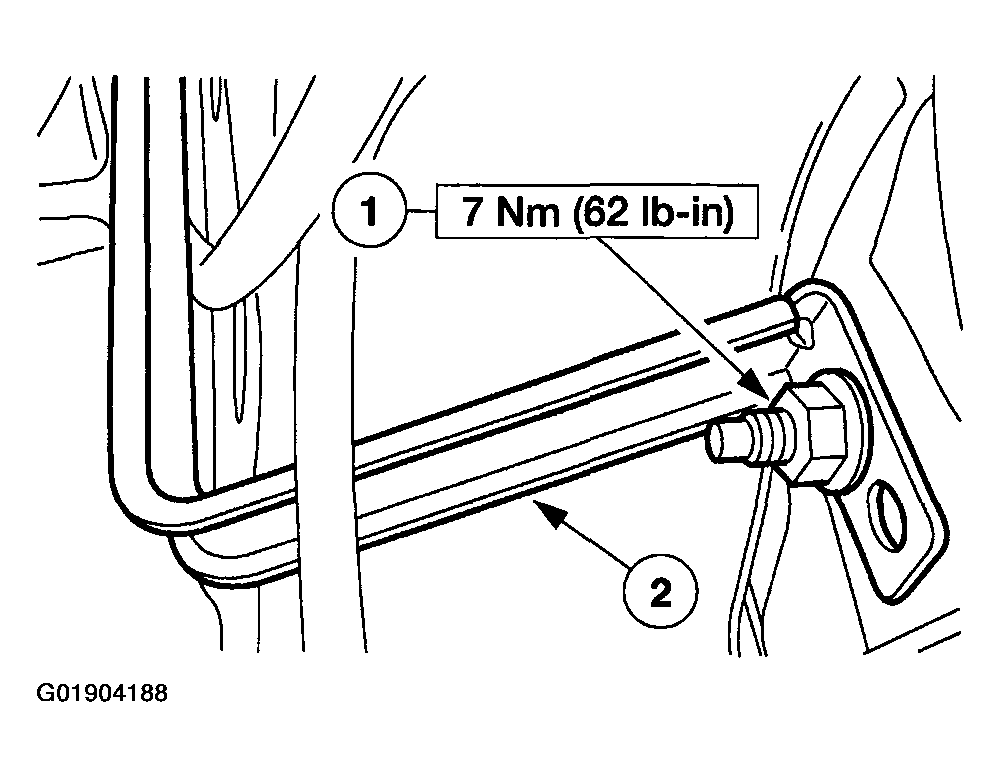

Fig 4: Removing Nut And Antenna
Courtesy of MAZDA MOTORS CORP.
Remove the antenna.
1. Remove the nut.
2. Remove the antenna out through the fender opening.
To install, reverse the removal procedure.
