Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top vent panels; refer to COWL PANEL GRILLE .

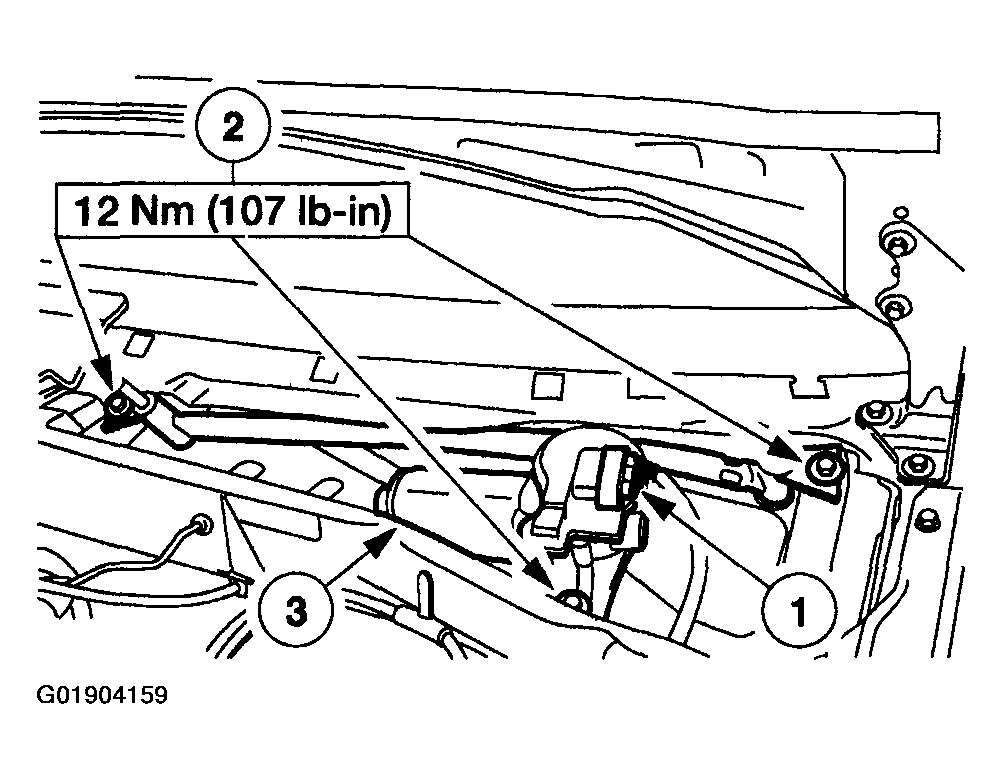

    Fig 1: Removing Wiper Mounting Arm And Pivot Shaft
    G01904159Courtesy of MAZDA MOTORS CORP.
  2. Remove the wiper mounting arm and pivot shaft.
    1. Disconnect the electrical connector.
    2. Remove the bolts.
    3. Remove the wiper mounting arm and pivot shaft.
  3. Remove the motor assembly.
  4. To install, reverse the removal procedure.
