Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper mounting arm and pivot shaft refer toWIPER MOUNTING ARM AND PIVOT SHAFT .

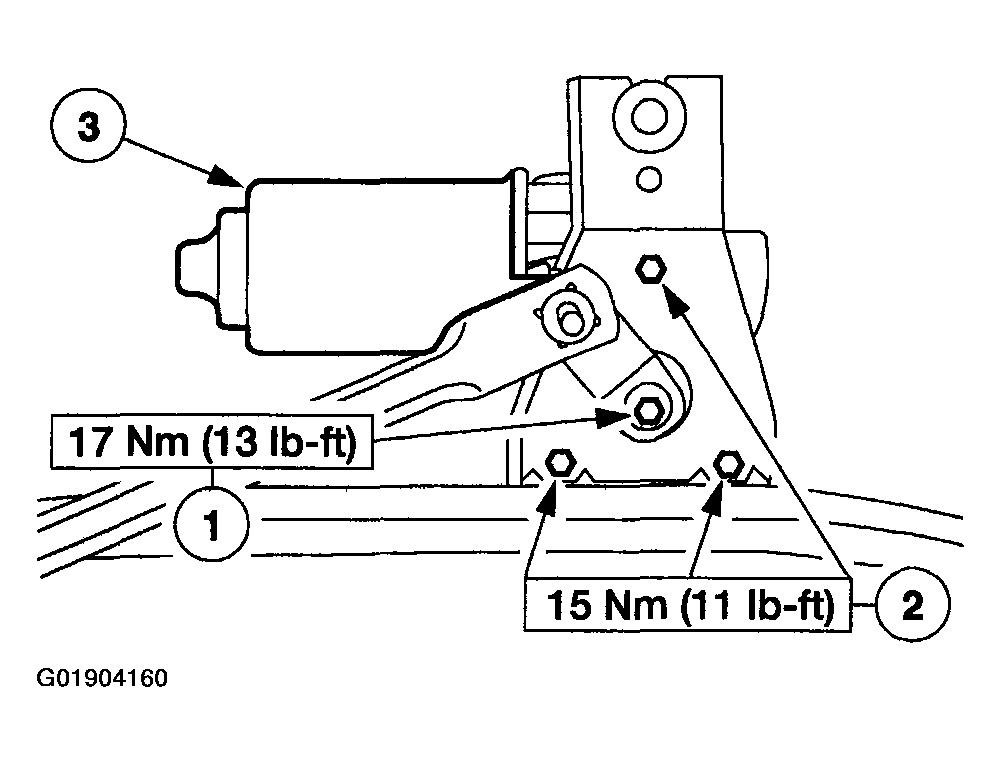

Fig 1: Removing Windshield Wiper Motor
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper motor.
1. Remove the bolt and windshield wiper motor linkage.
2. Remove the windshield wiper motor mounting bolts.
3. Remove the windshield wiper motor.
To install, reverse the removal procedure.
