Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Pivot Arm

Courtesy of MAZDA MOTORS CORP.

Remove the pivot arm.
1. Lift pivot arm to the upright position.
2. Slide the locking tab out.
3. Pull up and remove the pivot arm.

  Fig 2: Removing Rear Wiper Motor Shaft Nut Cover
  Courtesy of MAZDA MOTORS CORP.
Remove the rear wiper motor shaft nut cover.

Fig 3: Removing Rear Wiper Motor Shaft Nut
Courtesy of MAZDA MOTORS CORP.
Remove the rear wiper motor shaft nut.
Open the liftgate.

Fig 4: Removing Rear Wiper Motor Plastic Cover
Courtesy of MAZDA MOTORS CORP.
Remove the rear wiper motor plastic cover.

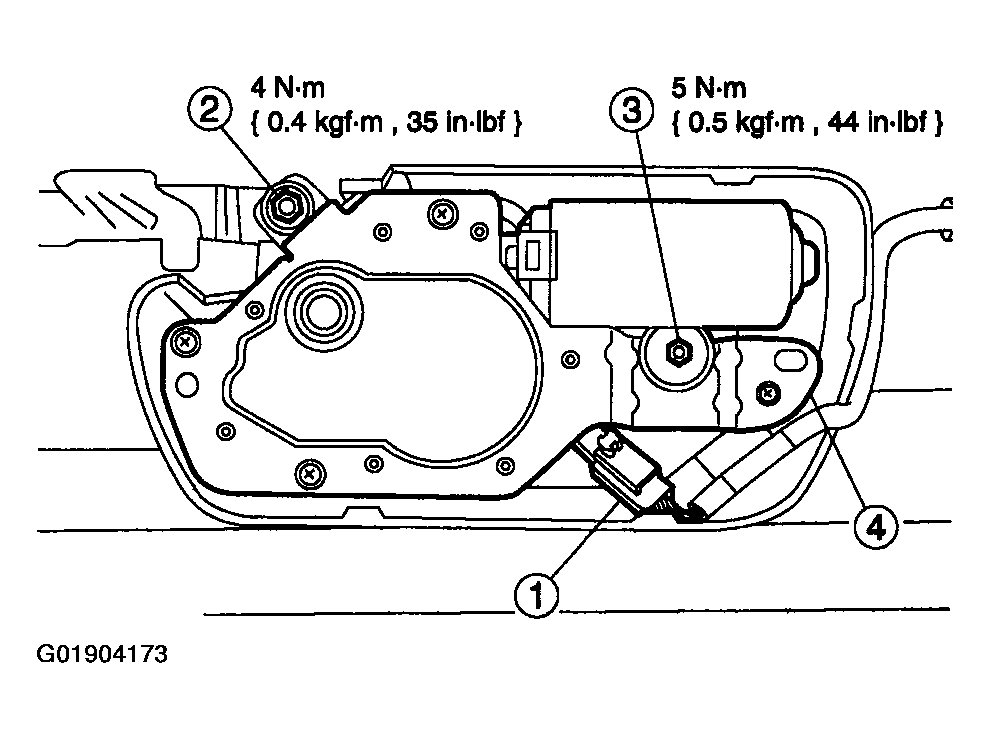

Fig 5: Removing Rear Wiper Motor
Courtesy of MAZDA MOTORS CORP.
Remove rear wiper motor.
1. Disconnect the electrical connector.
2. Remove the nut.
3. Remove the bolt.
4. Remove the rear wiper motor.
To install, reverse the removal procedure.
