Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. Refer to WHEELS AND TIRES .

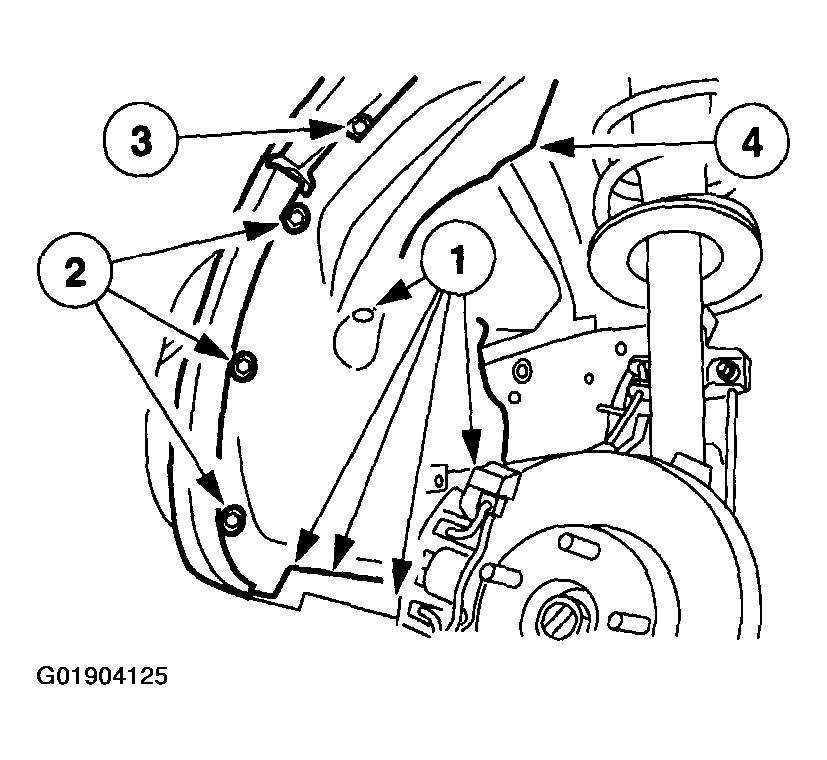

Fig 1: Positioning Inner Fender Well Aside
Courtesy of MAZDA MOTORS CORP.
Position the inner fender well aside.
1. Remove the bolts.
2. Remove the pin-type retainers.
3. Remove the screw.
4. Position the inner fender well aside.

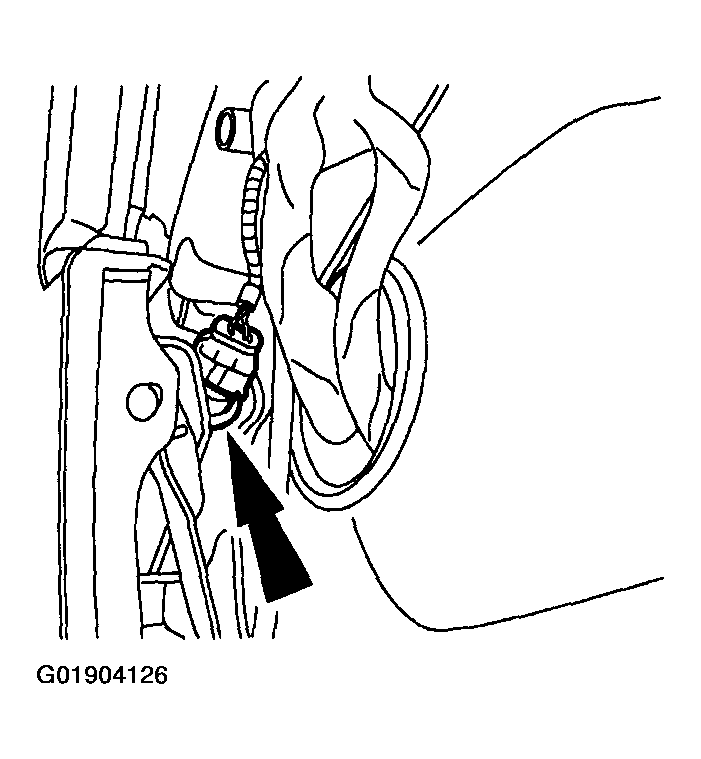

Fig 2: Removing Lamp Socket From Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the lamp socket from the lamp assembly.

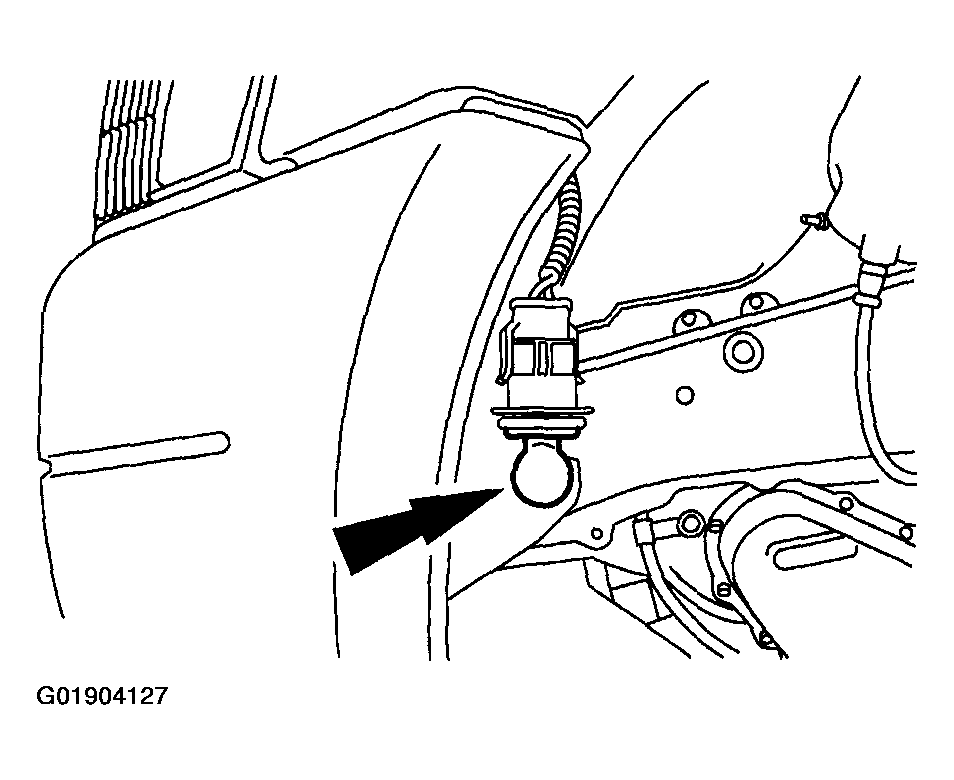

Fig 3: Removing Bulb
Courtesy of MAZDA MOTORS CORP.
Remove the bulb.
To install, reverse the removal procedure.
