Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

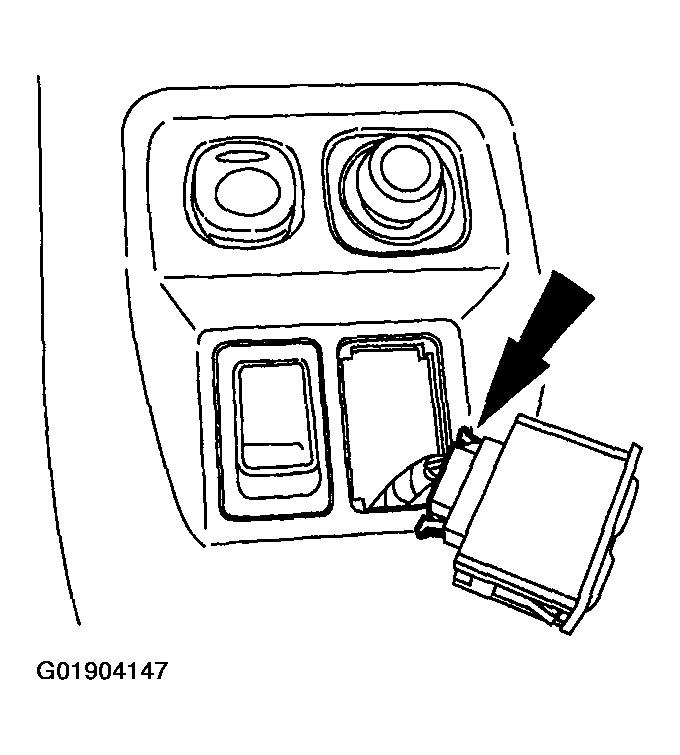

Fig 1: Removing Instrument Panel Dimmer Switch

Courtesy of MAZDA MOTORS CORP.

Remove the instrument panel dimmer switch.

Fig 2: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.
To install, reverse the removal procedure.
