Brake Pedal Position (BPP) Switch: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

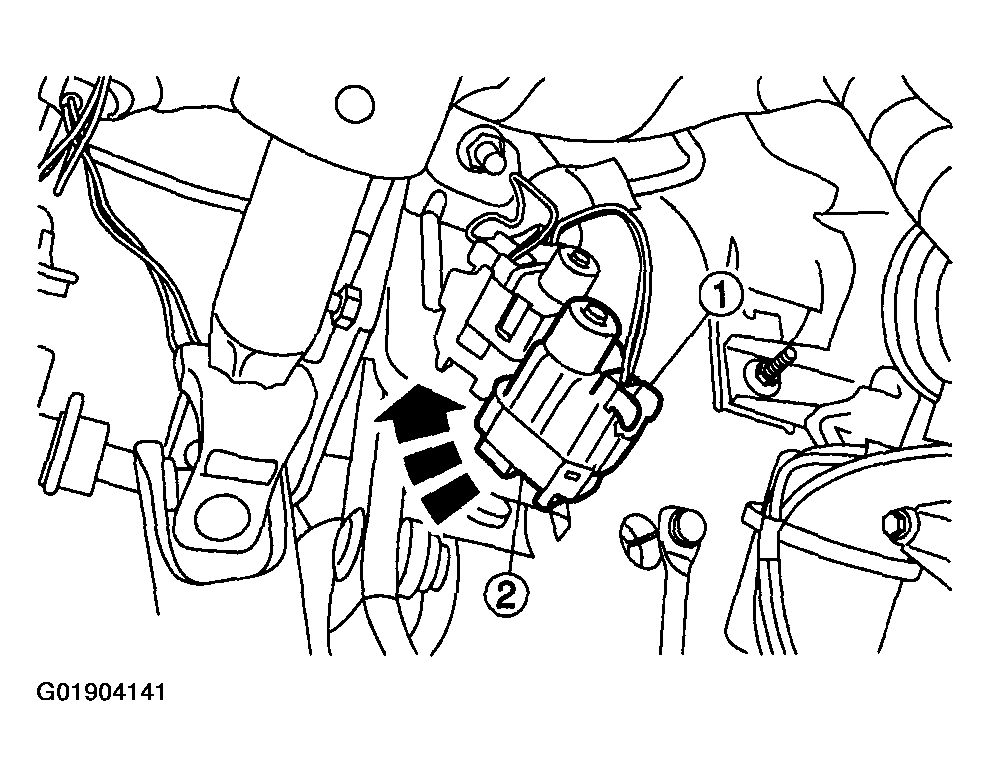

Fig 1: Removing Brake Pedal Position (BPP) Switch
G01904141Courtesy of MAZDA MOTORS CORP.
  1. Remove the brake pedal position (BPP) switch.
  1. Disconnect the electrical connector.
  2. Rotate clockwise and remove the BPP switch.
