Brake Pedal Position (BPP) Switch: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Initial installation of brake pedal position (BPP) switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

Fig 1: Rotating Lock Knob Counterclockwise To Stop

Courtesy of MAZDA MOTORS CORP.

To unlock, rotate the lock knob counterclockwise to the stop.
With the engine running, fully depress and hold the brake pedal.

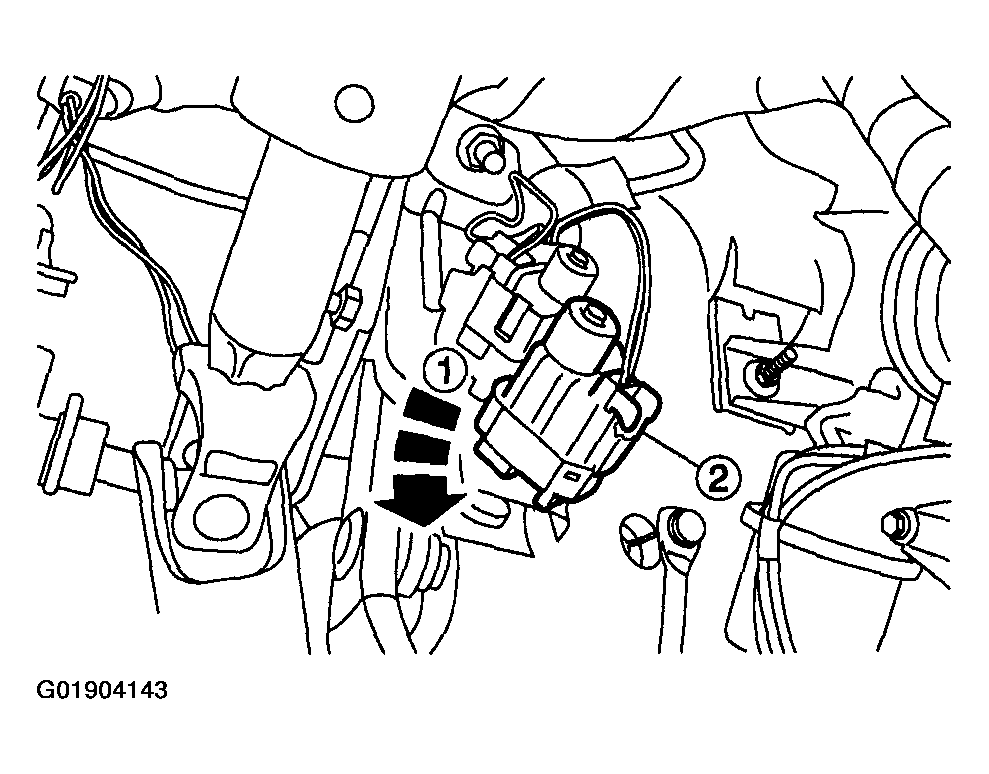

Fig 2: Installing Brake Pedal Position (BPP) Switch
Courtesy of MAZDA MOTORS CORP.
Install the brake pedal position (BPP) switch.
1. Position the BPP switch in the bracket and rotate counterclockwise.
2. Connect the electrical connector.
Slowly release the brake pedal.
