Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

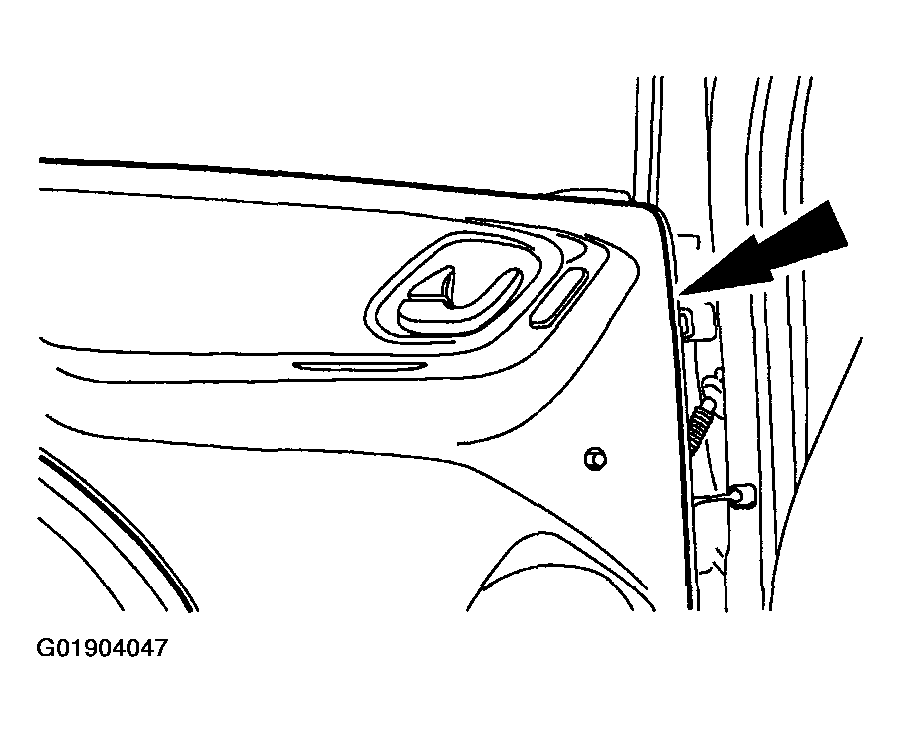

Fig 1: Removing Rear Door Latch Release Handle Bezel

Courtesy of MAZDA MOTORS CORP.

Remove the rear door latch release handle bezel.
1. Remove the screw.
2. Remove the rear door latch release handle bezel.

  Fig 2: Removing Door Handle Cup Screw
  Courtesy of MAZDA MOTORS CORP.
Remove the door handle cup screw.

Fig 3: Removing Rear Door Sail Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear door sail panel.

Fig 4: Removing Rear Door Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear door trim panel.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
