Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

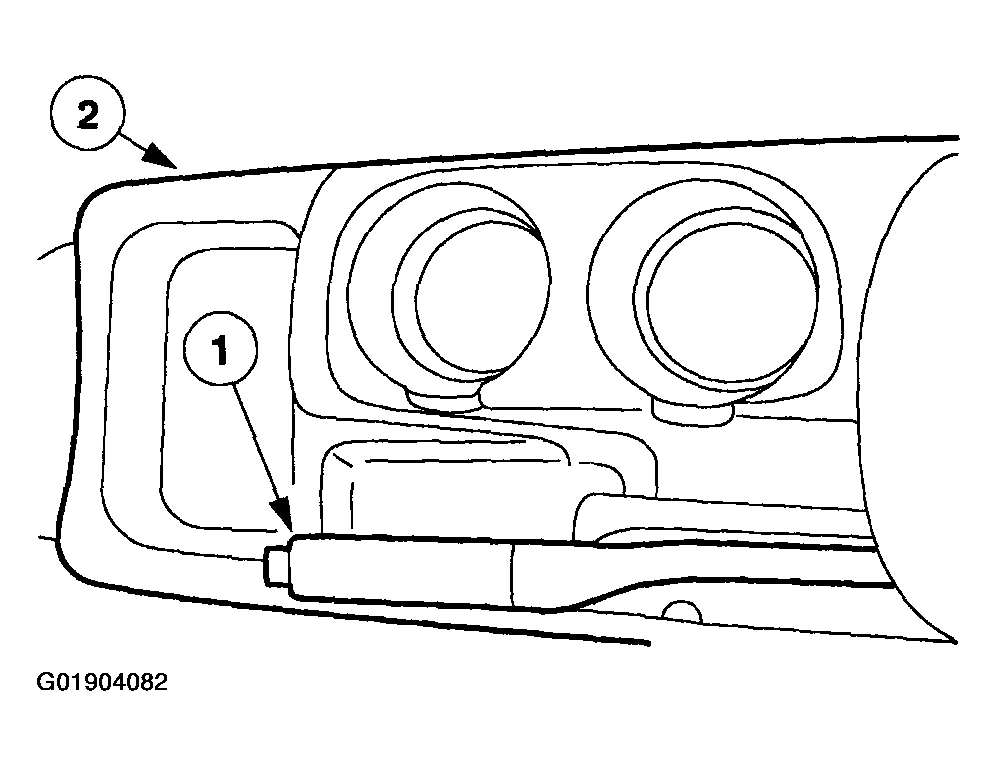

Fig 1: Removing Floor Console Finish Panel

Courtesy of MAZDA MOTORS CORP.

Remove the floor console finish panel.
1. Apply the parking brake.
2. Remove the floor console finish panel.

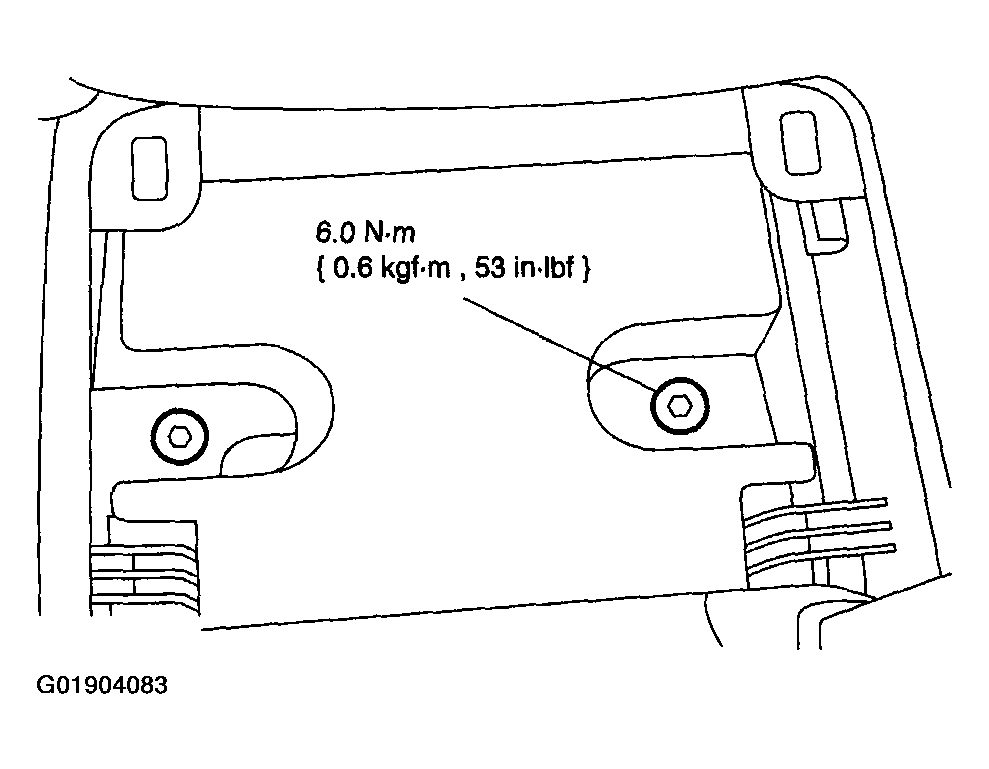

  Fig 2: Removing Floor Console Front Bolts
  Courtesy of MAZDA MOTORS CORP.
Remove the floor console front bolts.

Fig 3: Removing Floor Console
Courtesy of MAZDA MOTORS CORP.
Remove the floor console.
1. Remove the two rear bolts.
2. Remove the floor console.
To install, reverse the removal procedure.
