Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

LH side

If equipped with a power point on the LH quarter trim panel, disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
Both sides

Fig 1: Removing Safety Belt D-Ring Cover
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.
Remove the safety belt D-ring cover.

Fig 2: Removing Safety Belt D-Ring Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the safety belt D-ring bolt.

Fig 3: Removing Pin-Type Retainers And Liftgate Scuff Plate Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the pin-type retainers and the liftgate scuff plate trim panel.
Position the liftgate weatherstrip aside.

Fig 4: Removing Cargo Net Hold-Down
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the cargo net hold-down.

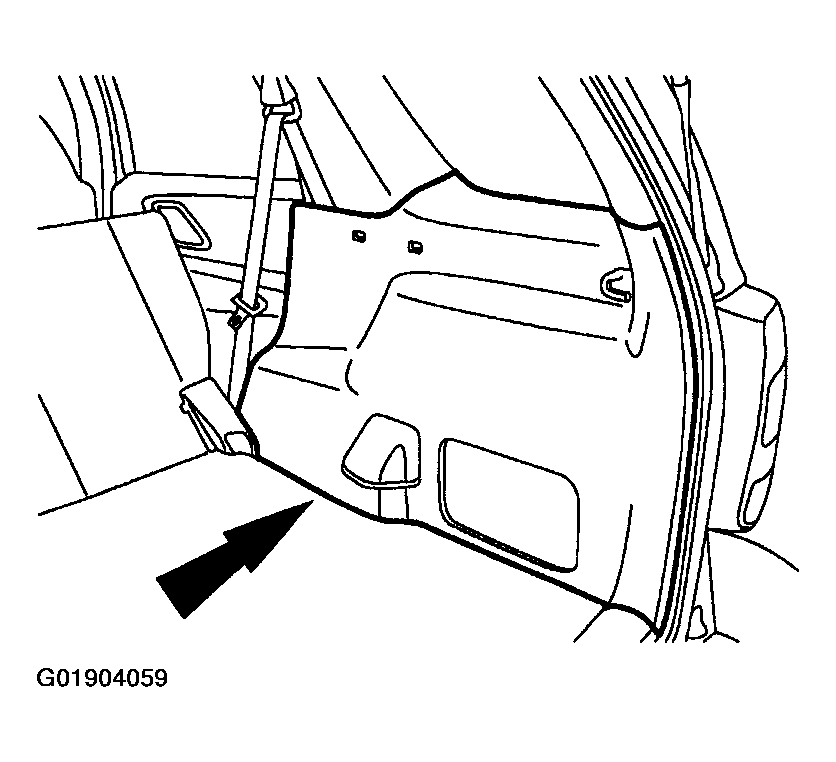

Fig 5: Removing Rear Quarter Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear quarter trim panel.
1. Insert a tape-wrapped screwdriver between the D-pillar trim panel and rear quarter trim panel.
2. Push the screwdriver in the direction of the arrow and remove the rear quarter trim panel.
Disconnect the accessory socket connector. (Left side)

Fig 6: Disconnecting Accessory Socket Connector (Left Side)
Courtesy of MAZDA MOTORS CORP.

Fig 7: Removing C-Pillar Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the C-pillar trim panel.
To install, reverse the removal procedure.
