Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. For additional information, refer to FRONT BUMPER COVER .

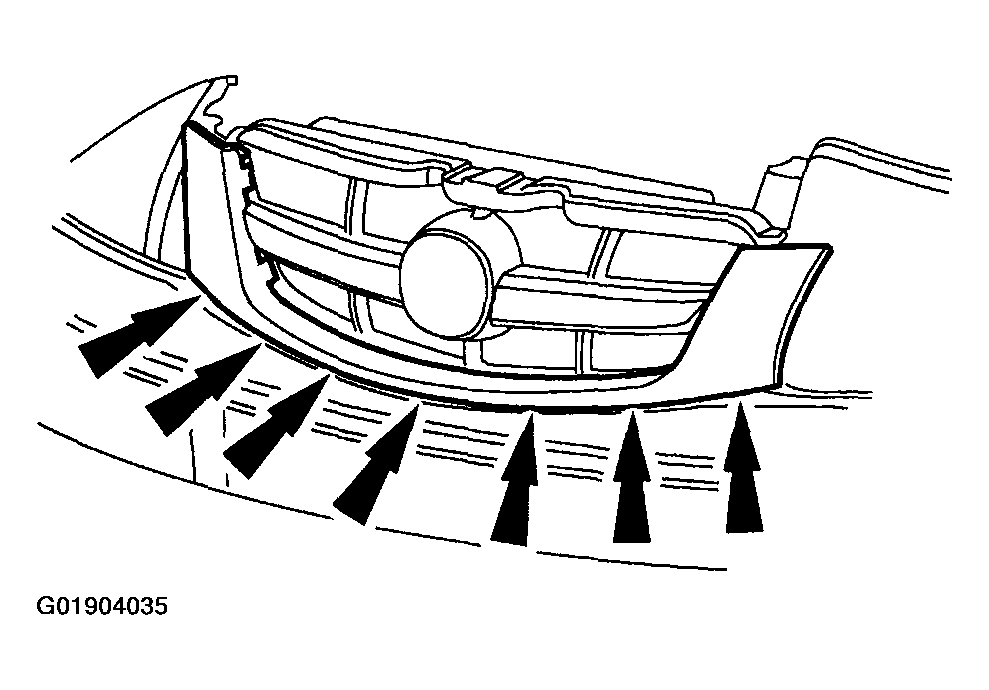

Fig 1: Releasing Clips And Removing Radiator Grille Opening Moulding
Courtesy of MAZDA MOTORS CORP.
Release the clips and remove the radiator grille opening molding.

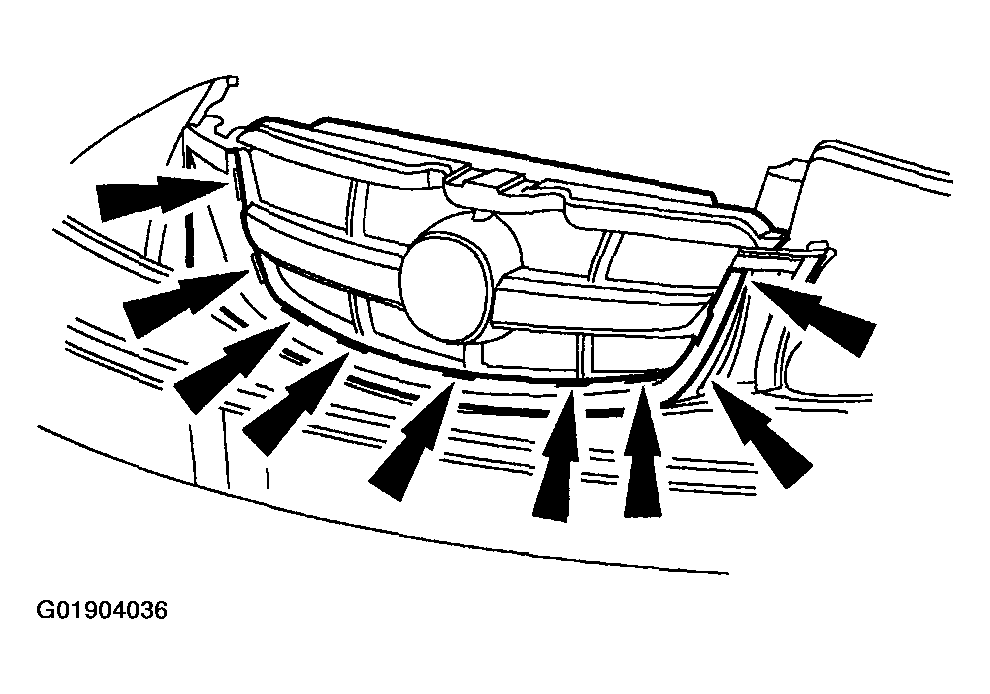

Fig 2: Releasing Clips And Removing Radiator Grille
Courtesy of MAZDA MOTORS CORP.
Release the clips and remove the radiator grille.
To install, reverse the removal procedure.
