Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. refer to FRONT DOOR TRIM PANEL .
  2. Position the water shield aside.

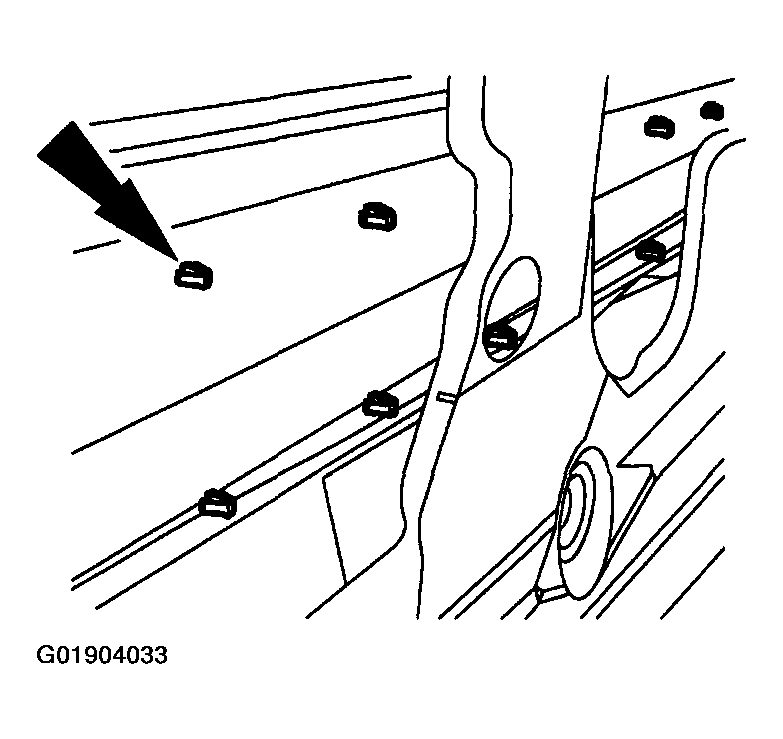

    Fig 1: Collapsing Door Moulding Retaining Clips
    G01904033Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The front door molding retainer clips must be collapsed from inside the door, failure to do so may result in damage to the vehicle.
    NOTE:
    • The front door molding retainer clips are one-time use only. New clips must be used during installation.
  3. Collapse the door molding retaining clips.
    Fig 2: Removing Door Moulding
    G01904034Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use a wedge type tool to add tension to assist in removal of door molding.
  4. Remove the front door molding.
    NOTE:
    • New door molding will snap into position when installed.
  5. To install, reverse the removal procedure.
