Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. refer to REAR DOOR TRIM PANEL .

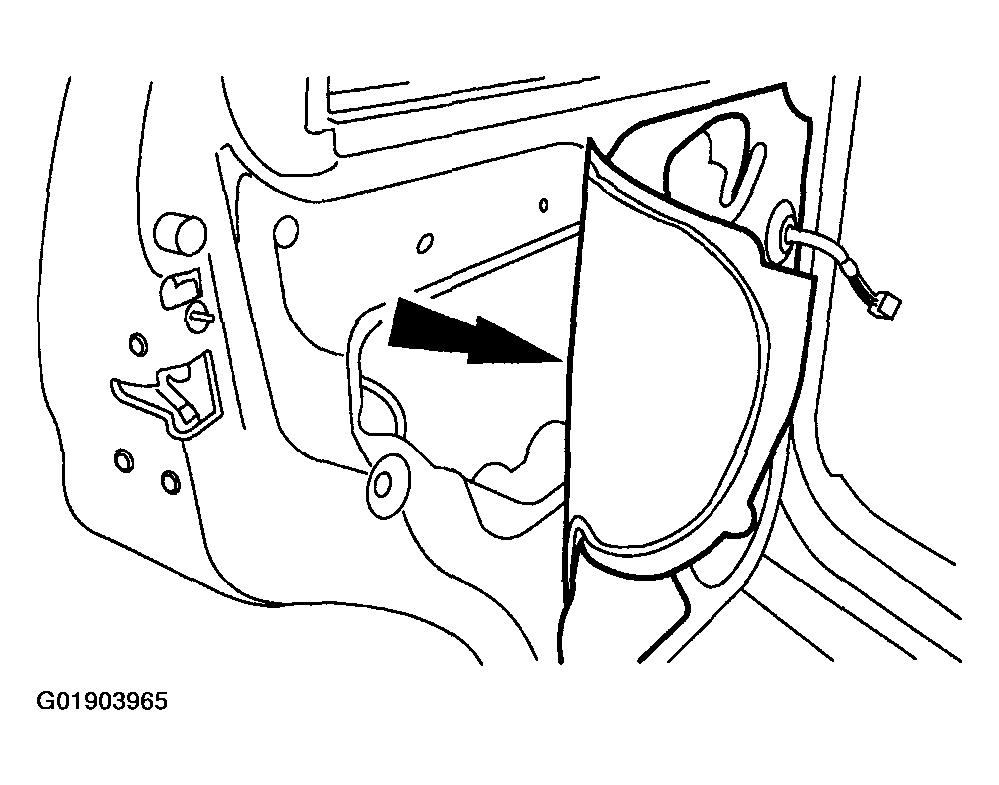

Fig 1: Positioning Water Shield
Courtesy of MAZDA MOTORS CORP.
Position the water shield aside.

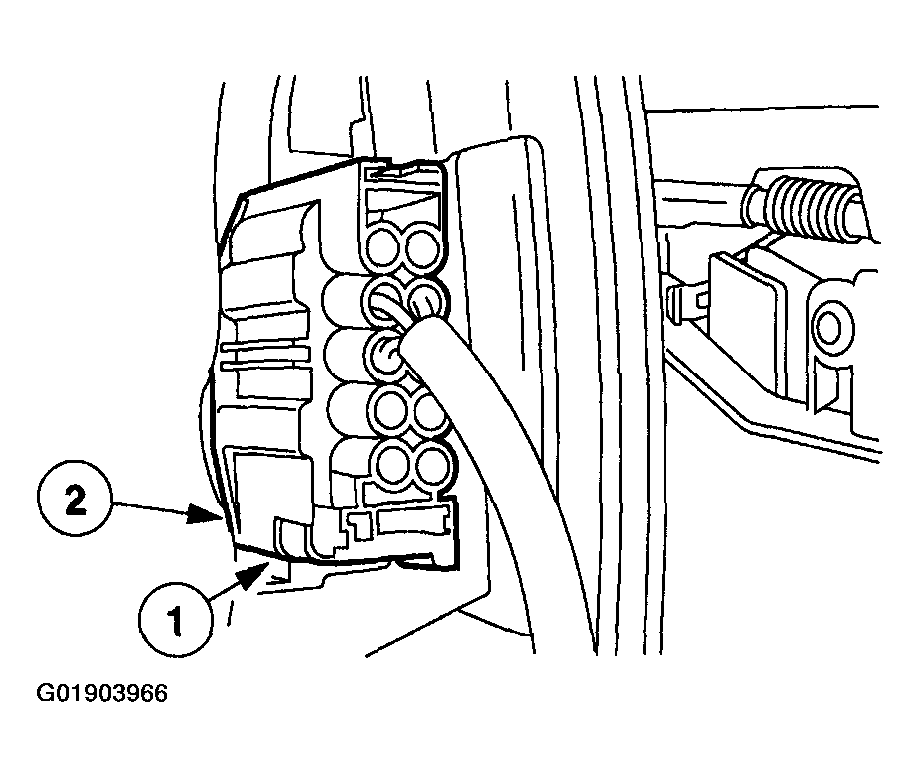

Fig 2: Disconnecting Door Latch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the door latch electrical connector.
1. Release the clip.
2. Disconnect the electrical connector.

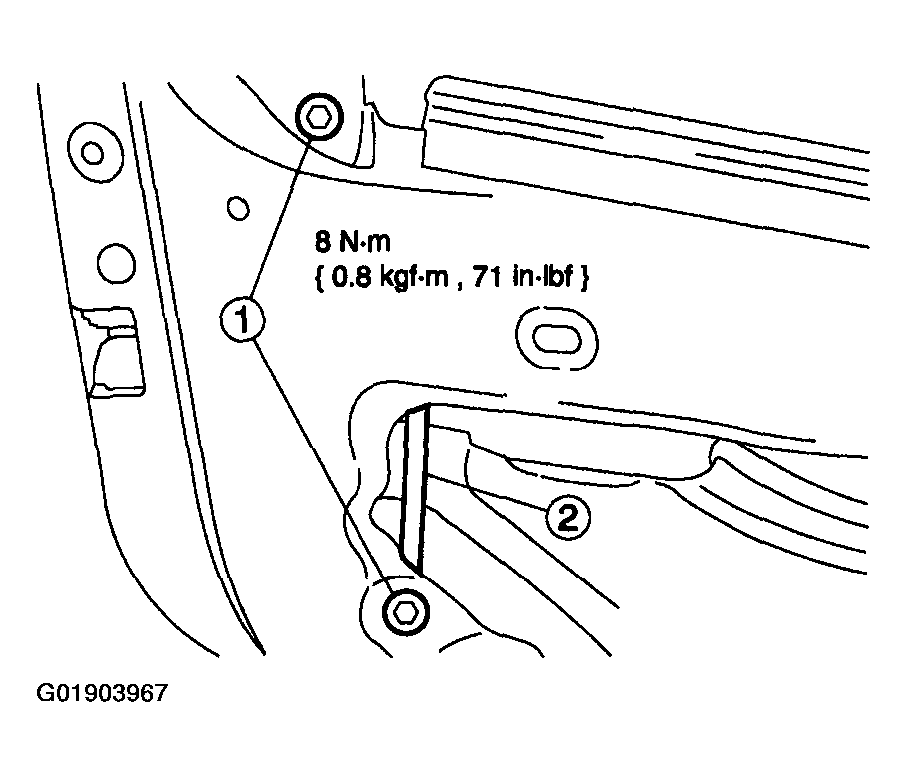

  Fig 3: Positioning Rear Door Glass Top Run
  Courtesy of MAZDA MOTORS CORP.
Position the rear door glass top run aside.
1. Remove the bolts.
2. Position the door glass top run aside.

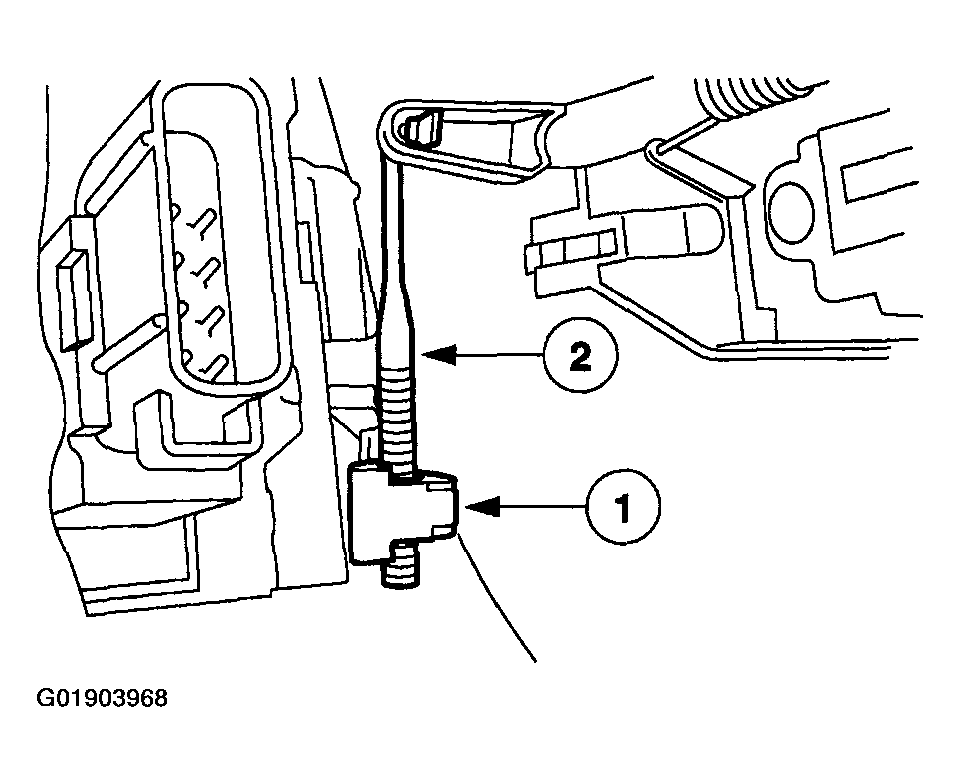

  Fig 4: Disconnecting Exterior Door Handle Actuating Rod
  Courtesy of MAZDA MOTORS CORP.
Disconnect the exterior door handle actuating rod.
1. Open the clip.
2. Disconnect the actuating rod.

  Fig 5: Removing Rear Door Latch Screws
  Courtesy of MAZDA MOTORS CORP.
Remove and discard the rear door latch screws.
Remove the rear door latch.

Fig 6: Disconnecting Interior Door Handle Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the interior door handle cable.
1. Release the cable conduit.
2. Disconnect the cable.
To install, reverse the removal procedure.
