Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

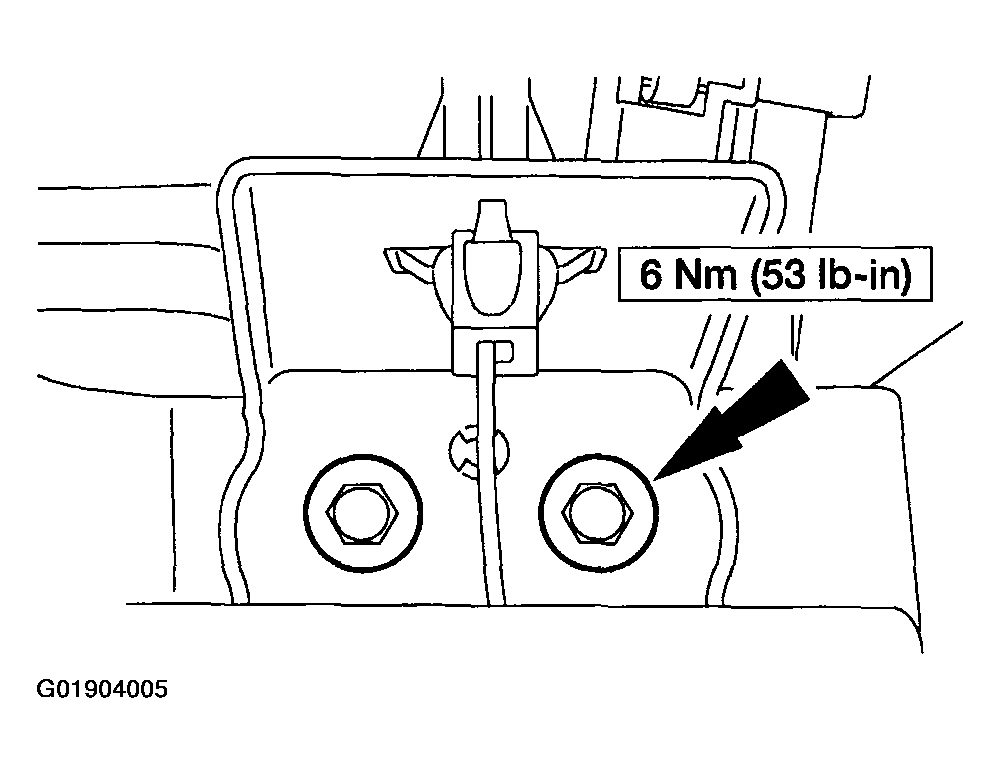

Fig 1: Removing Hood Latch Release Handle Bolts
G01904005Courtesy of MAZDA MOTORS CORP.
  1. Remove the hood latch release handle bolts.
  2. Remove the hood latch. For additional information, refer to HOOD LATCH  .

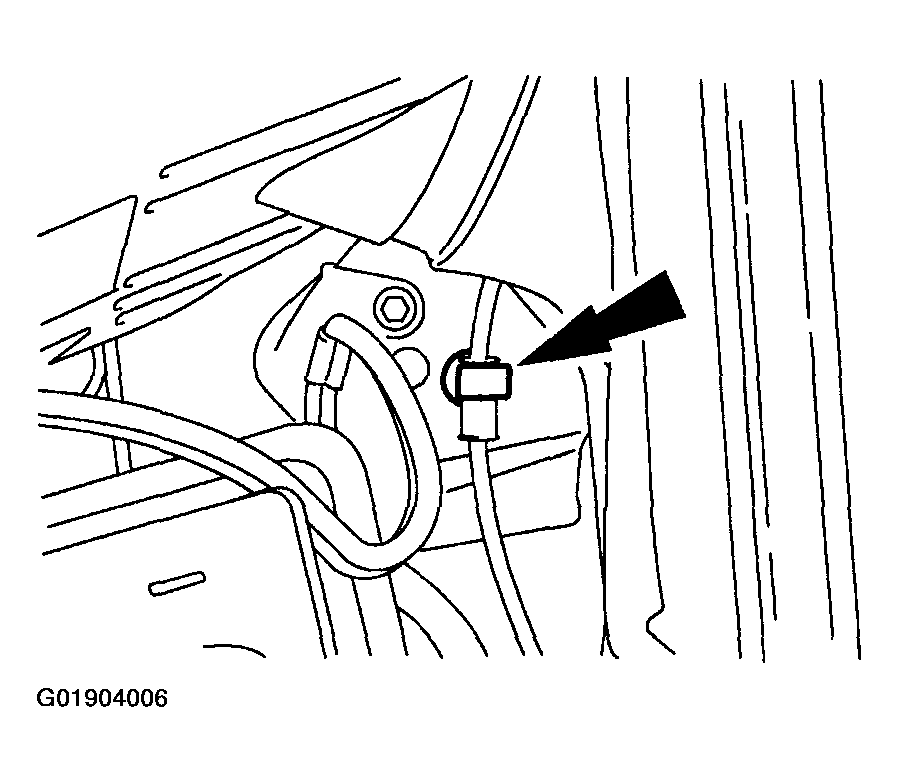

    Fig 2: Releasing Handle Cable Locators
    G01904006Courtesy of MAZDA MOTORS CORP.
  3. Remove the two hood latch release handle cable locators.
    NOTE:
    • The hood latch release handle cable must be pulled through the dash panel into the passenger compartment.
  4. Remove the hood latch release handle.
  5. To install, reverse the removal procedure.
