Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver-side B-pillar trim panel. For additional information, refer to B-PILLAR TRIM PANEL .
  2. Remove the fuel filler door latch. For additional information refer to DOOR LATCH - FUEL FILLER  .

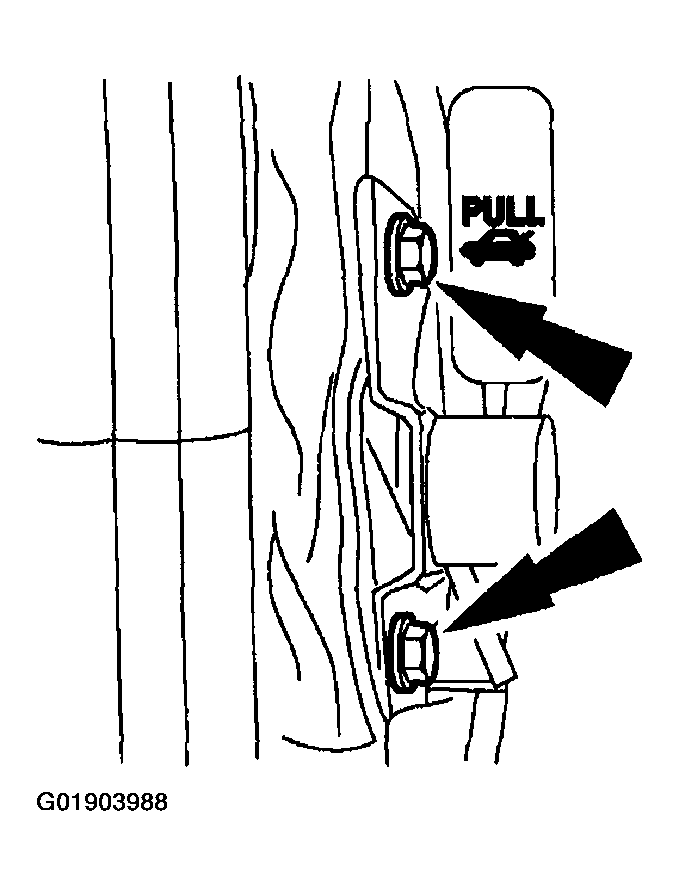

    Fig 1: Removing Fuel Filler Door
    G01903988Courtesy of MAZDA MOTORS CORP.
  3. Remove the fuel filler door release handle bolts.
    Fig 2: Disconnecting Fuel Filler Door
    G01903989Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the fuel filler door release handle cable.
    1. Release the cable conduit.
    2. Disconnect the cable.
  5. Remove the fuel filler door release handle and cable.
    1. Disengage the cable locators.
  6. To install, reverse the removal procedure.
