Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. refer to FRONT DOOR TRIM PANEL .
  2. Position the watershield aside.

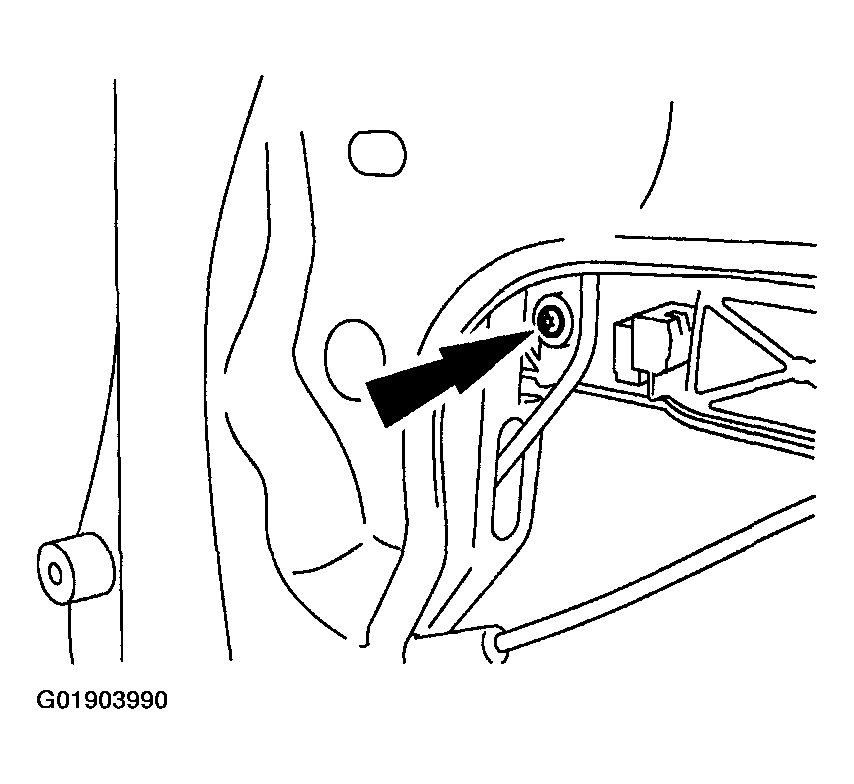

    Fig 1: Loosening Door Latch Remote Control Screw
    G01903990Courtesy of MAZDA MOTORS CORP.
  3. Loosen the door latch remote control screw.
    Fig 2: Removing Exterior Door Handle Cover
    G01903991Courtesy of MAZDA MOTORS CORP.
  4. Remove the exterior door handle cover.
    1. Pull the exterior door handle.
    2. The front of the cover must be released prior to removing.
      Fig 3: Removing Exterior Door Handle
      G01903992Courtesy of MAZDA MOTORS CORP.
  5. Remove the exterior door handle by sliding towards the rear of the vehicle.
    Fig 4: Removing Exterior Door Handle Seals
    G01903993Courtesy of MAZDA MOTORS CORP.
  6. Remove the exterior door handle seals.
  7. To install, reverse the removal procedure.
