Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

NOTE:

Make sure the window glass is in the raised position.

Remove the exterior front door latch. refer to FRONT DOOR LATCH .

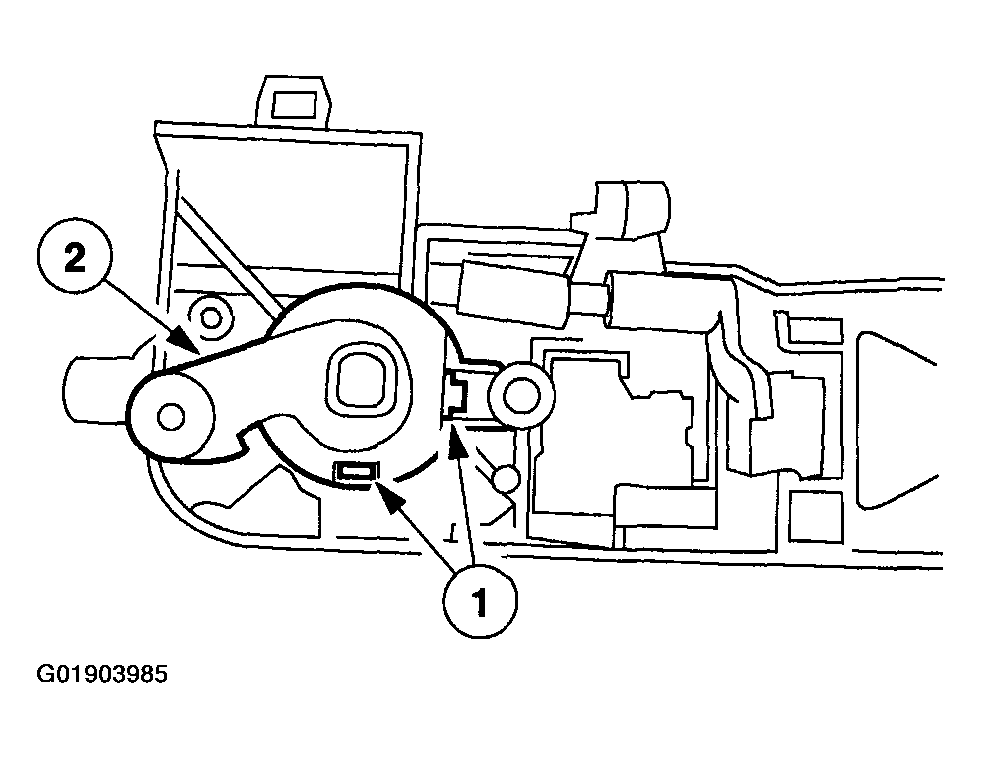

Fig 1: Removing Door Lock Cylinder
Courtesy of MAZDA MOTORS CORP.
Remove the door lock cylinder.
1. Release the clips.
2. Remove the lock cylinder.
To install, reverse the removal procedure.
